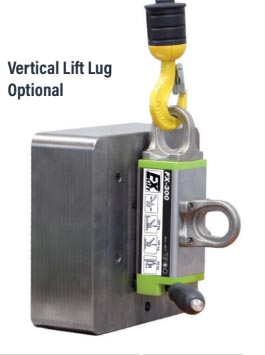

FX Universal Lifting Magnet

Features & Benefits

FX Universal Permanent Lifting Magnets for Flats and Round

The FX universal, On/Off permanent lift magnets are ideal for a variety of manufacturing applications
where you’re mostly lifting flat material, but occasionally need to lift rounds.

On/off, Rare-Earth Permanent Magnet
On/off handle only requires 90° rotation and locks at both on/off positions
Durable, recessed metal name plates, not stickers
Corrosion resistant, plated-magnet surface
Heat resistant up to 180°F (82°C)
3:1 Design Factor
2018 ASME B30.20 BTH-1 Design Category B, Service Class 3

Technical Specs + Show table

Part Number	WLL (lbs)	Overall Height (in.)	Overall Length (in.)	Magnet Height (in.)	Magnet Width (in.)	Magnet Length (in.)	Handle Length (in.)	Bail Thickness (in.)	Bail Height (in.)	Bail Width (in.)	Weight (lbs)
FX0330	330	4.9	6.3	2.3	2.5	4.75	5.3	0.4	1.6	1	8
FX0660	660	6.2	8	3	3.4	6.2	7.5	0.5	2	1.6	19
FX1320	1320	7.4	11.3	3.7	4.4	9.4	9	0.6	2.4	2	42
FX2200	2200	9.4	14.2	4.7	6	12	10.2	0.8	3	2.3	93
FX4400	4400	12.3	18.5	6.6	9	15.7	16.1	1	3.5	2.6	254
FX6600	6600	12.3	25.5	6.6	9	22.7	21	1	3.5	2.6	366

Working Load Limit (WLL) In Lbs (Kg) & *Max Sheet Length Due To Sag For Material Thickness For Single Magnet Use
Part Number	1/4" (6')	3/8" (8')	1/2" (8')	3/4" (8')	1" (10')	2" (10')	3" (10')	WLL RD	Min./Max. Dia. (in.)	Min. Th. (in.)	Vertical Part Flat WLL
FX0330	142	330	330	330	330	330	330	165	2-8	5/16	66
FX0660	355	507	580	660	660	660	660	330	2-12	1/12	132
FX1320	331	661	965	1320	1320	1320	1320	660	4-16	5/8	264
FX2200	NA	772	1160	1984	2200	2200	2200	1100	4-18	3/4	440
FX4400	NA	NA	965	2200	2646	4400	4400	2200	6-24	1-1/2	NA
FX6600	NA	NA	NA	3850	3968	6600	6600	3300	6-24	1-1/2	NA

Purchase Below

Part Number	Description	Brand	Weight	Price	Quantity	Total	Total weight
FX0330	FX Universal Lifting Magnet - 330 lbs. WLL	Industrial Magnetics Inc.	8	$552.00		$552.00	8
FX0660	FX Universal Lifting Magnet - 660 lbs. WLL	Industrial Magnetics Inc.	19	$880.00		$880.00	19
FX1320	FX Universal Lifting Magnet - 1,320 lbs. WLL	Industrial Magnetics Inc.	42	$1,415.00		$1,415.00	42
FX2200	FX Universal Lifting Magnet - 2,200 lbs. WLL	Industrial Magnetics Inc.	93	$2,380.00		$2,380.00	93
FX4400	FX Universal Lifting Magnet - 4,400 lbs. WLL	Industrial Magnetics Inc.	254	$4,470.00		$4,470.00	254
FX6600	FX Universal Lifting Magnet - 6,600 lbs. WLL	Industrial Magnetics Inc.	366	$7,240.00		$7,240.00	366

Purchase Below

FX Universal Lifting Magnet - 330 lbs. WLL

Code: FX0330

Brand: Industrial Magnetics Inc.

Weight: 8 lbs

Price: $552.00

Total: $552.00

Total weight: 8 lbs

FX Universal Lifting Magnet - 660 lbs. WLL

Code: FX0660

Brand: Industrial Magnetics Inc.

Weight: 19 lbs

Price: $880.00

Total: $880.00

Total weight: 19 lbs

FX Universal Lifting Magnet - 1,320 lbs. WLL

Code: FX1320

Brand: Industrial Magnetics Inc.

Weight: 42 lbs

Price: $1,415.00

Total: $1,415.00

Total weight: 42 lbs

FX Universal Lifting Magnet - 2,200 lbs. WLL

Code: FX2200

Brand: Industrial Magnetics Inc.

Weight: 93 lbs

Price: $2,380.00

Total: $2,380.00

Total weight: 93 lbs

FX Universal Lifting Magnet - 4,400 lbs. WLL

Code: FX4400

Brand: Industrial Magnetics Inc.

Weight: 254 lbs

Price: $4,470.00

Total: $4,470.00

Total weight: 254 lbs

FX Universal Lifting Magnet - 6,600 lbs. WLL

Code: FX6600

Brand: Industrial Magnetics Inc.

Weight: 366 lbs

Price: $7,240.00

Total: $7,240.00

Total weight: 366 lbs
