Features & Benefits
Quenched and Tempered Alloy Steel.At least 25% greater WLL than traditional G80 products.
Manufactured in accordance with EN 1677- 3 and ASME B30.26.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured. Design Factor 4:1.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Tempering temperature minimum 400°C
Magnaflux crack detection is performed 100% on each batch.
Built with ball bearing and enables full swivel feature under load.
Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| X-027N-07 | 1/4 - 5/16" Grade 100 Swivel Self Locking Hook w/ Ball Bearing | Yoke | 3 | $284.92 | $284.92 | 3 | ||
| X-027N-10 | 3/8" Grade 100 Swivel Self Locking Hook w/ Ball Bearing | Yoke | 4 | $341.53 | $341.53 | 4 | ||
| X-027N-13 | 1/2" Grade 100 Swivel Self Locking Hook w/ Ball Bearing | Yoke | 9 | $329.11 | $329.11 | 9 | ||
| X-027N-16 | 5/8" Grade 100 Swivel Self Locking Hook w/ Ball Bearing | Yoke | 15 | $891.13 | $891.13 | 15 | ||
| X-027N-20 | 3/4" Grade 100 Swivel Self Locking Hook w/ Ball Bearing | Yoke | 28 | $1,546.59 | $1,546.59 | 28 |
Purchase Below

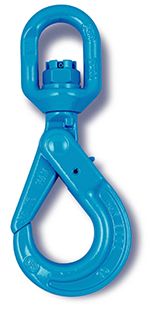

1/4 - 5/16" Grade 100 Swivel Self Locking Hook w/ Ball Bearing
Code:
X-027N-07
Brand:
Yoke
Weight:
3
lbs
Price:
$284.92
Total:
$284.92
Total weight:
3
lbs
3/8" Grade 100 Swivel Self Locking Hook w/ Ball Bearing
Code:
X-027N-10
Brand:
Yoke
Weight:
4
lbs
Price:
$341.53
Total:
$341.53
Total weight:
4
lbs
1/2" Grade 100 Swivel Self Locking Hook w/ Ball Bearing
Code:
X-027N-13
Brand:
Yoke
Weight:
9
lbs
Price:
$329.11
Total:
$329.11
Total weight:
9
lbs
5/8" Grade 100 Swivel Self Locking Hook w/ Ball Bearing
Code:
X-027N-16
Brand:
Yoke
Weight:
15
lbs
Price:
$891.13
Total:
$891.13
Total weight:
15
lbs
3/4" Grade 100 Swivel Self Locking Hook w/ Ball Bearing
Code:
X-027N-20
Brand:
Yoke
Weight:
28
lbs
Price:
$1,546.59
Total:
$1,546.59
Total weight:
28
lbs
