Snatch Blocks with Hook

Features & Benefits

Manufactured from the highest quality tensile steel.
Available in sizes from 2 tonnes to 20 tonnes.
Designed with a safety factor of 4 : 1.
Available for wire rope sizes 5/16" to 1-1/8".
Supplied with model number, wire diameter and working load limit.
Supplied with test certs and batch numbers for ease of traceability.
Manufactured with bronze bushings and grease fitting for ease of use and extended sheave life.
Custom blocks designs upon request.

Technical Specs

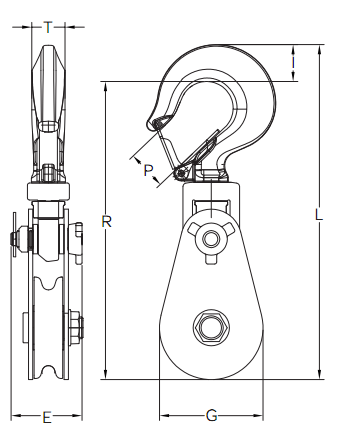

Part Number	Working Load Limit (tons)	Sheave Size (in.)	Wire Rope (in.)	Dimensions (in.)	Weight (lbs)
T	E	G	I	R	L	P
8-502-02	2	3	5/16-3/8	0.69	2.52	2.95	1	8.8	9.9	1	5.1
8-502-04	4	4.5	3/8-1/2	1.13	3.11	4.24	1.88	12.62	14	1.25	13
8-502-08	8	6	5/8-3/4	1.5	4.09	4.1	2.13	16.8	19.2	2	28.2
8-502-0808	8	8	5/8-3/4	1.5	4.09	8.7	2.13	19.8	22.2	2	41.4

Purchase Below

Part Number	Reference #	Description	Brand	Weight	Price	Quantity	Total	Total weight
8-502-02	6Y-2T3	2 ton 3" Sheave Snatch Block with Hook	Yoke	5	$181.85		$181.85	5
8-502-04	6Y-4T4	4 ton 4.5" Snatch Block with Hook	Yoke	13	$357.51		$357.51	13
8-502-08	6Y-8T6SW	8 ton 6" Snatch Block with Hook	Yoke	28	$697.23		$697.23	28
8-502-0808	6Y-8T8	8 ton 8" Snatch Block with Hook	Yoke	41	$750.16		$750.16	41

Purchase Below

2 ton 3" Sheave Snatch Block with Hook

Code: 8-502-02

Reference: 6Y-2T3

Brand: Yoke

Weight: 5 lbs

Price: $181.85

Total: $181.85

Total weight: 5 lbs

4 ton 4.5" Snatch Block with Hook

Code: 8-502-04

Reference: 6Y-4T4

Brand: Yoke

Weight: 13 lbs

Price: $357.51

Total: $357.51

Total weight: 13 lbs

8 ton 6" Snatch Block with Hook

Code: 8-502-08

Reference: 6Y-8T6SW

Brand: Yoke

Weight: 28 lbs

Price: $697.23

Total: $697.23

Total weight: 28 lbs

8 ton 8" Snatch Block with Hook

Code: 8-502-0808

Reference: 6Y-8T8

Brand: Yoke

Weight: 41 lbs

Price: $750.16

Total: $750.16

Total weight: 41 lbs
