Features & Benefits

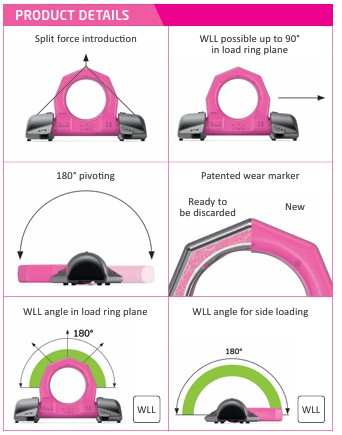

- Distribution of the load force due to the 2 point fixing, hence an optimized force introduction to the work piece.
- Forged, suspension ring acc. to EN 1677-1, electromagnetic crack detected, pink powder coated. Suspension ring can also be ordered single.
For instance VRL 4. This lifting point fulfils the requirements of the appropriate safety authorities (German Employers Insurance Association). - Stamped.
- Lays flat when not in use.
- Low profile.
- Rounded well shaped design.
- High dynamic and static strength.
- The welding blocks are forged out of the ideal weldable steel ST52-3N (S355J2+N) and the nominal WLL is embossed.
- Patented distance lugs assist in achieving the correct root weld (approx. 3 mm).
- The weld arrangement (continuous HY weld) fulfils the requirements of DIN 18800 i.e. the closed weld avoids corrosion and is thus suitable for outdoor use.
- *Not all sizes are stocked in the US.
Loadable in any direction
All RUD - CAD files available upon request.
DXF 2d CAD File
IGES 3D CAD File
STEP 3D CAD File

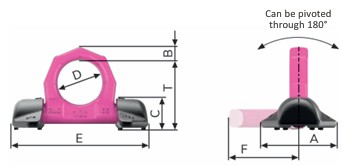

Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| 7992488 | VRBS 4 Load Ring for welding | RUD | 2 | $103.00 | $103.00 | 2 | ||
| 7992489 | VRBS 6.7 Load Ring for welding | RUD | 4 | $183.00 | $183.00 | 4 | ||
| 7992490 | VRBS 10 Load Ring for welding | RUD | 6 | $293.00 | $293.00 | 6 | ||
| 7992491 | VRBS 16 Load Ring for welding | RUD | 15 | $576.00 | $576.00 | 15 | ||
| 60267 | VRBS 31.5 Load Ring for welding | RUD | 42 | $1,429.00 | $1,429.00 | 42 |
Purchase Below
VRBS 4 Load Ring for welding
Code:
7992488
Brand:
RUD
Weight:
2
lbs
Price:
$103.00
Total:
$103.00
Total weight:
2
lbs
VRBS 6.7 Load Ring for welding
Code:
7992489
Brand:
RUD
Weight:
4
lbs
Price:
$183.00
Total:
$183.00
Total weight:
4
lbs
VRBS 10 Load Ring for welding
Code:
7992490
Brand:
RUD
Weight:
6
lbs
Price:
$293.00
Total:
$293.00
Total weight:
6
lbs
VRBS 16 Load Ring for welding
Code:
7992491
Brand:
RUD
Weight:
15
lbs
Price:
$576.00
Total:
$576.00
Total weight:
15
lbs
VRBS 31.5 Load Ring for welding
Code:
60267
Brand:
RUD
Weight:
42
lbs
Price:
$1,429.00
Total:
$1,429.00
Total weight:
42
lbs
