Features & Benefits

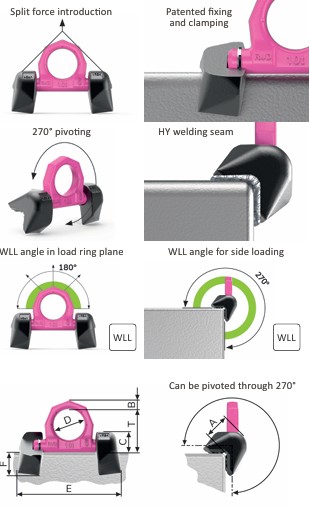

- Welded on the corner, it reduces the number of lifting points, because instead of welding lifting points either on the top or on the side this type can be centrally located.
- Forged, suspension ring acc. to EN 1677-1, electromagnetic crack detected, pink powder coated.
- Loadable in any direction.
- Safety factor 4 : 1.
- Favorable force introduction due to the two point attachment
- Low profile and 270 pivoting.
- Welding blocks and ring body fix connected by special radial clamp spring
- Easy adjustment of the ring body
- Ring body stays in position
- Easy painting
- No loose parts
- No rattling

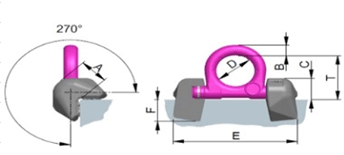

- Process reliability at welding: dimension E is assured
- *Not all sizes are stocked in the US.
Loadable in any direction
All RUD - CAD files available upon request.
DXF 2d CAD File
IGES 3D CAD File
STEP 3D CAD File
Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| 7902149 | VRBK-FIX 4t Load ring welded | RUD | 2 | $196.00 | $196.00 | 2 |
Purchase Below
VRBK-FIX 4t Load ring welded
Code:
7902149
Brand:
RUD
Weight:
2
lbs
Price:
$196.00
Total:
$196.00
Total weight:
2
lbs
