Features & Benefits
An enhancement of the well-established LBS with an up to 50% increment of the WLL!

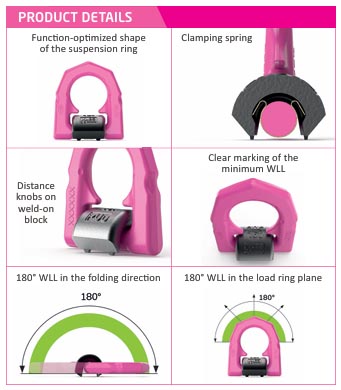

The new VLBS ring bracket is forged out of the high strength material CrNiMo with 2 patented inner supporting lugs,
facilitates easy hooking - in of suspensions and offers better protection of the clamping springs.
Given an inclined or a non - parallel work piece, the support effect is extremely improved.
The pink coated ring bracket is manufactured and tested according to EN 1677-1.
The welding block is forged out of a good welding material 1.0577+N (St 52-3).
A protected spring keeps the ring bracket in every required position without tipping and it also reduces vibration induced noise.
The parts captively held together.
The new VLBS ring bracket is forged out of the high strength material CrNiMo with 2 patented inner supporting lugs,
facilitates easy hooking - in of suspensions and offers better protection of the clamping springs.
Given an inclined or a non - parallel work piece, the support effect is extremely improved.
The pink coated ring bracket is manufactured and tested according to EN 1677-1.
The welding block is forged out of a good welding material 1.0577+N (St 52-3).
A protected spring keeps the ring bracket in every required position without tipping and it also reduces vibration induced noise.
The parts captively held together.
- The new VLBS forged out of high tensile CrNiMo
- steel with an innovative design offers many advantages.
- up to 50% higher WLL.
- the two protective supporting lugs (inside the load ring) a repatented and they improve the connection with the attachment in addition to the protected clamping spring.
- The support effect is exceptional, especially if the ring is side loaded or the lifting point is welded on an uneven work piece.
- Pink powder coating, a VIP recognition attribute and a heat indicator. - Easy and quick to weld assembly.
- Compact and shapely design.
- High dynamic and static strength.
- Forged suspension ring acc. to EN 1677, grade 80, electro magnetic crack detected, pink powder coated; meets the requirementsof the appropriate safety authorities.
- The welding block has been forged of material 1.0570 (St 52-3) and clearly stamped with the permissible WLL.
- The patented distance lugs assist in achieving the correct root weld.
- Important: By the special weld design (continuous HV), the requirements of DIN 18800 are fulfilled, i.e., a closed weld avoids corrosion and thus suitable for outdoor use.
- Distinctive features for type LBS-U: A protected spring Maintains the load ring in every required position. The parts are assembled in such a way that they remain captive.
- The spring reduces vibration induced noise.
Loadable in any direction
All RUD - CAD files available upon request.
DXF 2d CAD File
IGES 3D CAD File
STEP 3D CAD File
Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| 7993035 | VLBS 1.5 Load Ring | RUD | 0.80 | $91.00 | $91.00 | 0.80 | ||
| 7994830 | VLBS 2.5 Load Ring | RUD | 1 | $89.00 | $89.00 | 1 | ||
| 7993036 | VLBS 4 Load Ring | RUD | 2 | $106.00 | $106.00 | 2 | ||
| 7993037 | VLBS 6.7 Load Ring | RUD | 4 | $206.00 | $206.00 | 4 | ||
| 7993040 | VLBS 10 Load Ring | RUD | 6 | $281.00 | $281.00 | 6 | ||
| 7993041 | VLBS 16 Load Ring | RUD | 15 | $591.00 | $591.00 | 15 |
Purchase Below
VLBS 1.5 Load Ring
Code:
7993035
Brand:
RUD
Weight:
0.80
lb
Price:
$91.00
Total:
$91.00
Total weight:
0.80
lb
VLBS 2.5 Load Ring
Code:
7994830
Brand:
RUD
Weight:
1
lb
Price:
$89.00
Total:
$89.00
Total weight:
1
lb
VLBS 4 Load Ring
Code:
7993036
Brand:
RUD
Weight:
2
lbs
Price:
$106.00
Total:
$106.00
Total weight:
2
lbs
VLBS 6.7 Load Ring
Code:
7993037
Brand:
RUD
Weight:
4
lbs
Price:
$206.00
Total:
$206.00
Total weight:
4
lbs
VLBS 10 Load Ring
Code:
7993040
Brand:
RUD
Weight:
6
lbs
Price:
$281.00
Total:
$281.00
Total weight:
6
lbs
VLBS 16 Load Ring
Code:
7993041
Brand:
RUD
Weight:
15
lbs
Price:
$591.00
Total:
$591.00
Total weight:
15
lbs
