Features & Benefits

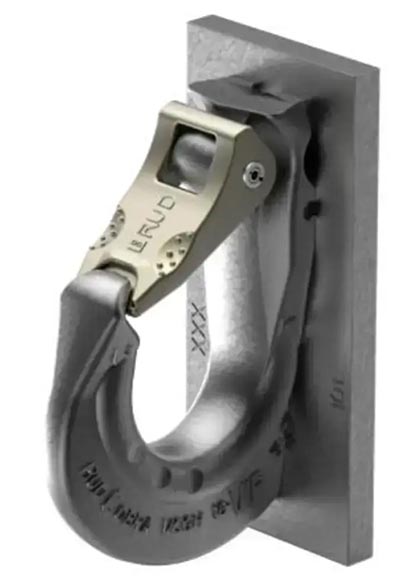

Excavator hook used as a lifting point for wire rope slings, round slings and for lifting means with an oval suspension ring or eye.
With a stable hook securing mechanism protected by a ridge, comparable to that of the VCGH .
Thickened tip of the hook to avoid misuse, thus hooking into smaller openings is impossible.
Patented wear marks on the hook. Pay attention to the permissible load direction.
With a phosphated surface. Pay attention to the correct thickness of the weld. Welding should only be carried out by qualified persons according to ISO 9606-1.
With a stable hook securing mechanism protected by a ridge, comparable to that of the VCGH .
Thickened tip of the hook to avoid misuse, thus hooking into smaller openings is impossible.
Patented wear marks on the hook. Pay attention to the permissible load direction.
With a phosphated surface. Pay attention to the correct thickness of the weld. Welding should only be carried out by qualified persons according to ISO 9606-1.
Excavator hook used as a lifting point for spreader bars, wire rope slings, round slings,
lifting means with an oval suspension ring or eye.
- Extremely robust forged safety latch.
- Non protruding tip of the hook.
- Light weight construction.
- To be preferably welded in the direction of pull
- Enlarged hook tip avoids improper use.
- Measurable overload indicator.
- Phosphate treated surface.
- *Not all sizes are stocked in the US.
Loadable in any direction
All RUD - CAD files available upon request.
DXF 2d CAD File
IGES 3D CAD File
STEP 3D CAD File

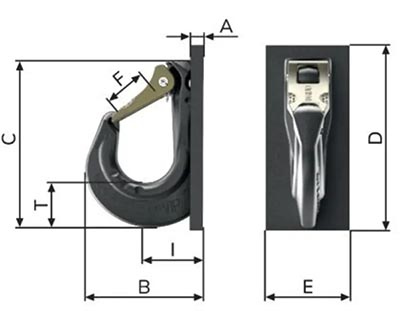

Technical Specs
