Features & Benefits

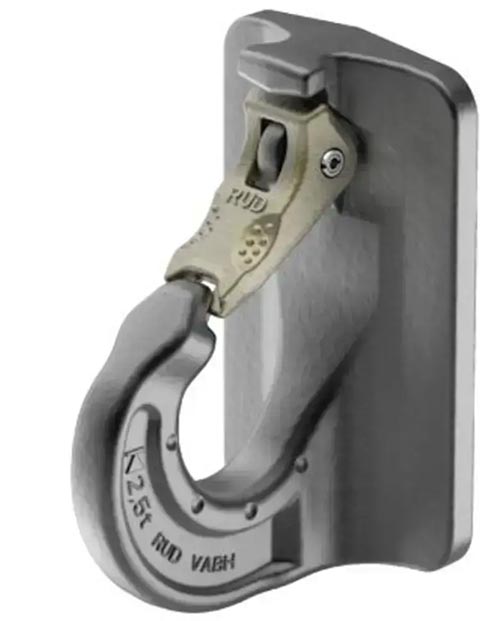

Excavator hook used as a lifting point for wire rope slings, round slings and for lifting means with an oval suspension ring or eye.
With a stable hook securing mechanism protected by a ridge, comparable to that of the VCGH.
Thickened tip of the hook to avoid misuse, thus hooking into smaller openings is impossible.
Patented wear marks on the hook. Pay attention to the permissible load direction. With a phosphated surface.
Pay attention to the correct thickness of the weld.
Welding should only be carried out by qualified persons according to ISO 9606-1. Material 23MnNiCrMo52
Excavator hook used as a lifting point for spreader bars, wire rope slings, round slings, lifting means with an oval suspension ring or eye.
With a stable hook securing mechanism protected by a ridge, comparable to that of the VCGH.
Thickened tip of the hook to avoid misuse, thus hooking into smaller openings is impossible.
Patented wear marks on the hook. Pay attention to the permissible load direction. With a phosphated surface.
Pay attention to the correct thickness of the weld.
Welding should only be carried out by qualified persons according to ISO 9606-1. Material 23MnNiCrMo52
Excavator hook used as a lifting point for spreader bars, wire rope slings, round slings, lifting means with an oval suspension ring or eye.

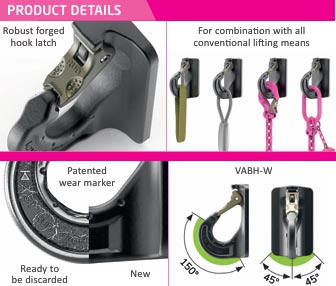

- Extremely robust safety latch protected by a ridge.
- Non protruding tip of the hook.
- Surface treatment: phosphated.
- Light weight construction.
- To be preferably welded in the direction of pull.
- Enlarged hook tip avoids improper use.
- Patented wear marks on the hook.
- Measurable overload indicator.
- Operating Range: 150
- Permissible Loading: 45 in lateral pull direction
- *Not all sizes are stocked in the US.
Loadable in any direction
All RUD - CAD files available upon request.
DXF 2d CAD File
IGES 3D CAD File
STEP 3D CAD File
