Features & Benefits

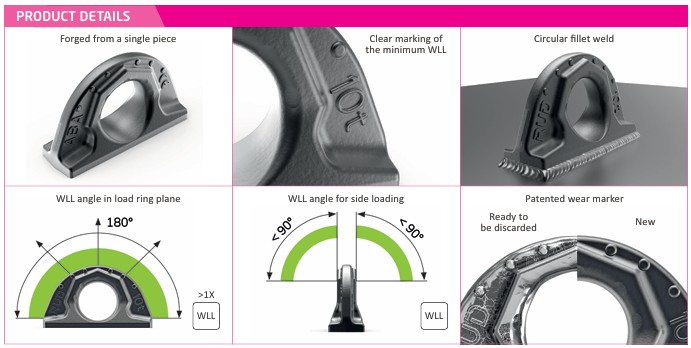

- Loadable from any direction
- Safety factor 4:1
- Quentched and tempered part, thereby wear resistant
- Patented wear markings inside and outside
- Smaller circular fillet weld seam
- Surface phosphated
- No sharp edges, shape is careful to lifting means
- If component is used as lashing point, stated WLL at the component can be doubled
Loadable in any direction
All RUD - CAD files available upon request.
DXF 2d CAD File
IGES 3D CAD File
STEP 3D CAD File

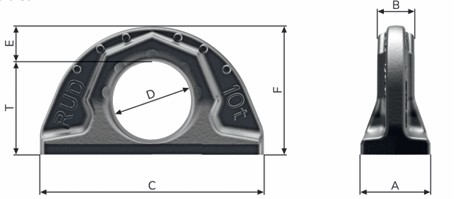

Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| 7900352 | W-ABA 1.6t Lifting Points for Welding | RUD | 1 | $67.00 | $67.00 | 1 | ||
| 7900353 | W-ABA 3.2t Lifting Points for Welding | RUD | 3 | $104.00 | $104.00 | 3 | ||
| 7900354 | W-ABA 5t Lifting Points for Welding | RUD | 5 | $162.00 | $162.00 | 5 | ||
| 7900355 | W-ABA 10t Lifting Points for Welding | RUD | 12 | $286.00 | $286.00 | 12 | ||
| 7902174 | W-ABA 20t Lifting Points for Welding | RUD | 24 | $1,061.00 | $1,061.00 | 24 | ||
| 7902175 | W-ABA 31.5t Lifting Points for Welding | RUD | 40 | $1,448.00 | $1,448.00 | 40 |
Purchase Below
W-ABA 1.6t Lifting Points for Welding
Code:
7900352
Brand:
RUD
Weight:
1
lb
Price:
$67.00
Total:
$67.00
Total weight:
1
lb
W-ABA 3.2t Lifting Points for Welding
Code:
7900353
Brand:
RUD
Weight:
3
lbs
Price:
$104.00
Total:
$104.00
Total weight:
3
lbs
W-ABA 5t Lifting Points for Welding
Code:
7900354
Brand:
RUD
Weight:
5
lbs
Price:
$162.00
Total:
$162.00
Total weight:
5
lbs
W-ABA 10t Lifting Points for Welding
Code:
7900355
Brand:
RUD
Weight:
12
lbs
Price:
$286.00
Total:
$286.00
Total weight:
12
lbs
W-ABA 20t Lifting Points for Welding
Code:
7902174
Brand:
RUD
Weight:
24
lbs
Price:
$1,061.00
Total:
$1,061.00
Total weight:
24
lbs
W-ABA 31.5t Lifting Points for Welding
Code:
7902175
Brand:
RUD
Weight:
40
lbs
Price:
$1,448.00
Total:
$1,448.00
Total weight:
40
lbs
