Features & Benefits

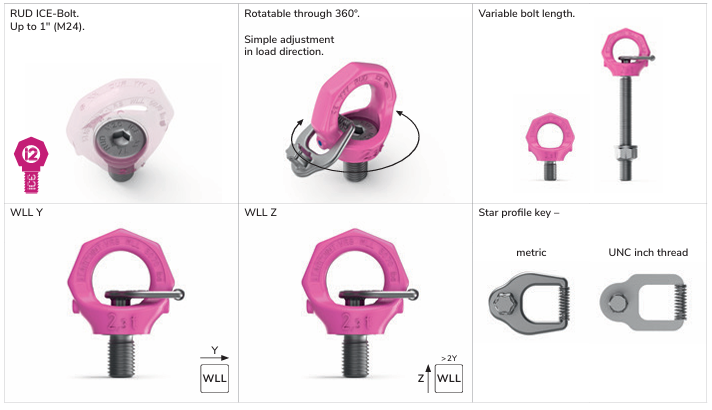

- Shape: Star shaped - clear distinction from standard eye bolt DIN 580.
- Colour: Striking fluorescent pink powder coating.
- Marking: Clear indication of WLL (in metric tonnes and lbs) for side load direction F (not allowed with standard eye bolt).
- Forged material 1.6541, alloy quenched and tempered, 100% electro magnetic crack detected according to EN 1677-4.
- Loadable in any direction: Safety factor 4:1
- Work piece material must conform to minimum steel quality S235JR (1.0037).
- Counter sink of tapped hole = nominal thread diameter.
- Provide plane seat of the special hexagon bolt.
- VRS must be able to rotate by 360 in bolted condition.
- Adjust to load direction before loading.
- Design information available on CD-ROM.
- Component protected by patents: Europe patent EP 654 611.US patent 5690457.
- Specifically engineered Grade 10.9 captive hexagon socket screw.
- Type VRS-F including the locking device /STAR KEY (wrench). For fitting the STARPOINT is delivered with an integrated installation tool.
Just engage tool into the hexagon socket screw - tighten by hand disengage tool. STARPOINT then adjustable 360.
Type VRS without installation tool. For assembly just use a hexagon socket screw key. - *Not all sizes are stocked in the US.
Loadable in any direction
All RUD - CAD files available upon request.
DXF 2d CAD File
IGES 3D CAD File
STEP 3D CAD File

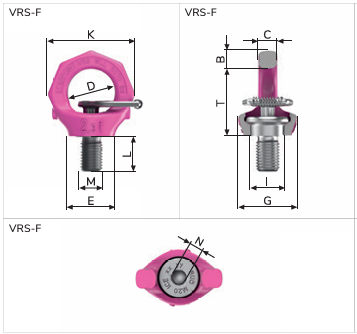

Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| 7900906 | VRS-F-M 6 VRS-F Starpoint Swivel Eye Bolt | RUD | 0.15 | $126.00 | $126.00 | 0.15 | ||
| 8500911 | VRS-F-M 8 VRS-F Starpoint Swivel Eye Bolt | RUD | 0.26 | $119.00 | $119.00 | 0.26 | ||
| 7104029 | VRS-F-M10 VRS-F Starpoint Swivel Eye Bolt | RUD | 0.26 | $119.00 | $119.00 | 0.26 | ||
| 7101313 | VRS-F-M12 VRS-F Starpoint Swivel Eye Bolt | RUD | 0.44 | $132.00 | $132.00 | 0.44 | ||
| 7999330 | VRS-F-M14 VRS-F Starpoint Swivel Eye Bolt | RUD | 0.46 | $160.00 | $160.00 | 0.46 | ||
| 7101314 | VRS-F-M16 VRS-F Starpoint Swivel Eye Bolt | RUD | 0.66 | $156.00 | $156.00 | 0.66 | ||
| 7101315 | VRS-F-M20 VRS-F Starpoint Swivel Eye Bolt | RUD | 1 | $202.00 | $202.00 | 1 | ||
| 7992197 | VRS-F-M22 VRS-F Starpoint Swivel Eye Bolt | RUD | 110 | $233.00 | $233.00 | 110 | ||
| 7101316 | VRS-F-M24 VRS-F Starpoint Swivel Eye Bolt | RUD | 2 | $276.00 | $276.00 | 2 | ||
| 7101317 | VRS-F-M30 VRS-F Starpoint Swivel Eye Bolt | RUD | 4 | $393.00 | $393.00 | 4 | ||
| 7984201 | VRS-F-M36 VRS-F Starpoint Swivel Eye Bolt | RUD | 8 | $629.00 | $629.00 | 8 | ||
| 7984202 | VRS-M42 VRS-F Starpoint Swivel Eye Bolt | RUD | 11 | $877.00 | $877.00 | 11 | ||
| 7984203 | VRS-M48 VRS-F Starpoint Swivel Eye Bolt | RUD | 15 | $1,089.00 | $1,089.00 | 15 | ||
| 7999105 | VRS-F 1/4”- 20UNC VRS-F Starpoint Swivel Eye Bolt | RUD | 0.13 | $142.00 | $142.00 | 0.13 | ||
| 7999106 | VRS-F 5/16”-18UNC VRS-F Starpoint Swivel Eye Bolt | RUD | 0.25 | $131.00 | $131.00 | 0.25 | ||
| 7104480 | VRS-F 3/8“-16UNC VRS-F Starpoint Swivel Eye Bolt | RUD | 0.26 | $119.00 | $119.00 | 0.26 | ||
| 7104481 | VRS-F 1/2“-13UNC VRS-F Starpoint Swivel Eye Bolt | RUD | 0.45 | $132.00 | $132.00 | 0.45 | ||
| 7104482 | VRS-F 5/8“-11UNC VRS-F Starpoint Swivel Eye Bolt | RUD | 0.75 | $156.00 | $156.00 | 0.75 | ||
| 7104483 | VRS-F 3/4“-10UNC VRS-F Starpoint Swivel Eye Bolt | RUD | 1 | $223.00 | $223.00 | 1 | ||
| 7104484 | VRS-F 7/8“-9UNC VRS-F Starpoint Swivel Eye Bolt | RUD | 1 | $223.00 | $223.00 | 1 | ||
| 7104485 | VRS-F 1“- 8UNC VRS-F Starpoint Swivel Eye Bolt | RUD | 2 | $276.00 | $276.00 | 2 | ||
| 7903383 | VRS-F 1 1/8"-7 VRS-F Starpoint Swivel Eye Bolt | RUD | 2 | $315.00 | $315.00 | 2 | ||
| 7104486 | VRS-F 1 1/4“-7UNC VRS-F Starpoint Swivel Eye Bolt | RUD | 4 | $393.00 | $393.00 | 4 | ||
| 7104487 | VRS-F 1 1/2“-6UNC VRS-F Starpoint Swivel Eye Bolt | RUD | 8 | $684.00 | $684.00 | 8 | ||
| 7104488 | VRS-F 1 3/4“-5UNC VRS-F Starpoint Swivel Eye Bolt | RUD | 12 | $834.00 | $834.00 | 12 | ||
| 7104489 | VRS-F 2“- 4.5UNC VRS-F Starpoint Swivel Eye Bolt | RUD | 18 | $1,154.00 | $1,154.00 | 18 |
