Features & Benefits
- The body of the STARPOINT nut must be turnable 360 in bolted condition.Adjust in pull direction before attaching the sling means.
- A plane bolting surface has to be assured. The nut thread must be engaged to 100% with the bolt thread.
- The thread pin mounted must allow a perfect seat of the surface of the eye nut to the bolting surface.

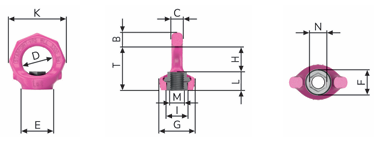

- Sizes of VRM - see drawing VRS-StarPoint Size "L" corresponds with the minimum length of the bolt thread.
- In case of flipping fixtures dies and molds, under full load, we recommend to use our double ball bearing power point collection.
- The given WLL is only valid in connection with threaded bolts of at least quality class 10.9.
- Star shaped design. A clear distinction from the DIN 582 eye nut.
- Color : A striking fluorescent pink powder coating.
- Identification : Clear WLL indication for the most unfavorable load direction F (not permissible for DIN 582).
- *Not all sizes are stocked in the US.
Loadable in any direction
All RUD - CAD files available upon request.
DXF 2d CAD File
IGES 3D CAD File
STEP 3D CAD File
All types in special thread lengths available.
Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| 7992989 | VRM-M8 VRM-M Starpoint Swivel Eye Nut | RUD | 0.22 | $126.00 | $126.00 | 0.22 | ||
| 7990312 | VRM-M12 VRM-M Starpoint Swivel Eye Nut | RUD | 0.44 | $159.00 | $159.00 | 0.44 | ||
| 7990314 | VRM-M16 VRM-M Starpoint Swivel Eye Nut | RUD | 0.66 | $204.00 | $204.00 | 0.66 | ||
| 7990315 | VRM-M20 VRM-M Starpoint Swivel Eye Nut | RUD | 1 | $232.00 | $232.00 | 1 | ||
| 7990316 | VRM-M24 VRM-M Starpoint Swivel Eye Nut | RUD | 2 | $288.00 | $288.00 | 2 | ||
| 7993008 | VRM-M30 VRM-M Starpoint Swivel Eye Nut | RUD | 3 | $429.16 | $429.16 | 3 |
Purchase Below
VRM-M8 VRM-M Starpoint Swivel Eye Nut
Code:
7992989
Brand:
RUD
Weight:
0.22
lb
Price:
$126.00
Total:
$126.00
Total weight:
0.22
lb
VRM-M12 VRM-M Starpoint Swivel Eye Nut
Code:
7990312
Brand:
RUD
Weight:
0.44
lb
Price:
$159.00
Total:
$159.00
Total weight:
0.44
lb
VRM-M16 VRM-M Starpoint Swivel Eye Nut
Code:
7990314
Brand:
RUD
Weight:
0.66
lb
Price:
$204.00
Total:
$204.00
Total weight:
0.66
lb
VRM-M20 VRM-M Starpoint Swivel Eye Nut
Code:
7990315
Brand:
RUD
Weight:
1
lb
Price:
$232.00
Total:
$232.00
Total weight:
1
lb
VRM-M24 VRM-M Starpoint Swivel Eye Nut
Code:
7990316
Brand:
RUD
Weight:
2
lbs
Price:
$288.00
Total:
$288.00
Total weight:
2
lbs
VRM-M30 VRM-M Starpoint Swivel Eye Nut
Code:
7993008
Brand:
RUD
Weight:
3
lbs
Price:
$429.16
Total:
$429.16
Total weight:
3
lbs
