Features & Benefits
- Relief Lugs with VRBG 10 and 16, the connecting bolts protect against bending- and shearing loads. This ensures additional safety
- Patented relief lugs. With RBG 8, VRBG 10 and 16, the connecting bolts protect against bending- and shearing loads. This ensures additional safety.
- Smaller bolt and a low profile due to the pivoting ring.

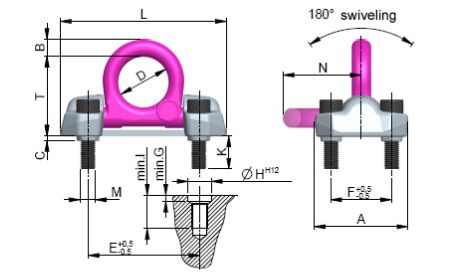

- Scribing and drilling acc. to tolerance range of VRBG.
- Check tightness of bolts at regular intervals.
- Favourable load force introduction and distribution.
- For description of the ring, refer to VRBS
- Supplied inner hexagon bolts are 100% crack detected!
- Workpiece material at least 1.0037 (St 37-2) S235JR
- *Not all sizes are stocked in the US.
Loadable in any direction
All RUD - CAD files available upon request.
DXF 2d CAD File
IGES 3D CAD File
STEP 3D CAD File
All types in special thread lengths available.
