Features & Benefits
With a fully captive but easy to demount 100% crack detected hexagon head cap bolt.
Load ring is stowable and pivots in all directions.
The load ring must be flexible and adjusted to the load direction before being loaded.
Ensure that there is no contact between the ring and the edges of the work piece.
Avoid swiveling under full load.
A single threaded hole or a through hole is necessary. A very small construction.
Work piece material, at least 1.0037 (St 37). For light metals, nonferrous heavy metals and grey cast iron,
the thread type allocation must be done in such a way that, the WLL of the thread type fulfils the requirements of the respective work piece.
Make sure the bolting surface (N) is plane.
Load ring is stowable and pivots in all directions.
The load ring must be flexible and adjusted to the load direction before being loaded.
Ensure that there is no contact between the ring and the edges of the work piece.
Avoid swiveling under full load.
A single threaded hole or a through hole is necessary. A very small construction.
Work piece material, at least 1.0037 (St 37). For light metals, nonferrous heavy metals and grey cast iron,
the thread type allocation must be done in such a way that, the WLL of the thread type fulfils the requirements of the respective work piece.
Make sure the bolting surface (N) is plane.
Also available in STAINLESS- See below

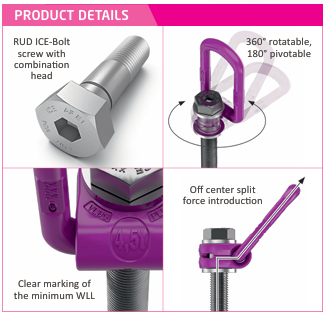

- VLBG-Z Load Ring will turn 360, adjustable in pull direction.
- Load ring foldable, full WLL in any load direction, surface pink powder coated.
- RUD Universal bolts and nuts for VLBG-Z - 100% crack detected - !
- The hex-head-bolt is suitable for internal and external wrench mounting for types with metric threads.
- Surface protection: CORRUD - DT - at least 20 times better corrosion protection than zinc plating (except for the spot face) after length shortening.
- Thread over whole bolting length "H".
- Bolt is held captive in the body. Replace only with the same quality class bolt.
- Clear identification at the bolt head: RUD, thread size, quality class.
- The load ring must be installed perpendicular to the work piece. The work piece must be flat, providing complete contact for the load ring bushing.
- Load ring has to be adjusted in pull direction, free to move, and must not support on edges.
- Use acc. to user instructions and by trained persons.
- The lifting attachment must be free to move when attached to the load ring!
- Regular inspections should be carried out by a competent person.
- Load should not be turned during lifting.

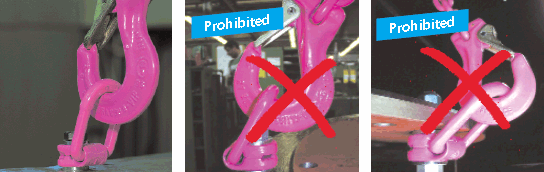

- Ring must not touch the work piece!
- *Not all sizes are stocked in the US.

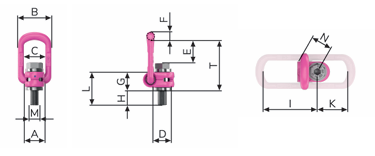

Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| 8502349 | VLBG-Z 1t 1/2"-13 UNC | RUD | 0.70 | $281.00 | $281.00 | 0.70 | ||
| 8502350 | VLBG-Z 1.5t 5/8"-11 UNC | RUD | 1 | $321.00 | $321.00 | 1 | ||
| 8502351 | VLBG-Z 2.5t 3/4"-10 UNC | RUD | 3 | $364.00 | $364.00 | 3 | ||
| 8502352 | VLBG-Z 2.5t 7/8"-9 UNC | RUD | 3 | $361.00 | $361.00 | 3 | ||
| 8502353 | VLBG-Z 4t 1"-8 UNC | RUD | 3 | $402.00 | $402.00 | 3 | ||
| 8503187 | VLBG-Z 5t 1-1/4"-7 UNC | RUD | 7 | $605.00 | $605.00 | 7 | ||
| 8504257 | VLBG-Z 8t 1 1/2" - 6 UNC | RUD | 14 | $1,221.00 | $1,221.00 | 14 | ||
| 8504258 | VLBG-Z 20t 2" 4.5 UNC | RUD | 26 | $1,827.00 | $1,827.00 | 26 |
Purchase Below
VLBG-Z 1t 1/2"-13 UNC
Code:
8502349
Brand:
RUD
Weight:
0.70
lb
Price:
$281.00
Total:
$281.00
Total weight:
0.70
lb
VLBG-Z 1.5t 5/8"-11 UNC
Code:
8502350
Brand:
RUD
Weight:
1
lb
Price:
$321.00
Total:
$321.00
Total weight:
1
lb
VLBG-Z 2.5t 3/4"-10 UNC
Code:
8502351
Brand:
RUD
Weight:
3
lbs
Price:
$364.00
Total:
$364.00
Total weight:
3
lbs
VLBG-Z 2.5t 7/8"-9 UNC
Code:
8502352
Brand:
RUD
Weight:
3
lbs
Price:
$361.00
Total:
$361.00
Total weight:
3
lbs
VLBG-Z 4t 1"-8 UNC
Code:
8502353
Brand:
RUD
Weight:
3
lbs
Price:
$402.00
Total:
$402.00
Total weight:
3
lbs
VLBG-Z 5t 1-1/4"-7 UNC
Code:
8503187
Brand:
RUD
Weight:
7
lbs
Price:
$605.00
Total:
$605.00
Total weight:
7
lbs
VLBG-Z 8t 1 1/2" - 6 UNC
Code:
8504257
Brand:
RUD
Weight:
14
lbs
Price:
$1,221.00
Total:
$1,221.00
Total weight:
14
lbs
VLBG-Z 20t 2" 4.5 UNC
Code:
8504258
Brand:
RUD
Weight:
26
lbs
Price:
$1,827.00
Total:
$1,827.00
Total weight:
26
lbs
