Features & Benefits
Stainless - 50% more than DIN with no directional restrictions!

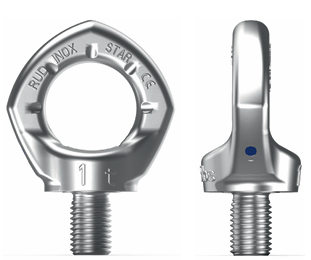

- Pentagonal shape - significantly different to the DIN 580 eyebolt.
- Turns through 360. Can be set in the direction of the load.
- Clear statement of rated load F1 for the unfavourable load range. 4-fold safety against breakage.
- Forged eye body.
- Material of eye body and screw: 1.4462, duplex steel (high durability in sea water and in environments with high chlorine ion concentrations.
- 100% crack-tested
- Captive mounted bolt.
- Patented wear marks on the eye body.
- Tighten hand-tight when mounting with hexagonal wrenchor adapter piece. Do not use an extension.
- The INOX-STAR must be able to be turned through 360 when screwed in.
- Set in the direction of force before loading.
- Component protected under patent law: European patent EP 654611.
- *Not all sizes are stocked in the US.
Loadable in any direction
All RUD - CAD files available upon request.
DXF 2d CAD File
IGES 3D CAD File
STEP 3D CAD File
All types in special thread lengths available.

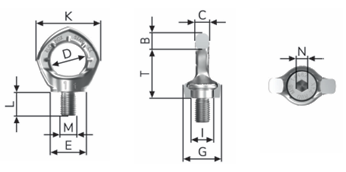

Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| 7993835 | INOX-STAR M12 EYEBOLT | RUD | 0.42 | $237.00 | $237.00 | 0.42 | ||
| 7993836 | INOX-STAR M16 EYEBOLT | RUD | 0.77 | $288.00 | $288.00 | 0.77 | ||
| 7993837 | INOX-STAR M20 EYEBOLT | RUD | 1 | $363.00 | $363.00 | 1 |
Purchase Below
INOX-STAR M12 EYEBOLT
Code:
7993835
Brand:
RUD
Weight:
0.42
lb
Price:
$237.00
Total:
$237.00
Total weight:
0.42
lb
INOX-STAR M16 EYEBOLT
Code:
7993836
Brand:
RUD
Weight:
0.77
lb
Price:
$288.00
Total:
$288.00
Total weight:
0.77
lb
INOX-STAR M20 EYEBOLT
Code:
7993837
Brand:
RUD
Weight:
1
lb
Price:
$363.00
Total:
$363.00
Total weight:
1
lb
