Features & Benefits
Non-Locking Type

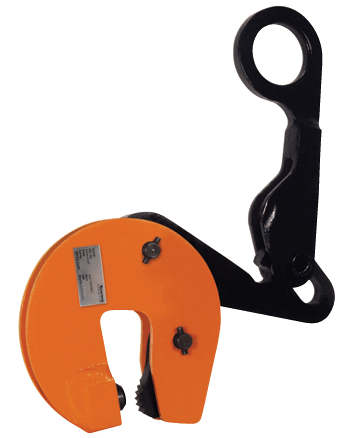

Both the Model AST and ASTL were developed primarily for lifting, turning and stacking light weight beams and structural shapes while a constant tension is applied to the lifting shackle. The horizontal shackle permits a beam to be lifted with the web in a near horizontal position by placing the clamp on the load with the shackle positioned over the web, and between the flanges. With a beam lying in a horizontal position, and the clamp placed with the shackle over hanging the flange, the beam can be lifted, turned 90 degrees, and raised in a vertical position. The Model ASTL includes all of the feature of the Model AST plus a linkage which permits the tool to be removed remotely by setting the load down with the sling slack, then lifting the crane hook.
- Developed for lifting, turning & stacking lightweight shapes
- Constant tension is to be applied to the shackle when lifting loads
- Position shackle over the web, between flanges for lifting beams & shapes increasing load control
- Linkage permits remote removal by setting the load down with the sling slack, then lifting the crane hook
- Beams & shapes can be lifted, turned 90 degrees & raised in a vertical position
Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| ASTL-01.50-A | 1-1/2 ton WLL Model ASTL Non-Locking | J.C. Renfroe | 24 | $1,299.00 | $1,299.00 | 24 |
Purchase Below
1-1/2 ton WLL Model ASTL Non-Locking
Code:
ASTL-01.50-A
Brand:
J.C. Renfroe
Weight:
24
lbs
Price:
$1,299.00
Total:
$1,299.00
Total weight:
24
lbs
