Features & Benefits
Locking, Screw Type

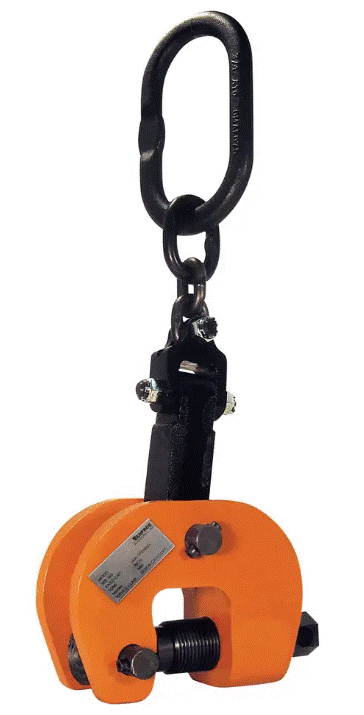

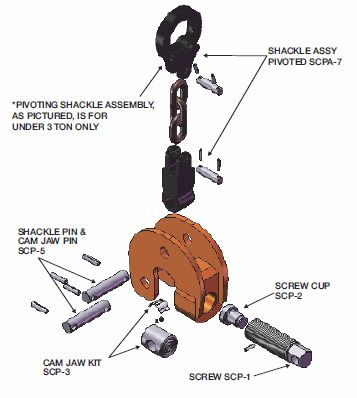

The SCPA clamp is capable of handling steel plate from horizontal to vertical to horizontal through a 180 degree arc and may be used for handling plate at rolling and forming machines. These clamps feature a spring loaded pivoting cam jaw that "cams in" when a load is applied to the lifting shackle. Clamp is capable of handling plate horizontally when used in pairs or sets of pairs, or in a tripod arrangement. *Pivoting shackle assembly, as shown, is available on capacities of 3 tons and larger.
- Developed to handle plate at rolling & forming machines
- Single plate handling from horizontal to vertical to horizontal through a 180 degree arc
- Features spring loaded pivoting jaw to engage when a load is applied
- Can be used in pairs, sets of pairs or tripod arrangement
*Call 866-392-2829 for availability and pricing
Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| SCPA-00.50-A | 1/2 ton - Plate Thickness 0-3/4" Model SCPA Lifting Clamp | J.C. Renfroe | 8 | $1,082.00 | $1,082.00 | 8 | ||
| SCPA-01.50-A | 1 1/2 ton - Plate Thickness 0-1 1/4" Model SCPA Lifting Clamp | J.C. Renfroe | 15 | $1,279.00 | $1,279.00 | 15 | ||
| SCPA-03.00-A | 3 ton - Plate Thickness 0-2" Model SCPA Lifting Clamp | J.C. Renfroe | 24 | $1,593.00 | $1,593.00 | 24 | ||
| SCPA-06.00-A | 6 ton - Plate Thickness 0-2 1/2" Model SCPA Lifting Clamp | J.C. Renfroe | 57 | $2,266.00 | $2,266.00 | 57 | ||
| SCPA-10.00-A | 10 ton - Plate Thickness 0-3" Model SCPA Lifting Clamp | J.C. Renfroe | 134 | $8,752.00 | $8,752.00 | 134 |
Purchase Below
1/2 ton - Plate Thickness 0-3/4" Model SCPA Lifting Clamp
Code:
SCPA-00.50-A
Brand:
J.C. Renfroe
Weight:
8
lbs
Price:
$1,082.00
Total:
$1,082.00
Total weight:
8
lbs
1 1/2 ton - Plate Thickness 0-1 1/4" Model SCPA Lifting Clamp
Code:
SCPA-01.50-A
Brand:
J.C. Renfroe
Weight:
15
lbs
Price:
$1,279.00
Total:
$1,279.00
Total weight:
15
lbs
3 ton - Plate Thickness 0-2" Model SCPA Lifting Clamp
Code:
SCPA-03.00-A
Brand:
J.C. Renfroe
Weight:
24
lbs
Price:
$1,593.00
Total:
$1,593.00
Total weight:
24
lbs
6 ton - Plate Thickness 0-2 1/2" Model SCPA Lifting Clamp
Code:
SCPA-06.00-A
Brand:
J.C. Renfroe
Weight:
57
lbs
Price:
$2,266.00
Total:
$2,266.00
Total weight:
57
lbs
10 ton - Plate Thickness 0-3" Model SCPA Lifting Clamp
Code:
SCPA-10.00-A
Brand:
J.C. Renfroe
Weight:
134
lbs
Price:
$8,752.00
Total:
$8,752.00
Total weight:
134
lbs
