Model S

Features & Benefits

Vertical Lifting, Locking

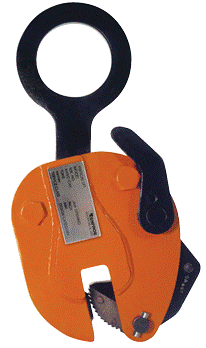

The Model S is a vertical lifting clamp and is an effective tool for construction and erection.
It incorporates a Lock Open, Lock Closed feature which facilitates attaching and removing the clamp from the plate.

Vertical lifting clamp effective for steel erection and construction
Single plate turning from horizontal to vertical & back through the same 90 degree arc
Incorporates the Lock Open - Lock Closed Feature
Allows easy attaching & removing of the clamp

*Call 866-392-2829 for availability and pricing

Download Model_S

Technical Specs

Part Number	Rated Capacity Tons (each clamp)	Plate Thickness A	B	C	MAX. D	E	F	G	H	J
S-02.00-A*	2	0-1	3 7/16	10	17	3 5/8	8 1/2	3 13/16	2 3/4	3/4
S-02.00-B*		3/4-1 1/2	3 7/16	10	17	3 5/8	9	3 13/16	2 3/4	3/4
S-02.00-C*		1 1/4-2	3 7/16	10	17	3 5/8	9 1/2	3 13/16	2 3/4	3/4
S-02.00-D*		1 3/4-2 1/2	3 7/16	10	17	35/8	10	3 13/16	2 3/4	3/4
S-04.00-A*	4	0-1 1/4	4 5/8	11 1/2	19 5/8	3 5/8	10	4 7/8	3 7/16	3/4
S-04.00-B*		1-2	4 5/8	11 1/2	19 5/8	3 5/8	10 3/4	4 7/8	3 7/16	3/4
S-04.00-C*		1 3/4-2 3/4	4 5/8	11 1/2	19 5/8	3 5/8	11 1/2	4 7/8	3 7/16	3/4
S-04.00-D*		2 1/2-3 1/2	4 5/8	11 1/2	19 5/8	3 5/8	12 1/4	4 7/8	3 7/16	3/4
S-04.00-E*		3 1/4-4 1/4	4 5/8	11 1/2	19 5/8	3 5/8	13	4 7/8	3 7/16	3/4
S-08.00-A*	8	0-1 1/2	4 1/2	13 15/16	22 1/2	3 3/4	10 1/2	5 1/8	3 5/16	1
S-08.00-B*		1-2	4 1/2	13 15/16	22 1/2	3 3/4	11	5 1/8	3 5/16	1
S-08.00-C*		2-3	4 1/2	13 15/16	22 1/2	3 3/4	12	5 1/8	3 5/16	1
S-08.00-D*		2 3/4-4	4 1/2	13 15/16	22 1/2	3 3/4	13	5 1/8	3 5/16	1
S-08.00-E*		3 3/4-5	4 1/2	13 15/16	22 1/2	3 3/4	14	5 1/8	3 5/16	1
S-12.00-A*	12	0-2 1/2	6 1/2	18	28	3 7/8	13 1/2	6 1/4	3 7/8	1 3/4
S-12.00-B*		1/2-3	6 1/2	18	28	3 7/8	14	6 1/4	3 7/8	1 3/4
S-12.00-C*		2-4	6 1/2	18	28	3 7/8	15	6 1/4	3 7/8	1 3/4
S-12.00-D*		4-6	6 1/2	18	28	3 7/8	17	6 1/4	3 7/8	1 3/4
S-12.00-E*		5 1/2-7 1/2	6 1/2	18	28	3 7/8	18 1/2	6 1/4	3 7/8	1 3/4
S-20.00-A*	20	1/2-3	7 1/2	22 3/4	35	4 15/16	17	7 3/8	5	2 1/2
S-20.00-B*		3-5	7 1/2	22 3/4	35	4 15/16	19	7 3/8	5	2 1/2
S-20.00-C*		5-7	7 1/2	22 3/4	35	4 15/16	21	7 3/8	5	2 1/2
S-20.00-D*		7-9	7 1/2	22 3/4	35	4 15/16	23	7 3/8	5	2 1/2
	No operator should engage or attempt to engage in the use of any RENFROE® product until the applicable manual has been read and fully understood. Failure to review and utilize recommended applications, operating and maintenance instructions could result in serious injury to the operator and others. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. OTHER CAPACITIES AVAILABLE UPON REQUEST. *Call 866-392-2829 for availability and pricing
