Features & Benefits
Vertical Lifting, Locking Type

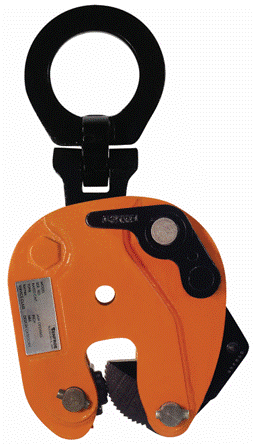

The Model JPA is a vertical lifting clamp capable of turning a single plate or member from horizontal to vertical to horizontal through a 180° arc. Incorporates a push button auxiliary lock. Permits side loading of lifting shackle to 90° by de-rating of clamp’s rated capacity. Refer to Figure 1 for de-rated capacities. Model JPA incorporates a pivoting shackle that permits side loading of the lifting shackle at 100% of rated capacity from vertical to 30° , 75% of rated capacity between 30° and 45° and 50% of rated capacity between 45° and 90°
- Single plate turning from horizontal to vertical to horizontal through a 180° arc
- Incorporates auxiliary push button lock
- Permits side loading of lifting shackle to 90° by de-rating clamps capacity
- Lock Open - Lock Closed Feature
- Allows easy attaching & removing of the clamp
- Versatile and heavier duty with capabilities up to 50 tons
*Call 866-392-2829 for availability and pricing
Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| JPA-00.50-A | 1/2 ton - Plate Thickness 0-5/8" Model JPA Lifting Clamp | J.C. Renfroe | 12 | $1,505.00 | $1,505.00 | 12 | ||
| JPA-01.00-A | 1 ton - Plate Thickness 0-3/4" Model JPA Lifting Clamp | J.C. Renfroe | 20 | $1,535.00 | $1,535.00 | 20 | ||
| JPA-02.00-A | 2 ton - Plate Thickness 0-1" Model JPA Lifting Clamp | J.C. Renfroe | 40 | $1,977.00 | $1,977.00 | 40 | ||
| JPA-04.00-A | 4 ton - Plate Thickness 3/16-1 1/4" Model JPA Lifting Clamp | J.C. Renfroe | 50 | $2,530.00 | $2,530.00 | 50 |
Purchase Below
1/2 ton - Plate Thickness 0-5/8" Model JPA Lifting Clamp
Code:
JPA-00.50-A
Brand:
J.C. Renfroe
Weight:
12
lbs
Price:
$1,505.00
Total:
$1,505.00
Total weight:
12
lbs
1 ton - Plate Thickness 0-3/4" Model JPA Lifting Clamp
Code:
JPA-01.00-A
Brand:
J.C. Renfroe
Weight:
20
lbs
Price:
$1,535.00
Total:
$1,535.00
Total weight:
20
lbs
2 ton - Plate Thickness 0-1" Model JPA Lifting Clamp
Code:
JPA-02.00-A
Brand:
J.C. Renfroe
Weight:
40
lbs
Price:
$1,977.00
Total:
$1,977.00
Total weight:
40
lbs
4 ton - Plate Thickness 3/16-1 1/4" Model JPA Lifting Clamp
Code:
JPA-04.00-A
Brand:
J.C. Renfroe
Weight:
50
lbs
Price:
$2,530.00
Total:
$2,530.00
Total weight:
50
lbs
