Features & Benefits
Vertical Lifting, Locking

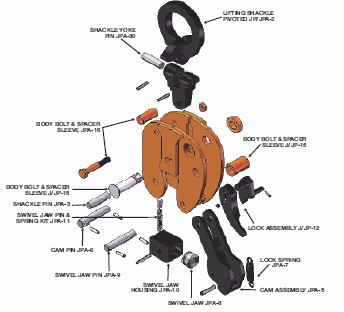

The Model JP is a vertical lifting clamp capable of turning a single plate or member from horizontal to vertical and back to horizontal through the same 90 degree arc.
Permits side loading of lifting shackle up to 90 degrees by derating of clamps rated capacity. Refer to specifications below for derated capacities.
Model JP incorporates a pivoting shackle that permits side loading of the lifting shackle at 100 percent of rated capacity from vertical to 30 degrees,
75 percent of rated capacity between 30 and 45 degrees and 50 percent of rated capacity between 45 and 90 degrees.
- Single plate turning from horizontal to vertical & back through the same 90 degree arc
- Permits side loading of lifting shackle up to 90 degrees by de-rating clamps capacity
- Allows easy attaching & removing of the clamp
- Choose the Model JP for higher cycle counts and higher capacity lifts or pulls
*Call 866-392-2829 for availability and pricing
