Small Length Lifting Beams Shackle Top

Features & Benefits

Manufactured to exceed all ASME B30.20 and OSHA regulations.
Painted safety yellow for increased visibility.
ALL Lifting Beams proof loaded and shipped with certification paperwork.
Durable construction ideally suited to jobsite or warehouse use.
Made in U.S.A.
Custom lettering available - call for details.
Custom designs available - call for engineering.
ALL lifting equipment individually proof loaded per OSHA requirements.
Beams supplied standard with shackle connections.

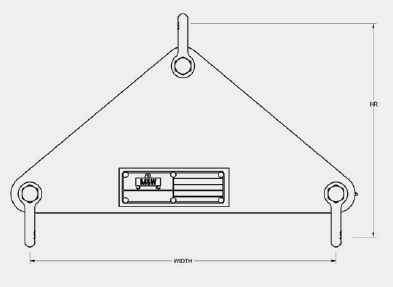

Technical Specs

Part Number	WLL (lbs)*	Top Shackle Size	Headroom (HR) (in.)	Width (in.)	Weight in Pounds	Bottom Shackle Size
20358	500	3/8"	8.30	12.00	9.00	3/8"
20359	500	3/8"	8.30	24.00	16.00	3/8"
20360	500	3/8"	8.30	36.00	22.00	3/8"
20361	2,000	5/8"	12.40	12.00	19.00	5/8"
20362	2,000	5/8"	12.40	24.00	33.00	5/8"
20363	2,000	5/8"	12.40	36.00	46.00	5/8"
20364	6,000	3/4"	14.10	12.00	32.00	3/4"
20365	6,000	3/4"	14.10	24.00	54.00	3/4"
20366	6,000	3/4"	14.10	36.00	73.00	3/4"
24047	10,000	7/8"	17	12.00	40.00	3/4"
24048	10,000	7/8"	17	24.00	62.00	3/4"
24049	10,000	7/8"	17	36.00	86.00	3/4"
20367	20,000	1-1/4"	21.20	24.00	107.00	7/8"
20368	20,000	1-1/4"	21.20	36.00	145.00	7/8"
24050	40,000	1-3/4"	32	24.00	271.00	1-1/4"
24051	40,000	1-3/4"	32	36.00	346.00	1-1/4"
24052	80,000	2-1/2"	42	24.00	585.00	1-3/4"
24053	80,000	2-1/2"	42	36.00	725.00	1-3/4"
* Call for specifications on larger sizes and capacities 866.392.2829
