Features & Benefits

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow for increased visibility.
  • ALL Lifting Beams proof loaded and shipped with certification paperwork.
  • Durable construction ideally suited to jobsite or warehouse use.
  • Made in U.S.A.
  • Custom lettering available - call for details.
  • Custom designs available - call for engineering.
  • ALL lifting equipment individually proof loaded per OSHA requirements.
  • All dimensions in inches unless otherwise noted.
  • Quick and easy adjustment of unbalanced loads.
  • Ideally suited to low headroom applications.
  • Eye hooks and custom connections available - call for ordering assistance.
CALL TO ORDER 866-392-2829


1,000 lbs.

WLL

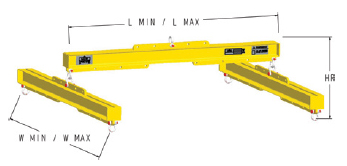

TOP BEAM: L MIN /  L MAX
PART NUMBER
12"-48"
36"x72"
60"-96"


LOWER BEAMS:
W MIN / W MAX
12"-48"
17560
17563
17566
HR
15.1
15.1
16.1
WEIGHT
135
150
185
36"-72"
17561
17564
17567
HR
15.1
15.1
16.1
WEIGHT
165
180
215
60"-96"
17562
17565
17568
HR
15.1
15.1
16.1
WEIGHT
195
210
245

2,000 lbs.

WLL
TOP BEAM: L MIN /  L MAX
PART NUMBER
12"-48"
36"x72"
60"-96"


LOWER BEAMS:
W MIN / W MAX
12"-48"
17569
17572
17575
HR
16.1
17.1
17.1
WEIGHT
150
180
250
36"-72"
17570
17573
17576
HR
17.1
17.1
18.1
WEIGHT
170
200
340
60"-96"
17571
17574
17577
HR
17.1
17.1
18.1
WEIGHT
240
270
340

4,000 lbs.

WLL
TOP BEAM: L MIN /  L MAX
PART NUMBER
12"-48"
36"x72"
60"-96"
84"-120"


LOWER BEAMS:
W MIN / W MAX
12"-48"
17578
17582
17586
17590
HR
18.1
19.1
20.1
20.1
WEIGHT
185
245
360
415
36"-72"
17579
17583
17587
17591
HR
19.1
19.1
21.1
21.1
WEIGHT
255
285
400
455
60"-96"
17580
17584
17588
17592
HR
19.1
19.1
20.1
20.1
WEIGHT
365
425
540
595
84"-120"
17581
17585
17589
17593
HR 19.1 19.1 21.1 21.1
WEIGHT 425 485 600 655


8,000 lbs.

WLL
TOP BEAM: L MIN /  L MAX
PART NUMBER
24"-72"
48"-96"
72"-120"


LOWER BEAMS:
W MIN / W MAX
12"-48"
17598
17602
17606
HR
25.6
25.6
25.6
WEIGHT
305
410
565
36"-72"
17599
17603
17607
HR
26.6
26.6
26.6
WEIGHT
425
530
685
60"-96"
17600
17604
17608
HR
27.6
27.6
27.6
WEIGHT
655
760
915
84"-120"
17601
17605
17609
HR 27.6 27.6 27.6
WEIGHT 765 870 1,025



CALL FOR PRICING & ORDERING ASSISTANCE 866.392.2829
