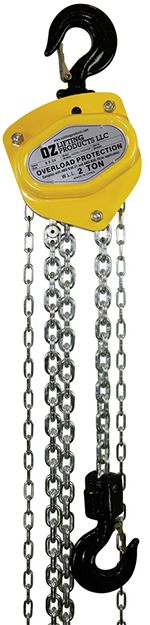

Chain Hoist

Features & Benefits

Unique Hand Wheel Design - This feature enables the hand chain to successfully feed directly into the wheel sprocket from many directions and angles.
Thus, the operator can use the hoist while standing to the side of, or even above the load without fear of the hand chain jamming.
Thrust Bearing on Lower Hook - Allows easy rotation of load while suspended & prevents load chain twisting.
Electro Zinc Plated Hand & Load Chain - Provides a durable finish.
Fully Machined Lift Wheel - This feature perfectly accepts the chain allowing for a smooth long lasting operation.
Totally Enclosed Gearing - This design protects gears from contamination and debris.
Lifting or Pulling - This hand hoist can be used for lifting or pulling which makes for a more flexible and versatile tool.
Low Headroom - Provides maximum lift by minimizing space taken up by the hoist, making it ideal in restricted space applications.
Corrosion Protection - Hoist components are powder coated to prevent corrosion. Product I.D. labels are made from stainless steel.
Minimal Load Lifting Effort - These hoists require 20% - 35% less effort than the competition. Lift heavy loads with ease. Ideal for frequent lifting/pulling applications.
Fully Enclosed Gearing - This protects the gears from contamination and debris.
All Steel Construction - These lever hoists and chain hoists are strong, durable and rugged, providing a long and dependable service life.
Forged Alloy Steel Hooks Cast Steel Safety Latches - Each heavy duty cast steel safety latches has a bolt and lock nut connection rather than roller pins used by most competitors.
This feature facilitates easy latch changing in the field.
Weather Proof Load Holding Brake - Both lever and chain hoists have a protected Weston Brake which holds the load during the entire operation.
The hoists are also equipped with a unique twin pawl design.
All Gears and Shafts Run on Roller Bearings - This feature provides smooth controlled operation as well as maintenance free lubrication.
Stainless Steel Riveted ID Tags - These tags will not rust and will maintain clear distinct information for easy identification.
Safety Yellow Powder Coating - This process provides a long lasting finish in hostile environments.
Maintenance - Hoists can be quickly disassembled for fast and easy maintenance.
Certification - Each hoist is rigged and load tested here in the U.S. at OZ Lifting and comes with a serial number and test certificate dedicated to each hoist.
Each hoist is double checked and signed providing traceability throughout the entire manufacturing process.
Meet or exceed the following standards - CE, AS1418.2, ANSI B30.21, ANSI B30.16

Feet of hand chain to lift one foot of load chain
1/2 ton ..........28ft.
1 ton .............37ft.
1.5 ton ..........31ft.
2 ton .............50ft.
3 ton .............70ft.
5 ton ............196ft.
10 ton ..........209ft.


DIMENSIONS:
show image
select image
select image
  Download CH_operatorsmanual

Technical Specs +   Show table

Part Number
Working Load Limit
(ton)
Lift Height
(ft.)
Falls of Chain
Effort to Lift WLL
 (lbs)
Load Chain Diameter
Dim. A
 (in.)
Dim. B.
(in.)
Dim. C
(in.)
Hook Opening
Weight
(lbs)
OZ005-10CHOP
1/2 TON
10 Ft.
1
50.1
6 mm
10.62
5
5.15
1.18
23
OZ005-20CHOP
1/2 TON
20 Ft.
1
50.1
6 mm
10.62
5
5.15
1.18
34
OZ010-10CHOP
1 TON
10 Ft.
1
66.14
6 mm
12.48
6.22
5.51
1.1
28
OZ010-20CHOP
1 TON
20 Ft.
1
66.14
6 mm
12.48
6.22
5.51
1.1
38
OZ015-10CHOP
1.5 TON
10 Ft.
1
70.46
8 mm
15.7
7.36
6.33
1.41
41
OZ015-20CHOP
1.5 TON
20 Ft.
1
70.46
8 mm
15.7
7.36
6.33
1.41
57
OZ020-10CHOP
2 TON
10 Ft.
1
77.16
8 mm
16.29
7.36
6.33
1.31
45
OZ020-20CHOP
2 TON
20 Ft.
1
77.16
8 mm
16.29
7.36
6.33
1.31
60
OZ030-10CHOP
3 TON
10 Ft.
2
59.52
8 mm
18.3
8.26
6.33
1.57
58
OZ030-20CHOP
3 TON
20 Ft.
2
59.52
8 mm
18.3
8.26
6.33
1.57
80
OZ050-10CHOP
5 TON
10 Ft.
2
90.39
10 mm
25.03
9.96
6.33
1.96
77
OZ050-20CHOP
5 TON
20 Ft.
2
90.39
10 mm
25.03
9.96
6.33
1.96
89
OZ100-10CHOP
10 TON
10 Ft.
4
85.98
10 mm
29.52
14.68
7.24
2.51
183
OZ100-20CHOP
10 TON
20 Ft.
4
85.98
10 mm
29.52
14.68
7.24
2.51
260

Purchase Below

Part Number Description Brand Weight Price Quantity Total Total weight
OZ005-10CHOP 1/2 ton 10 Ft. Chain Hoist with Overload Protection Oz Lifting Products 23 $283.00 $283.00 23
OZ005-20CHOP 1/2 ton 20 Ft. Chain Hoist with Overload Protection Oz Lifting Products 34 $385.40 $385.40 34
OZ010-10CHOP 1 ton 10 Ft. Chain Hoist with Overload Protection Oz Lifting Products 28 $318.32 $318.32 28
OZ010-20CHOP 1 ton 20 Ft. Chain Hoist with Overload Protection Oz Lifting Products 38 $420.72 $420.72 38
OZ015-10CHOP 1.5 ton 10 Ft. Chain Hoist with Overload Protection Oz Lifting Products 41 $417.36 $417.36 41
OZ015-20CHOP 1.5 ton 20 Ft. Chain Hoist with Overload Protection Oz Lifting Products 57 $542.76 $542.76 57
OZ020-10CHOP 2 ton 10 Ft. Chain Hoist with Overload Protection Oz Lifting Products 45 $466.58 $466.58 45
OZ020-20CHOP 2 ton 20 Ft. Chain Hoist with Overload Protection Oz Lifting Products 60 $591.98 $591.98 60
OZ030-10CHOP 3 ton 10 Ft. Chain Hoist with Overload Protection Oz Lifting Products 58 $585.08 $585.08 58
OZ030-20CHOP 3 ton 20 Ft. Chain Hoist with Overload Protection Oz Lifting Products 80 $1,021.08 $1,021.08 80
OZ050-10CHOP 5 ton 10 Ft. Chain Hoist with Overload Protection Oz Lifting Products 77 $759.96 $759.96 77
OZ050-20CHOP 5 ton 20 Ft. Chain Hoist with Overload Protection Oz Lifting Products 89 $1,070.76 $1,070.76 89
OZ100-10CHOP 10 ton 10 Ft. Chain Hoist with Overload Protection Oz Lifting Products 183 $2,189.64 $2,189.64 183
OZ100-20CHOP 10 ton 20 Ft. Chain Hoist with Overload Protection Oz Lifting Products 260 $2,778.44 $2,778.44 260

Purchase Below

1/2 ton 10 Ft. Chain Hoist with Overload Protection
Code: OZ005-10CHOP
Brand: Oz Lifting Products
Weight: 23 lbs
Price: $283.00
Total: $283.00
Total weight: 23 lbs
1/2 ton 20 Ft. Chain Hoist with Overload Protection
Code: OZ005-20CHOP
Brand: Oz Lifting Products
Weight: 34 lbs
Price: $385.40
Total: $385.40
Total weight: 34 lbs
1 ton 10 Ft. Chain Hoist with Overload Protection
Code: OZ010-10CHOP
Brand: Oz Lifting Products
Weight: 28 lbs
Price: $318.32
Total: $318.32
Total weight: 28 lbs
1 ton 20 Ft. Chain Hoist with Overload Protection
Code: OZ010-20CHOP
Brand: Oz Lifting Products
Weight: 38 lbs
Price: $420.72
Total: $420.72
Total weight: 38 lbs
1.5 ton 10 Ft. Chain Hoist with Overload Protection
Code: OZ015-10CHOP
Brand: Oz Lifting Products
Weight: 41 lbs
Price: $417.36
Total: $417.36
Total weight: 41 lbs
1.5 ton 20 Ft. Chain Hoist with Overload Protection
Code: OZ015-20CHOP
Brand: Oz Lifting Products
Weight: 57 lbs
Price: $542.76
Total: $542.76
Total weight: 57 lbs
2 ton 10 Ft. Chain Hoist with Overload Protection
Code: OZ020-10CHOP
Brand: Oz Lifting Products
Weight: 45 lbs
Price: $466.58
Total: $466.58
Total weight: 45 lbs
2 ton 20 Ft. Chain Hoist with Overload Protection
Code: OZ020-20CHOP
Brand: Oz Lifting Products
Weight: 60 lbs
Price: $591.98
Total: $591.98
Total weight: 60 lbs
3 ton 10 Ft. Chain Hoist with Overload Protection
Code: OZ030-10CHOP
Brand: Oz Lifting Products
Weight: 58 lbs
Price: $585.08
Total: $585.08
Total weight: 58 lbs
3 ton 20 Ft. Chain Hoist with Overload Protection
Code: OZ030-20CHOP
Brand: Oz Lifting Products
Weight: 80 lbs
Price: $1,021.08
Total: $1,021.08
Total weight: 80 lbs
5 ton 10 Ft. Chain Hoist with Overload Protection
Code: OZ050-10CHOP
Brand: Oz Lifting Products
Weight: 77 lbs
Price: $759.96
Total: $759.96
Total weight: 77 lbs
5 ton 20 Ft. Chain Hoist with Overload Protection
Code: OZ050-20CHOP
Brand: Oz Lifting Products
Weight: 89 lbs
Price: $1,070.76
Total: $1,070.76
Total weight: 89 lbs
10 ton 10 Ft. Chain Hoist with Overload Protection
Code: OZ100-10CHOP
Brand: Oz Lifting Products
Weight: 183 lbs
Price: $2,189.64
Total: $2,189.64
Total weight: 183 lbs
10 ton 20 Ft. Chain Hoist with Overload Protection
Code: OZ100-20CHOP
Brand: Oz Lifting Products
Weight: 260 lbs
Price: $2,778.44
Total: $2,778.44
Total weight: 260 lbs
