Features & Benefits

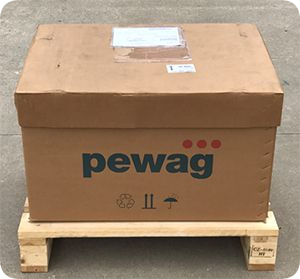

- Order below full drum or per foot.
- Higher Wear Resistance - Due to the special form of the profile chain, a larger contact is achieved between the bearing surfaces of the links.
This, in turn, reduces the surface pressure on the chain and consequently reduces wear substantially. This is a real advantage in abrasive environments. - Bending Resistance - The new profile of the G120 chain has up to 38% higher moment of resistance compared to regular round-link chains with the same diameter.
Therefore, chain can withstand bending forces better than round-link chains and is well equipped for heavy applications. - Higher Design Factor - Same dimension of chain and workload, G120 offers a design factor of 6:1 compared to G80 with 4:1.
- Color-Coded Corrosion Protection - G120 has a powder coated finish in blue (PC/B), which provides easy identification and corrosion protection.
Stamped Pewag 12, 300 & Batch Code. - G120 meets or exceeds the G100 NACM/ASTM-test requirements for lifting chains
Exceeds the 4:1 NACM design factor if G80 loading is used meets the NACM standard for heat resistance
with 400 F meets the 20,000 cycle ASTM-Standard fatigue test for Grade 100. NOT for temperatures under -76°F or over 570°F - GRAY 1/2" rated for up to 200°F
Grade 120 chain was specifically designed to for extreme overhead lifting applications. Grade 120 Chain is an ultra-premium quality high strength alloy steel.
Grade 120 Chain has a 50 percent increase in working load limit as compared to a similar size chain in Grade 80.
This allows you to reduce the size of the chain depending on the working load needed.
Grade 120 chains are also referred to as Grade 12, Grade 120 Winner Pro. Grade 120 Chain IS approved for overhead lifting.

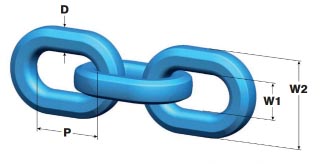

Technical Specs
Purchase Below
| Part Number | Reference # | Description | Brand | Weight | Available sizes | Size | Price | Quantity | Total | Total weight | |
| 120-250 | 77007 | 9/32" - Grade 120 Flex PC/B - Blue | Pewag | 0 | full drum / per foot | $0.00 | $0.00 | 0 | |||
| 120-312 | 77051 | 5/16" - Grade 120 Flex PC/B - Blue | Pewag | 0 | full drum / per foot | $0.00 | $0.00 | 0 | |||
| 120-375 | 77062 | 3/8" - Grade 120 Flex PC/B - Grey | Pewag | 0 | full drum / per foot | $0.00 | $0.00 | 0 | |||
| 1/2G120CUT | 1/2" Grade 120 Chain - Cut Piece - Blue & Grey | Pewag | 3 | $27.14 | $27.14 | 3 |
Purchase Below
9/32" - Grade 120 Flex PC/B - Blue
Code:
120-250
Reference:
77007
Brand:
Pewag
Weight:
0
lb
Available sizes:
full drum /
per foot
Size:
Price:
$0.00
Total:
$0.00
Total weight:
0
lb
5/16" - Grade 120 Flex PC/B - Blue
Code:
120-312
Reference:
77051
Brand:
Pewag
Weight:
0
lb
Available sizes:
full drum /
per foot
Size:
Price:
$0.00
Total:
$0.00
Total weight:
0
lb
3/8" - Grade 120 Flex PC/B - Grey
Code:
120-375
Reference:
77062
Brand:
Pewag
Weight:
0
lb
Available sizes:
full drum /
per foot
Size:
Price:
$0.00
Total:
$0.00
Total weight:
0
lb
1/2" Grade 120 Chain - Cut Piece - Blue & Grey
Code:
1/2G120CUT
Reference:
Brand:
Pewag
Weight:
3
lbs
Available sizes:
Size:
Price:
$27.14
Total:
$27.14
Total weight:
3
lbs
About
CHAIN TERMS
Grade of Chain: NACM (National Association of Chain Manufacturers & ASTM (American Society for Test Materials) classify chains in various grades.
The higher the grade, the higher the working load limit for the same size of chain.
Working Load Limit (WLL): (rated capacity) Is the maximum working load that should be applied In direct tension to an undamaged straight length of chain.
Proof Test: (manufacturing test force) Is a term designating the minimum tensile force which has been applied to a chain under a constantly increasing force In direct tension during the manufacturing process.
These loads are manufacturing integrity tests and shall not be used as criteria for service or design purpose.
Minimum Breaking Force: The minimum force at which the chain during manufacture has been found by testing to break when a constantly increasing force is applied in direct tension.
Breaking force values are not guarantees that all chain segments will endure these loads. This test is a manufacturers attribute acceptance test and SHALL NOT be used as criteria for service and design purpose.
Overhead Lifting: The process of lifting that would elevate a freely suspended load to such a position that dropping a load would present a possibility of bodily injury or Property damage.
Hardness Approx 41 HRC
Components Fatigue Tested to 20,000 cycles
Heat Resistance Up to 400 F
Nominal Breaking Stress* 1200 N/mm2
Nominal Proof Stress* 600N/mm2
Surface Powder coated blue
Elongation min 20% calculated acc. usual definition for round steel chain
1/2" GREY rated for up to 200°F
1/2" Grey Limited Quantity
All of our Pewag Grade 120 Chain is Made in the Europe. To help identify the grade and manufacturer all of our Grade 120 Chain is embossed with120 and D16. The D16 is the chain manufacturer Pewag.
The 120 identifies this as a Grade 120 Chain. Grade120 chain is typically finished with a Blue Powder Coat.. This is a tough durable finish. Grade 120 chain is a square link design.
Intelligent profile - because of the intelligent use of material, the major characteristics of the chain (i.e. fatigue resistance and bending resistance) were improved in a remarkable way,
when you compare the same cross section of the profile chain versus the round steel chain. In order to reach the best mechanical performance, the material use was optimized on effective areas (blue area) and reduced on less relevant areas (red area).
Optimized bending resistance: The section modulus which is important for preventing undesirable bending deformation is up to 16% higher with the profile chain compared to round steel chain with
the same cross section. Therefore the max stress in the chain is reduced (no red areas). 50% higher load capacity compared To Grade 80, 20% higher load capacity compared to G100.
Pewag Grade 120 chain is 100% European made produced from the highest quality alloy steel available. The chain is tested throughout the manufacturing process.
All of our Grade 120 chain is Proof Tested to twice the working load limit. The minimum break strength is four times the working load limit. Our Pewag
Grade 120 Alloy Chain meets or exceeds all existing OSHA, Government and ASTM specification requirements.
All of our Grade 120 Chain is 100 percent Proof Tested. Certs available free of charge. Please request at the time of order placement.
