Features & Benefits
Cartec Fittings are manufactured by Stamperia Carcano Giuseppe, spa in Italy. They have been producing first class forgings since 1960.
All the Cartec forgings are approved by the German standards company BG Holz und Metall. This can be identified with the quality mark "H92" on every piece.
This ISO 9001-2008 plant ensures complete material traceability on each product.
All the Cartec forgings are approved by the German standards company BG Holz und Metall. This can be identified with the quality mark "H92" on every piece.
This ISO 9001-2008 plant ensures complete material traceability on each product.
Type - Single Base
USE
Ring to be welded for load lifting.
- For asymmetric loads remember that the capacity has to be reduced as shown in the reference table
- The bracket must always be aligned to the polling direction (tolerance allowed +/- 10
- The anchorage clamp can be used safely up to maximum of 20.000 lifts with a full load
- Safety coefficient 4
- Ring tested 100% magnaflux
- Made in high resistant steel
- Painted with epoxy paint
- Tested at 20.000 stress cycles
- In particular applications the capacity which has to be used must be determined by the pulling inclination

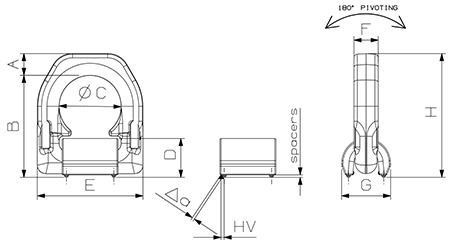

Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| C830X015M | 1.5 Ton Weld On Lifting Ring Single Base w/ Spring | Cartec | 0.86 | $66.33 | $66.33 | 0.86 | ||
| C830X025M | 2.5 Ton Weld On Lifting Ring Single Base w/ Spring | Cartec | 1 | $72.08 | $72.08 | 1 | ||
| C830X040M | 4.0 Ton Weld On Lifting Ring Single Base w/ Spring | Cartec | 2 | $84.82 | $84.82 | 2 | ||
| C830X067M | 6.7 Ton Weld On Lifting Ring Single Base w/ Spring | Cartec | 5 | $164.39 | $164.39 | 5 | ||
| C830X10M | 10 Ton Weld On Lifting Ring Single Base w/ Spring | Cartec | 7 | $267.57 | $267.57 | 7 | ||
| C830X16M | 16 Ton Weld On Lifting Ring Single Base w/ Spring | Cartec | 20 | $561.74 | $561.74 | 20 |
Purchase Below
1.5 Ton Weld On Lifting Ring Single Base w/ Spring
Code:
C830X015M
Brand:
Cartec
Weight:
0.86
lb
Price:
$66.33
Total:
$66.33
Total weight:
0.86
lb
2.5 Ton Weld On Lifting Ring Single Base w/ Spring
Code:
C830X025M
Brand:
Cartec
Weight:
1
lb
Price:
$72.08
Total:
$72.08
Total weight:
1
lb
4.0 Ton Weld On Lifting Ring Single Base w/ Spring
Code:
C830X040M
Brand:
Cartec
Weight:
2
lbs
Price:
$84.82
Total:
$84.82
Total weight:
2
lbs
6.7 Ton Weld On Lifting Ring Single Base w/ Spring
Code:
C830X067M
Brand:
Cartec
Weight:
5
lbs
Price:
$164.39
Total:
$164.39
Total weight:
5
lbs
10 Ton Weld On Lifting Ring Single Base w/ Spring
Code:
C830X10M
Brand:
Cartec
Weight:
7
lbs
Price:
$267.57
Total:
$267.57
Total weight:
7
lbs
16 Ton Weld On Lifting Ring Single Base w/ Spring
Code:
C830X16M
Brand:
Cartec
Weight:
20
lbs
Price:
$561.74
Total:
$561.74
Total weight:
20
lbs
