Features & Benefits

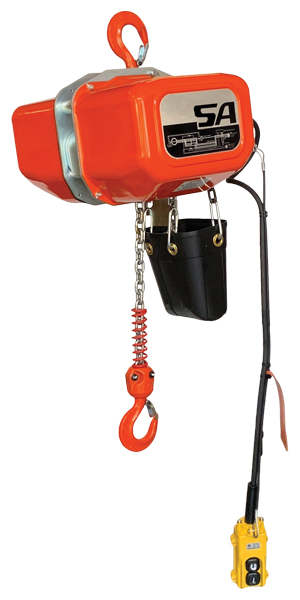

SA TYPE : 1 PHASE, 1 SPEED
- Tough, Heavy-Duty Motor: Elephants unique design for a lower power consumption.
- Reliable Electro-Magnetic DC Brake
- Single Speed - Hook to Hook
- Highly durable load chain manufactured in Japan by Elephant
- Totally Enclosed Steel Plate Construction
- Durable top and bottom hooks: Bottom hook with bearing smoothly swivels, 360. In the event of an overload, the hook gradually elongates.
This elongation serves as an indicator to the end user, making them aware of the overload. - Chain Bucket: Hard plastic
- Limit Switch: Standard feature
- Ambient temperature range 14~104 F
- Ratings JIS/ISO M4, FEM 1AM, ASME H3 Motor, IP54 Hoist Protection, IP65 NEMA 4X Pendant Protection
- Temperature Range -10 to 40 C, 14 to 104 F
- CSA Compliant Hoist available upon request, excludes motorized trolley

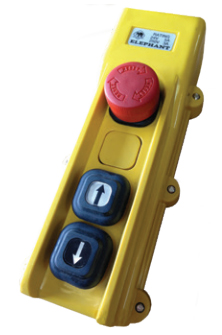

- Emergency Stop Button - Standard Feature on Single Phase Units

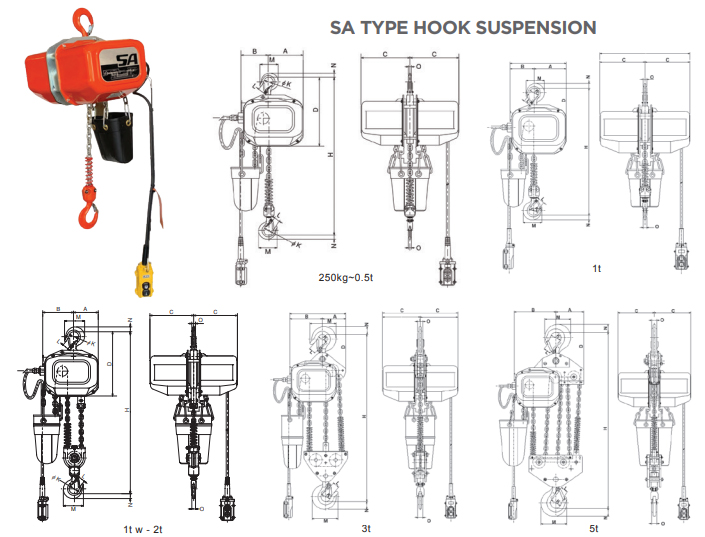

- Click Here to view expanded specifications image
Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| SA-0-25x10 | 1/4 ton 10' SA Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 101 | $3,351.60 | $3,351.60 | 101 | ||
| SA-0-25x15 | 1/4 ton 15' SA Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 105 | $3,492.96 | $3,492.96 | 105 | ||
| SA-0-25x20 | 1/4 ton 20' SA Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 108 | $3,640.02 | $3,640.02 | 108 | ||
| SA-0-5x10 | 1/2 ton 10' SA Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 101 | $3,678.78 | $3,678.78 | 101 | ||
| SA-0-5x15 | 1/2 ton 15' SA Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 105 | $3,820.14 | $3,820.14 | 105 | ||
| SA-0-5x20 | 1/2 ton 20' SA Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 108 | $3,960.36 | $3,960.36 | 108 | ||
| SA-1x10 | 1 ton 10' SA Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 135 | $4,140.48 | $4,140.48 | 135 | ||
| SA-1x15 | 1 ton 15' SA Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 142 | $4,327.44 | $4,327.44 | 142 | ||
| SA-1x20 | 1 ton 20' SA Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 149 | $4,515.54 | $4,515.54 | 149 | ||
| SA-2x10 | 2 ton 10' SA Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 150 | $4,913.40 | $4,913.40 | 150 | ||
| SA-2x15 | 2 ton 15' SA Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 158 | $5,184.72 | $5,184.72 | 158 | ||
| SA-2x20 | 2 ton 20' SA Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 166 | $5,453.76 | $5,453.76 | 166 | ||
| SA-3x10 | 3 ton 10' SA Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 186 | $6,126.36 | $6,126.36 | 186 | ||
| SA-3x15 | 3 ton 15' SA Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 198 | $6,513.96 | $6,513.96 | 198 | ||
| SA-3x20 | 3 ton 20' SA Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 210 | $6,901.56 | $6,901.56 | 210 | ||
| SA-5x10 | 5 ton 10' SA Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 259 | $7,740.60 | $7,740.60 | 259 | ||
| SA-5x15 | 5 ton 15' SA Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 278 | $8,312.88 | $8,312.88 | 278 | ||
| SA-5x20 | 5 ton 20' SA Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 296 | $8,855.52 | $8,855.52 | 296 |
Purchase Below
1/4 ton 10' SA Series Single Speed Electric Chain Hoist
Code:
SA-0-25x10
Brand:
Elephant Lifting Products
Weight:
101
lbs
Price:
$3,351.60
Total:
$3,351.60
Total weight:
101
lbs
1/4 ton 15' SA Series Single Speed Electric Chain Hoist
Code:
SA-0-25x15
Brand:
Elephant Lifting Products
Weight:
105
lbs
Price:
$3,492.96
Total:
$3,492.96
Total weight:
105
lbs
1/4 ton 20' SA Series Single Speed Electric Chain Hoist
Code:
SA-0-25x20
Brand:
Elephant Lifting Products
Weight:
108
lbs
Price:
$3,640.02
Total:
$3,640.02
Total weight:
108
lbs
1/2 ton 10' SA Series Single Speed Electric Chain Hoist
Code:
SA-0-5x10
Brand:
Elephant Lifting Products
Weight:
101
lbs
Price:
$3,678.78
Total:
$3,678.78
Total weight:
101
lbs
1/2 ton 15' SA Series Single Speed Electric Chain Hoist
Code:
SA-0-5x15
Brand:
Elephant Lifting Products
Weight:
105
lbs
Price:
$3,820.14
Total:
$3,820.14
Total weight:
105
lbs
1/2 ton 20' SA Series Single Speed Electric Chain Hoist
Code:
SA-0-5x20
Brand:
Elephant Lifting Products
Weight:
108
lbs
Price:
$3,960.36
Total:
$3,960.36
Total weight:
108
lbs
1 ton 10' SA Series Single Speed Electric Chain Hoist
Code:
SA-1x10
Brand:
Elephant Lifting Products
Weight:
135
lbs
Price:
$4,140.48
Total:
$4,140.48
Total weight:
135
lbs
1 ton 15' SA Series Single Speed Electric Chain Hoist
Code:
SA-1x15
Brand:
Elephant Lifting Products
Weight:
142
lbs
Price:
$4,327.44
Total:
$4,327.44
Total weight:
142
lbs
1 ton 20' SA Series Single Speed Electric Chain Hoist
Code:
SA-1x20
Brand:
Elephant Lifting Products
Weight:
149
lbs
Price:
$4,515.54
Total:
$4,515.54
Total weight:
149
lbs
2 ton 10' SA Series Single Speed Electric Chain Hoist
Code:
SA-2x10
Brand:
Elephant Lifting Products
Weight:
150
lbs
Price:
$4,913.40
Total:
$4,913.40
Total weight:
150
lbs
2 ton 15' SA Series Single Speed Electric Chain Hoist
Code:
SA-2x15
Brand:
Elephant Lifting Products
Weight:
158
lbs
Price:
$5,184.72
Total:
$5,184.72
Total weight:
158
lbs
2 ton 20' SA Series Single Speed Electric Chain Hoist
Code:
SA-2x20
Brand:
Elephant Lifting Products
Weight:
166
lbs
Price:
$5,453.76
Total:
$5,453.76
Total weight:
166
lbs
3 ton 10' SA Series Single Speed Electric Chain Hoist
Code:
SA-3x10
Brand:
Elephant Lifting Products
Weight:
186
lbs
Price:
$6,126.36
Total:
$6,126.36
Total weight:
186
lbs
3 ton 15' SA Series Single Speed Electric Chain Hoist
Code:
SA-3x15
Brand:
Elephant Lifting Products
Weight:
198
lbs
Price:
$6,513.96
Total:
$6,513.96
Total weight:
198
lbs
3 ton 20' SA Series Single Speed Electric Chain Hoist
Code:
SA-3x20
Brand:
Elephant Lifting Products
Weight:
210
lbs
Price:
$6,901.56
Total:
$6,901.56
Total weight:
210
lbs
5 ton 10' SA Series Single Speed Electric Chain Hoist
Code:
SA-5x10
Brand:
Elephant Lifting Products
Weight:
259
lbs
Price:
$7,740.60
Total:
$7,740.60
Total weight:
259
lbs
5 ton 15' SA Series Single Speed Electric Chain Hoist
Code:
SA-5x15
Brand:
Elephant Lifting Products
Weight:
278
lbs
Price:
$8,312.88
Total:
$8,312.88
Total weight:
278
lbs
5 ton 20' SA Series Single Speed Electric Chain Hoist
Code:
SA-5x20
Brand:
Elephant Lifting Products
Weight:
296
lbs
Price:
$8,855.52
Total:
$8,855.52
Total weight:
296
lbs
About
OPTIONAL OVERLOAD LIMIT DEVICE FOR THE SA HOISTS
Our new Torcon overload protection device is a slip clutch style. In the event of an overload, the device actuates and prevents the hoist from continuing to lift.
This mechanism protects the hoist from damage.
- Single phase class B insulation with a short time duty of 25 minutes
- Thermal protector - senses abnormal rise in temperatures within the motor and automatically shuts the motor down to prevent damage.
OPTIONAL MOTORIZED TROLLEYS
- MTS series motorized trolley, single phase, for combination with the SA electric chain hoists. 1/4t ~ 1 ton only.
- Trolleys come with pivoting adapter for hook to hook type suspension or lug type suspension
WIRING - SIMPLE PLUG-IN TYPE CONNECTION
* Standard pendant hangs approximately 2 less than the lift
* For lifts or PB control lengths other than standard lift, use the base adder prices above -start at standard lift
* Contact customer service for lift and pendant length limitations
* Standard power supply cord is 16.4
* For lifts or PB control lengths other than standard lift, use the base adder prices above -start at standard lift
* Contact customer service for lift and pendant length limitations
* Standard power supply cord is 16.4
