DA Series 3-Phase 230V/460Hz

DA TYPE : 1 SPEED, 3 PHASE SINGLE VOLTAGE, 230V/460HZ, HOOK to HOOK, HEAVY DUTY

• An efficient motor that offers high lift speeds The DA/DB series hoist features a newly developed motor for severe conditions, which allows it to operate continuously for
  long periods of time with frequent starts within an hour cycle. These lifting speeds were engineered to be as fast as possible to ensure efficiency.
• Quiet operation with a sealed protective body against dust Durable helical gears & an oil bath style gear case make these units quiet during operation.
• Solid steel side plates for a rugged heavy duty construction
• Highly durable load chain Our surface hardened load chain is manufactured within our factory in Osaka, Japan and is in compliance with ISO standard grade T, offering a satisfactory degree of breaking strength, wear resistance, and impact absorption. We can also offer load chain of a higher corrosion resistance upon request.
• Safe DOUBLE BRAKE design A mechanical brake and motor brake - the electric-magnetic brake is combined with a mechanical brake to constitute a complete double brake system.
  Even the former alone has enough capacity to hold a static safe working load!
• DC brake and motor with low power consumption A DC solenoid is used for the electro-magnetic brake. This lowers the electrical consumption throughout the operation of the electric chain hoist.
• A safer chain guide with our unique design The DA/DB series is designed so that the chain guides rotation on the load sheave transmits to the electrical limit switch.
  The electric limit switch automatically stops the operation of the hoist in the event that the load chain is raised or lowered to the chains end. In this case,
  the limit switch would also engage if dust or foreign matters remain pressed within the pockets of the load sheave.
• Reliable double-action limit switch Electrical limit switch for this model acts in two steps. In the first step the limit switch breaks the operating circuit.
  Then within the second step, the limit switch breaks the main circuit. Ensuring the hoist ceases operation.
• Negative phase contactor and a highly efficient magnetic contact with a mechanical & electrical interlock
• Motor frame The motor frame is constructed with high quality aluminum cooling fins which help reduce the rise of temperature within the motor
• Durable chain container
• Pendant control switch is set at 24v for safe operation
• Push-push button style pendant for the DB models
• Top and bottom hooks with safety latch Designed to gradually open and not break suddenly in the event of an overload. A compact thrust bearing also helps to prevent the load chain from twisting.
• Ratings JIS / ISO M5, FEM 2M, ASME H3 Motor, IP54 Hoist Protection, IP65 NEMA 4X Pendant Protection
• Temperature range -20 to 40 C,  -4 to 104 F

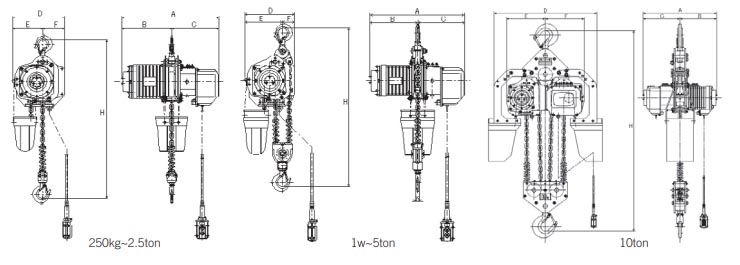

• Click Here to view expanded specifications image
