Features & Benefits
The Jumbo Beam Clamp is a great option for rigging applications.
This clamp line features a wide jaw opening for wide flange beams.
The JBCs clamp screw assembly is also zinc plated for added corrosion protection.
Stainless ID tag includes capacity, serial number and warning information.
This clamp series features metric capacities that range from 3, 5, 6, 10 and 16 tons.

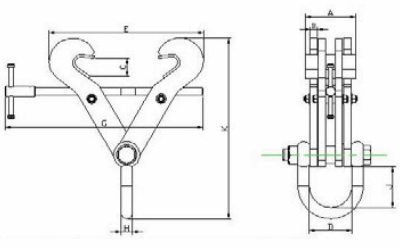

Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| JBC-3A | WLL 6,600 Lbs. Jumbo Beam Clamp - Beam Width 3.00-7.48 | Elephant Lifting Products | 18 | $663.00 | $663.00 | 18 | ||
| JBC-5A | WLL 11,000 Lbs. Jumbo Beam Clamp - Beam Width 6.00-12.00 | Elephant Lifting Products | 33 | $952.00 | $952.00 | 33 | ||
| JBC-5B | WLL 11,000 Lbs. Jumbo Beam Clamp - Beam Width 3.00-7.48 | Elephant Lifting Products | 22 | $890.00 | $890.00 | 22 | ||
| JBC-6 | WLL 13,200 Lbs. Jumbo Beam Clamp - Beam Width 8.00-18.00 | Elephant Lifting Products | 42 | $1,227.00 | $1,227.00 | 42 | ||
| JBC-10 | WLL 22,000 Lbs. Jumbo Beam Clamp - Beam Width 8.00-18.00 | Elephant Lifting Products | 62 | $1,575.00 | $1,575.00 | 62 | ||
| JBC-16A | WLL 35,000 Lbs. Jumbo Beam Clamp - Beam Width 16.00-24.00 | Elephant Lifting Products | 135 | $2,681.00 | $2,681.00 | 135 | ||
| JBC-16B | WLL 35,000 Lbs. Jumbo Beam Clamp - Beam Width 8.00-18.00 | Elephant Lifting Products | 119 | $2,183.00 | $2,183.00 | 119 |
Purchase Below
WLL 6,600 Lbs. Jumbo Beam Clamp - Beam Width 3.00-7.48
Code:
JBC-3A
Brand:
Elephant Lifting Products
Weight:
18
lbs
Price:
$663.00
Total:
$663.00
Total weight:
18
lbs
WLL 11,000 Lbs. Jumbo Beam Clamp - Beam Width 6.00-12.00
Code:
JBC-5A
Brand:
Elephant Lifting Products
Weight:
33
lbs
Price:
$952.00
Total:
$952.00
Total weight:
33
lbs
WLL 11,000 Lbs. Jumbo Beam Clamp - Beam Width 3.00-7.48
Code:
JBC-5B
Brand:
Elephant Lifting Products
Weight:
22
lbs
Price:
$890.00
Total:
$890.00
Total weight:
22
lbs
WLL 13,200 Lbs. Jumbo Beam Clamp - Beam Width 8.00-18.00
Code:
JBC-6
Brand:
Elephant Lifting Products
Weight:
42
lbs
Price:
$1,227.00
Total:
$1,227.00
Total weight:
42
lbs
WLL 22,000 Lbs. Jumbo Beam Clamp - Beam Width 8.00-18.00
Code:
JBC-10
Brand:
Elephant Lifting Products
Weight:
62
lbs
Price:
$1,575.00
Total:
$1,575.00
Total weight:
62
lbs
WLL 35,000 Lbs. Jumbo Beam Clamp - Beam Width 16.00-24.00
Code:
JBC-16A
Brand:
Elephant Lifting Products
Weight:
135
lbs
Price:
$2,681.00
Total:
$2,681.00
Total weight:
135
lbs
WLL 35,000 Lbs. Jumbo Beam Clamp - Beam Width 8.00-18.00
Code:
JBC-16B
Brand:
Elephant Lifting Products
Weight:
119
lbs
Price:
$2,183.00
Total:
$2,183.00
Total weight:
119
lbs
About
SIDE LOAD ACROSS BEAM ONLY - CLAMP MUST BE FLUSH ON BEAM WITH SHACKLE AT A ZERO DEGREE DOWNWARD FACING ANGLE
Reduction in working load limit when side loads are applied
* Warning: Clamps must be installed properly and fully tightened
* Always contact the manufacturer when in doubt
