Features & Benefits
- Designed for rugged outdoor use.
- Easy to use - simply rig, lift, set and release.
- LOCK & CAPTURE feature engages with very little load weight (see Minimum Load in chart below).
- Rated load capacity can be lifted from either Lift Arm or the lower Strip Sling Hook.
- Do not exceed rated capacity of hook.
- Oversized bail for easy mounting on crane hook - 5, 10 & 15 ton units provided with fixed bails.
- Designed and manufactured to ASME standards.

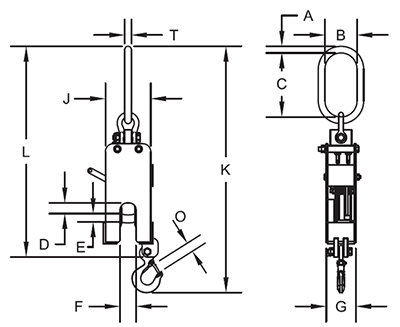

Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| RR-1 | 65-01 Model RR - Rig-Release Manual Releasing Hook (1 Ton Rated Cap.) | The Caldwell Group | 14 | $2,313.00 | $2,313.00 | 14 | ||
| RR-2.5 | 65-05 Model RR - Rig-Release Manual Releasing Hook (2.5 Ton Rated Cap.) | The Caldwell Group | 45 | $3,779.00 | $3,779.00 | 45 | ||
| RR-5 | 65-02 Model RR - Rig-Release Manual Releasing Hook (5 Ton Rated Cap.) | The Caldwell Group | 110 | $4,526.00 | $4,526.00 | 110 | ||
| RR-10 | 65-03 Model RR - Rig-Release Manual Releasing Hook (10 Ton Rated Cap.) | The Caldwell Group | 200 | $5,281.00 | $5,281.00 | 200 | ||
| RR-15 | 65-04 Model RR - Rig-Release Manual Releasing Hook (15 Ton Rated Cap.) | The Caldwell Group | 325 | $7,346.00 | $7,346.00 | 325 |
Purchase Below
65-01 Model RR - Rig-Release Manual Releasing Hook (1 Ton Rated Cap.)
Code:
RR-1
Brand:
The Caldwell Group
Weight:
14
lbs
Price:
$2,313.00
Total:
$2,313.00
Total weight:
14
lbs
65-05 Model RR - Rig-Release Manual Releasing Hook (2.5 Ton Rated Cap.)
Code:
RR-2.5
Brand:
The Caldwell Group
Weight:
45
lbs
Price:
$3,779.00
Total:
$3,779.00
Total weight:
45
lbs
65-02 Model RR - Rig-Release Manual Releasing Hook (5 Ton Rated Cap.)
Code:
RR-5
Brand:
The Caldwell Group
Weight:
110
lbs
Price:
$4,526.00
Total:
$4,526.00
Total weight:
110
lbs
65-03 Model RR - Rig-Release Manual Releasing Hook (10 Ton Rated Cap.)
Code:
RR-10
Brand:
The Caldwell Group
Weight:
200
lbs
Price:
$5,281.00
Total:
$5,281.00
Total weight:
200
lbs
65-04 Model RR - Rig-Release Manual Releasing Hook (15 Ton Rated Cap.)
Code:
RR-15
Brand:
The Caldwell Group
Weight:
325
lbs
Price:
$7,346.00
Total:
$7,346.00
Total weight:
325
lbs
About
Specifications Continued:
Part Number | Reference Number | * Minimum Load (Lbs.) | Recommended Lifting Settings | **Maximum Allowable Rigging Weight (Lbs.) | ||
|---|---|---|---|---|---|---|
Basket | Choker | Rope Diameter (in.) | Basket | Choker | ||
RR-1 | 65-01 | 30 | 15 | 3/8 | 14 | 7 |
RR-2.5 | 65-05 | 80 | 40 | 5/8 | 28 | 14 |
RR-5 | 65-02 | 230 | 115 | 7/8 | 60 | 30 |
RR-10 | 65-03 | 230 | 115 | 1 1/4 | 100 | 50 |
RR-15 | 65-04 | 400 | 200 | 1 1/2 | 100 | 50 |
Safety Mechanism will not engage at loads less than minimum.
If maximum allowable rigging weight is exceeded, unit will remain in the LOCK & CAPTURE position and cannot be released.NEW- Rope Guide allows rigging to be released when hook is either above or beside the operator.
If hook is located below the operator, please see Upward Pull option in the special application section.
The Rig-Release Remote Releasing Hook will allow you to set loads - and then - quickly, efficiently, and safely release the rigging from a safe distance. The Rig-Release simply hooks to your crane or spreader beam. You can then attach the slings(s) directly to the Rig-Release and rig the load. Once the load line is set and the crane line is slack, pull the release rope to release the sling(s). No need for a man lift on site or to have a worker crawl out (or up) just to disconnect sling(s). Its all done from a safe distance.
*If minimum load weight is not met, safety mechanism will not engage into the LOCK & CAPTURE position.
**If maximum allowable rigging weight is exceeded, unit will remain in the LOCK & CAPTURE position and can not be released.
If the maximum allowable rigging weight needs to be increased, additional springs can be added, refer to the Instruction Manual.
Safety Mechanism will not engage at loads less than minimum.
If maximum allowable rigging weight is exceeded, unit will remain in the LOCK & CAPTURE position and cannot be released.
SAFETY FEATURES:
- When the minimum load is applied, the Inner Body Assembly sits in the LOCK & CAPTURE position and CAN NOT be released.
- Inner Body Assembly only allows slings to release when the load line is slack.
- Release Rope has built in Breakaway Chain to prevent damage to the Inner Body Assembly.
- Additional springs can be added to accommodate heavier sling weights.
