Features & Benefits
- Heavy duty automatic clamping design.
- Outriggers stabilize the pipe during lift.
- No blocking is required.

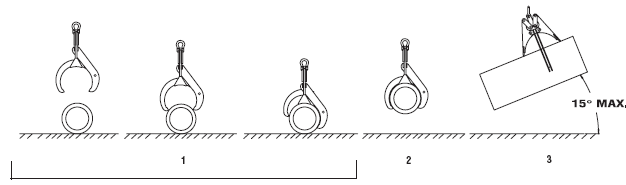

- The operator only has to guide the clamp into place.
- Pipes are handled quickly and efficiently when properly balanced.
- Excellent for cast iron, steel pipe, tubing, and other cylindrical objects.
- Pipe grab sizes listed handle ASA cast iron pipe - standard, extra strong, and double strong (all have same O.D.)
- Complies with ASME standards.

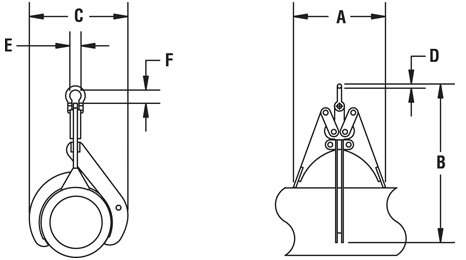

Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| Model C3 | 67-0401 Model C Pipe Grabs (Rated Cap. 450 lbs.) | The Caldwell Group | 7 | $858.00 | $858.00 | 7 | ||
| Model C4 | 67-0403 Model C Pipe Grabs (Rated Cap. 600 lbs.) | The Caldwell Group | 9 | $869.00 | $869.00 | 9 | ||
| Model C6 | 67-0405 Model C Pipe Grabs (Rated Cap. 1000 lbs.) | The Caldwell Group | 15 | $880.00 | $880.00 | 15 | ||
| Model C8 | 67-0407 Model C Pipe Grabs (Rated Cap. 1400 lbs.) | The Caldwell Group | 25 | $979.00 | $979.00 | 25 | ||
| Model C10 | 67-0409 Model C Pipe Grabs (Rated Cap. 2000 lbs.) | The Caldwell Group | 47 | $1,317.00 | $1,317.00 | 47 | ||
| Model C12 | 67-0411 Model C Pipe Grabs (Rated Cap. 2500 lbs.) | The Caldwell Group | 72 | $1,743.00 | $1,743.00 | 72 | ||
| Model C14 | 67-0413 Model C Pipe Grabs (Rated Cap. 3500 lbs.) | The Caldwell Group | 105 | $4,135.00 | $4,135.00 | 105 | ||
| Model S3 | 67-0402 Model S Pipe Grabs (Rated Cap. 450 lbs.) | The Caldwell Group | 7 | $858.00 | $858.00 | 7 | ||
| Model S4 | 67-0404 Model S Pipe Grabs (Rated Cap. 600 lbs.) | The Caldwell Group | 9 | $869.00 | $869.00 | 9 | ||
| Model S6 | 67-0406 Model S Pipe Grabs (Rated Cap. 1000 lbs.) | The Caldwell Group | 15 | $880.00 | $880.00 | 15 | ||
| Model S8 | 67-0408 Model S Pipe Grabs (Rated Cap. 1400 lbs.) | The Caldwell Group | 25 | $979.00 | $979.00 | 25 | ||
| Model S10 | 67-0410 Model S Pipe Grabs (Rated Cap. 2000 lbs.) | The Caldwell Group | 47 | $1,317.00 | $1,317.00 | 47 | ||
| Model S12 | 67-0412 Model S Pipe Grabs (Rated Cap. 2500 lbs.) | The Caldwell Group | 72 | $1,743.00 | $1,743.00 | 72 | ||
| Model S14 | 67-0414 Model S Pipe Grabs (Rated Cap. 3500 lbs.) | The Caldwell Group | 105 | $4,135.00 | $4,135.00 | 105 |
Purchase Below
67-0401 Model C Pipe Grabs (Rated Cap. 450 lbs.)
Code:
Model C3
Brand:
The Caldwell Group
Weight:
7
lbs
Price:
$858.00
Total:
$858.00
Total weight:
7
lbs
67-0403 Model C Pipe Grabs (Rated Cap. 600 lbs.)
Code:
Model C4
Brand:
The Caldwell Group
Weight:
9
lbs
Price:
$869.00
Total:
$869.00
Total weight:
9
lbs
67-0405 Model C Pipe Grabs (Rated Cap. 1000 lbs.)
Code:
Model C6
Brand:
The Caldwell Group
Weight:
15
lbs
Price:
$880.00
Total:
$880.00
Total weight:
15
lbs
67-0407 Model C Pipe Grabs (Rated Cap. 1400 lbs.)
Code:
Model C8
Brand:
The Caldwell Group
Weight:
25
lbs
Price:
$979.00
Total:
$979.00
Total weight:
25
lbs
67-0409 Model C Pipe Grabs (Rated Cap. 2000 lbs.)
Code:
Model C10
Brand:
The Caldwell Group
Weight:
47
lbs
Price:
$1,317.00
Total:
$1,317.00
Total weight:
47
lbs
67-0411 Model C Pipe Grabs (Rated Cap. 2500 lbs.)
Code:
Model C12
Brand:
The Caldwell Group
Weight:
72
lbs
Price:
$1,743.00
Total:
$1,743.00
Total weight:
72
lbs
67-0413 Model C Pipe Grabs (Rated Cap. 3500 lbs.)
Code:
Model C14
Brand:
The Caldwell Group
Weight:
105
lbs
Price:
$4,135.00
Total:
$4,135.00
Total weight:
105
lbs
67-0402 Model S Pipe Grabs (Rated Cap. 450 lbs.)
Code:
Model S3
Brand:
The Caldwell Group
Weight:
7
lbs
Price:
$858.00
Total:
$858.00
Total weight:
7
lbs
67-0404 Model S Pipe Grabs (Rated Cap. 600 lbs.)
Code:
Model S4
Brand:
The Caldwell Group
Weight:
9
lbs
Price:
$869.00
Total:
$869.00
Total weight:
9
lbs
67-0406 Model S Pipe Grabs (Rated Cap. 1000 lbs.)
Code:
Model S6
Brand:
The Caldwell Group
Weight:
15
lbs
Price:
$880.00
Total:
$880.00
Total weight:
15
lbs
67-0408 Model S Pipe Grabs (Rated Cap. 1400 lbs.)
Code:
Model S8
Brand:
The Caldwell Group
Weight:
25
lbs
Price:
$979.00
Total:
$979.00
Total weight:
25
lbs
67-0410 Model S Pipe Grabs (Rated Cap. 2000 lbs.)
Code:
Model S10
Brand:
The Caldwell Group
Weight:
47
lbs
Price:
$1,317.00
Total:
$1,317.00
Total weight:
47
lbs
67-0412 Model S Pipe Grabs (Rated Cap. 2500 lbs.)
Code:
Model S12
Brand:
The Caldwell Group
Weight:
72
lbs
Price:
$1,743.00
Total:
$1,743.00
Total weight:
72
lbs
67-0414 Model S Pipe Grabs (Rated Cap. 3500 lbs.)
Code:
Model S14
Brand:
The Caldwell Group
Weight:
105
lbs
Price:
$4,135.00
Total:
$4,135.00
Total weight:
105
lbs
