Features & Benefits
The Caldwell Model 74 Barrier Grab has been an industry standard for over 20 years.
Over the years, we have added sizes, increased capacity, improved grip range, and changed the feet to improve operation.
Now, our experienced engineers have done it again - we have increased the grip ratio, reduced overall tong size,
added ergonomic handles, refined the Auto-Latch operation, and increased the ASME BTH service class to category 3.
Over the years, we have added sizes, increased capacity, improved grip range, and changed the feet to improve operation.
Now, our experienced engineers have done it again - we have increased the grip ratio, reduced overall tong size,
added ergonomic handles, refined the Auto-Latch operation, and increased the ASME BTH service class to category 3.
- New, compact & rugged design holds up to the work environment where barriers are used.
- Handles concrete barriers from 6" - 12" nominal width at the top of the barrier.
- Stainless steel Auto-Latch.
- Auto-Latch mounting insures proper alignment.
- Locating assembly orientates tong on barrier without operator intervention and will pivot when grab is set on the ground.
- Gripping pads pivot to conform with the load.
- Replaceable polyurethane pads protect barrier.
- Alloy steel dog-point pads bite into painted barrier surfaces (typical in coastal areas).
- Centering guide cut out on grab shoe helps to properly center tong over barrier for a level lift.
- Extended handles on each side keep operator away from load and can be adjusted as needed.
- Lifting eye allows for easy hook attachment, self-centers rigging, and will accommodate a fork.

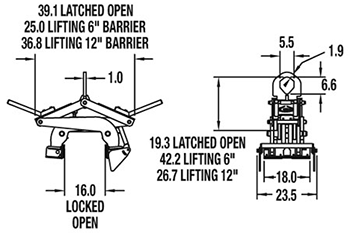

Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| BLG-4.1/4 | 67-015 Model 74 Heavy Duty Barrier Grab (Rated Cap. 8,500 lbs.) | The Caldwell Group | 550 | $8,224.00 | $8,224.00 | 550 | ||
| BLG-7.1/4 | 67-016 Model 74 Heavy Duty Barrier Grab (Rated Cap. 14,500 lbs.) | The Caldwell Group | 600 | $8,655.00 | $8,655.00 | 600 |
Purchase Below
67-015 Model 74 Heavy Duty Barrier Grab (Rated Cap. 8,500 lbs.)
Code:
BLG-4.1/4
Brand:
The Caldwell Group
Weight:
550
lbs
Price:
$8,224.00
Total:
$8,224.00
Total weight:
550
lbs
67-016 Model 74 Heavy Duty Barrier Grab (Rated Cap. 14,500 lbs.)
Code:
BLG-7.1/4
Brand:
The Caldwell Group
Weight:
600
lbs
Price:
$8,655.00
Total:
$8,655.00
Total weight:
600
lbs
About

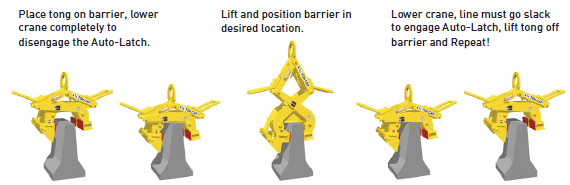

Operation
|
