Fixed Spread Lifting Beam (Economy)

Features & Benefits

  • Provides clearance in low headroom applications.
  • Bent bar bail for easy crane hook attachment.
  • Eye hooks with hook latches standard.
  • Fixed spread.
  • Complies with ASME standards.

The Caldwell Fixed Spread Lifting Beam is a light weight solution for handling load of the same size.

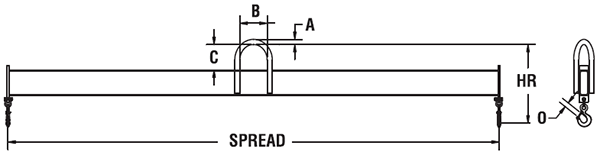

show image

Technical Specs +   Show table

Part Number
Reference Number
Capacity (tons)
Spread (ft.)
A (in.)
B (in.)
C (in.)
O (in.)
Headroom (in.)
Weight (lbs)
19-1/2-2
34-1917
1/2
2
.75
3
5
.89
13.31
20
19-1/2-3
34-1918
1/2
3
.75
3
5
.89
13.31
26
19-1/2-4
34-1901
1/2
4
.75
3
5
.89
13.31
33
19-1/2-6
34-1902
1/2
6
.75
3
5
.89
13.31
48
19-1/2-8
34-1903
1/2
8
.75
3
5
.89
14.31
75
19-1/2-10
34-1904
1/2
10
.75
3
5
.89
14.31
93
19-1-2
34-1919
1
2
1
6
5
.89
14.31
26
19-1-3
34-1920
1
3
1
6
5
.89
14.31
35
19-1-4
34-1905
1
4
1
6
5
.89
14.31
44
19-1-6
34-1906
1
6
1
6
5
.89
15.31
72
19-1-8
34-1907
1
8
1
6
5
.89
15.31
93
19-1-10
34-1908
1
10
1
6
5
.89
16.31
131
19-2-3
34-1921
2
3
1
6
5
1
16.75
45
19-2-4
34-1909
2
4
1
6
5
1
16.75
55
19-2-6
34-1910
2
6
1
6
5
1
19.75
108
19-2-8
34-1911
2
8
1
6
5
1
19.75
140
19-2-10
34-1912
2
10
1
6
5
1
19.75
188
19-3-3
34-1922
3
3
1.5
6
5
1
18.00
58
19-3-4
34-1913
3
4
1.5
6
5
1
20.00
87
19-3-6
34-1914
3
6
1.5
6
5
1
20.00
118
19-3-8
34-1915
3
8
1.5
6
5
1
20.00
222
19-3-10
34-1916
3
10
1.5
6
5
1
20.00
272

Purchase Below

Part Number Description Brand Weight Price Quantity Total Total weight
19-1/2-2 1/2 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 20 $1,080.00 $1,080.00 20
19-1/2-3 1/2 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 26 $1,124.00 $1,124.00 26
19-1/2-4 1/2 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 33 $1,202.00 $1,202.00 33
19-1/2-6 1/2 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 48 $1,237.00 $1,237.00 48
19-1/2-8 1/2 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 75 $1,835.00 $1,835.00 75
19-1/2-10 1/2 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 93 $2,052.00 $2,052.00 93
19-1-2 1 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 26 $1,124.00 $1,124.00 26
19-1-3 1 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 35 $1,172.00 $1,172.00 35
19-1-4 1 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 44 $1,277.00 $1,277.00 44
19-1-6 1 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 72 $1,456.00 $1,456.00 72
19-1-8 1 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 93 $1,921.00 $1,921.00 93
19-1-10 1 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 131 $2,187.00 $2,187.00 131
19-2-3 2 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 45 $1,274.00 $1,274.00 45
19-2-4 2 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 55 $1,630.00 $1,630.00 55
19-2-6 2 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 108 $1,851.00 $1,851.00 108
19-2-8 2 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 140 $2,357.00 $2,357.00 140
19-2-10 2 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 188 $2,557.00 $2,557.00 188
19-3-3 3 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 58 $1,410.00 $1,410.00 58
19-3-4 3 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 87 $1,920.00 $1,920.00 87
19-3-6 3 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 118 $2,387.00 $2,387.00 118
19-3-8 3 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 222 $2,825.00 $2,825.00 222
19-3-10 3 Ton Cap. Model 19 Fixed Spread Lifting Beam The Caldwell Group 272 $2,958.00 $2,958.00 272

Purchase Below

1/2 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-1/2-2
Brand: The Caldwell Group
Weight: 20 lbs
Price: $1,080.00
Total: $1,080.00
Total weight: 20 lbs
1/2 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-1/2-3
Brand: The Caldwell Group
Weight: 26 lbs
Price: $1,124.00
Total: $1,124.00
Total weight: 26 lbs
1/2 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-1/2-4
Brand: The Caldwell Group
Weight: 33 lbs
Price: $1,202.00
Total: $1,202.00
Total weight: 33 lbs
1/2 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-1/2-6
Brand: The Caldwell Group
Weight: 48 lbs
Price: $1,237.00
Total: $1,237.00
Total weight: 48 lbs
1/2 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-1/2-8
Brand: The Caldwell Group
Weight: 75 lbs
Price: $1,835.00
Total: $1,835.00
Total weight: 75 lbs
1/2 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-1/2-10
Brand: The Caldwell Group
Weight: 93 lbs
Price: $2,052.00
Total: $2,052.00
Total weight: 93 lbs
1 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-1-2
Brand: The Caldwell Group
Weight: 26 lbs
Price: $1,124.00
Total: $1,124.00
Total weight: 26 lbs
1 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-1-3
Brand: The Caldwell Group
Weight: 35 lbs
Price: $1,172.00
Total: $1,172.00
Total weight: 35 lbs
1 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-1-4
Brand: The Caldwell Group
Weight: 44 lbs
Price: $1,277.00
Total: $1,277.00
Total weight: 44 lbs
1 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-1-6
Brand: The Caldwell Group
Weight: 72 lbs
Price: $1,456.00
Total: $1,456.00
Total weight: 72 lbs
1 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-1-8
Brand: The Caldwell Group
Weight: 93 lbs
Price: $1,921.00
Total: $1,921.00
Total weight: 93 lbs
1 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-1-10
Brand: The Caldwell Group
Weight: 131 lbs
Price: $2,187.00
Total: $2,187.00
Total weight: 131 lbs
2 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-2-3
Brand: The Caldwell Group
Weight: 45 lbs
Price: $1,274.00
Total: $1,274.00
Total weight: 45 lbs
2 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-2-4
Brand: The Caldwell Group
Weight: 55 lbs
Price: $1,630.00
Total: $1,630.00
Total weight: 55 lbs
2 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-2-6
Brand: The Caldwell Group
Weight: 108 lbs
Price: $1,851.00
Total: $1,851.00
Total weight: 108 lbs
2 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-2-8
Brand: The Caldwell Group
Weight: 140 lbs
Price: $2,357.00
Total: $2,357.00
Total weight: 140 lbs
2 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-2-10
Brand: The Caldwell Group
Weight: 188 lbs
Price: $2,557.00
Total: $2,557.00
Total weight: 188 lbs
3 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-3-3
Brand: The Caldwell Group
Weight: 58 lbs
Price: $1,410.00
Total: $1,410.00
Total weight: 58 lbs
3 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-3-4
Brand: The Caldwell Group
Weight: 87 lbs
Price: $1,920.00
Total: $1,920.00
Total weight: 87 lbs
3 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-3-6
Brand: The Caldwell Group
Weight: 118 lbs
Price: $2,387.00
Total: $2,387.00
Total weight: 118 lbs
3 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-3-8
Brand: The Caldwell Group
Weight: 222 lbs
Price: $2,825.00
Total: $2,825.00
Total weight: 222 lbs
3 Ton Cap. Model 19 Fixed Spread Lifting Beam
Code: 19-3-10
Brand: The Caldwell Group
Weight: 272 lbs
Price: $2,958.00
Total: $2,958.00
Total weight: 272 lbs
