Features & Benefits
The new Caldwell Model ALG - Adjustable Lifting Grab is the variable solution you need on your worksite to handle a wide range of loads.
The Adjustable Lifting Grab can handle loads as narrow as 3", as wide as 60" and any size in between.
Custom configurations are also available. Designed and manufactured to ASME B30.20 and BTH-1, design category B, service class 3 standards.
Ideal for blocks of concrete, stone, rough marble, granite, or any other solid material.
- Heavy-duty design to withstand rugged, high-cycle environments.
- Infinitely adjustable within range.
- Fully adjustable stainless steel Auto-Latch.
- Locating assembly orientates grab on load without operator intervention.
- Replaceable polyurethane pads protect load from lifter damage.
- Color-coded decal indicates the amount of travel remaining for each adjustment
- Position indicating decals for easy adjustment
- Extended handles keep operator away from load and can be adjusted as needed.
- Optional hardened alloy steel dog points available.
- Lifting eye allows for easy hook attachment, self-centers rigging, and will accommodate a fork.
- Designed and manufactured to ASME B30.20, BTH-1, service class 3.

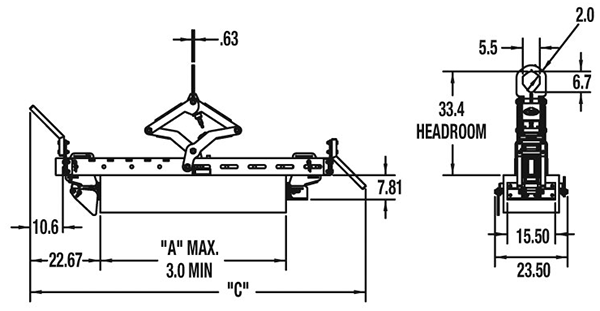

Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| ALG-3-3/24 | 67-1501 Adjustable Lifting Grab (Rated Cap. 6,000 lbs.) | The Caldwell Group | 600 | $6,401.00 | $6,401.00 | 600 | ||
| ALG-3-3/42 | 67-1502 Adjustable Lifting Grab (Rated Cap. 6,000 lbs.) | The Caldwell Group | 650 | $7,758.00 | $7,758.00 | 650 | ||
| ALG-3-3/60 | 67-1503 Adjustable Lifting Grab (Rated Cap. 6,000 lbs.) | The Caldwell Group | 700 | $9,452.00 | $9,452.00 | 700 |
Purchase Below
67-1501 Adjustable Lifting Grab (Rated Cap. 6,000 lbs.)
Code:
ALG-3-3/24
Brand:
The Caldwell Group
Weight:
600
lbs
Price:
$6,401.00
Total:
$6,401.00
Total weight:
600
lbs
67-1502 Adjustable Lifting Grab (Rated Cap. 6,000 lbs.)
Code:
ALG-3-3/42
Brand:
The Caldwell Group
Weight:
650
lbs
Price:
$7,758.00
Total:
$7,758.00
Total weight:
650
lbs
67-1503 Adjustable Lifting Grab (Rated Cap. 6,000 lbs.)
Code:
ALG-3-3/60
Brand:
The Caldwell Group
Weight:
700
lbs
Price:
$9,452.00
Total:
$9,452.00
Total weight:
700
lbs
