Features & Benefits
The M&W Horizontal Lifting Clamp is a clamp designed to safely lift and transport rolled steel plates or bundles of
plates to another location while the plate or bundles of plates remain in a horizontal position.
The clamp when employed in a lift must be used in pairs,
or sets of pairs, or multiples, and attached to the side edges of a plate or bundle of plates positioned parallel to the floor.
The rigging attached to the clamps is usually made up of multi-legged slings connected to a central hoisting point. The angle of the sling leg to the

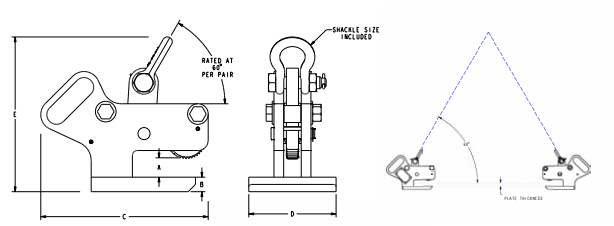

plate should be 60 degrees as illustrated in the diagram below. Lesser angles will necessitate a reduction in WLL of the clamp
plates to another location while the plate or bundles of plates remain in a horizontal position.
The clamp when employed in a lift must be used in pairs,
or sets of pairs, or multiples, and attached to the side edges of a plate or bundle of plates positioned parallel to the floor.
The rigging attached to the clamps is usually made up of multi-legged slings connected to a central hoisting point. The angle of the sling leg to the
plate should be 60 degrees as illustrated in the diagram below. Lesser angles will necessitate a reduction in WLL of the clamp
Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| 24255 | Serrated 1/2 Ton (1,100 LBS) * Each Sold Separately | M&W | 8 | $708.88 | $708.88 | 8 | ||
| 24256 | Serrated 1 1/2 Ton (3,300 LBS) * Each Sold Separately | M&W | 15 | $1,051.90 | $1,051.90 | 15 | ||
| 24775 | Serrated 3 Ton (6,600 LBS) * Each Sold Separately | M&W | 36 | $1,499.73 | $1,499.73 | 36 | ||
| 24774 | Non Marring Grip 1/2 Ton (1,100 LBS) * Each Sold Separately | M&W | 8 | $779.39 | $779.39 | 8 | ||
| 24773 | Non Marring Grip 1 1/2 Ton (3,300 LBS) * Each Sold Separately | M&W | 15 | $1,156.71 | $1,156.71 | 15 | ||
| 24258 | Non Marring Grip 3 Ton (6,600 LBS) * Each Sold Separately | M&W | 36 | $1,650.26 | $1,650.26 | 36 |
Purchase Below
Serrated 1/2 Ton (1,100 LBS) * Each Sold Separately
Code:
24255
Brand:
M&W
Weight:
8
lbs
Price:
$708.88
Total:
$708.88
Total weight:
8
lbs
Serrated 1 1/2 Ton (3,300 LBS) * Each Sold Separately
Code:
24256
Brand:
M&W
Weight:
15
lbs
Price:
$1,051.90
Total:
$1,051.90
Total weight:
15
lbs
Serrated 3 Ton (6,600 LBS) * Each Sold Separately
Code:
24775
Brand:
M&W
Weight:
36
lbs
Price:
$1,499.73
Total:
$1,499.73
Total weight:
36
lbs
Non Marring Grip 1/2 Ton (1,100 LBS) * Each Sold Separately
Code:
24774
Brand:
M&W
Weight:
8
lbs
Price:
$779.39
Total:
$779.39
Total weight:
8
lbs
Non Marring Grip 1 1/2 Ton (3,300 LBS) * Each Sold Separately
Code:
24773
Brand:
M&W
Weight:
15
lbs
Price:
$1,156.71
Total:
$1,156.71
Total weight:
15
lbs
Non Marring Grip 3 Ton (6,600 LBS) * Each Sold Separately
Code:
24258
Brand:
M&W
Weight:
36
lbs
Price:
$1,650.26
Total:
$1,650.26
Total weight:
36
lbs
