Features & Benefits
Locking Type

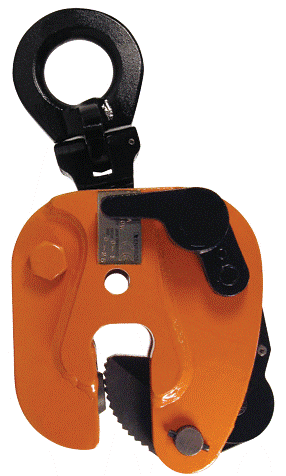

Model LP is an ergonomic vertical lifting clamp capable of
turning a single plate or member from horizontal to vertical
and back to horizontal through
the same 90° arc. Permits side
loading of lifting shackle to 90° by
de-rating of clamp’s capacity. Refer
to Figure 1 for de-rated capacities.
The “Lock Open – Lock Closed”
feature facilitates attaching and
removing the clamp from the plate.
The Model LP incorporates a pivoting shackle that permits
side loading of the lifting shackle at 100% of rated capacity
from vertical to 30°, 75% of rated capacity between 30°
and 45°, and 50% of rated capacity between 45 and 90°. See Figure 1.
- Ergonomic Lifting Clamp
- Single plate turning from horizontal to vertical & back through the same 90° arc
- Permits side loading of lifting shackle to 90° by de-rating clamps capacity
- Lock Open - Lock Closed Feature
- Allows easy attaching & removing of the clamp
- Lightweight, ergonomic version of the Model JP
*Call 866-392-2829 for availability and pricing
Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| LP-01.00-A | 1 ton - Plate Thickness 0-3/4" Model LP Lifting Clamp | JC Renfroe | 5 | $1,427.00 | $1,427.00 | 5 | ||
| LP-02.00-A | 2 ton - Plate Thickness 0-1" Model LP Lifting Clamp | JC Renfroe | 16 | $2,197.00 | $2,197.00 | 16 |
Purchase Below
1 ton - Plate Thickness 0-3/4" Model LP Lifting Clamp
Code:
LP-01.00-A
Brand:
JC Renfroe
Weight:
5
lbs
Price:
$1,427.00
Total:
$1,427.00
Total weight:
5
lbs
2 ton - Plate Thickness 0-1" Model LP Lifting Clamp
Code:
LP-02.00-A
Brand:
JC Renfroe
Weight:
16
lbs
Price:
$2,197.00
Total:
$2,197.00
Total weight:
16
lbs
