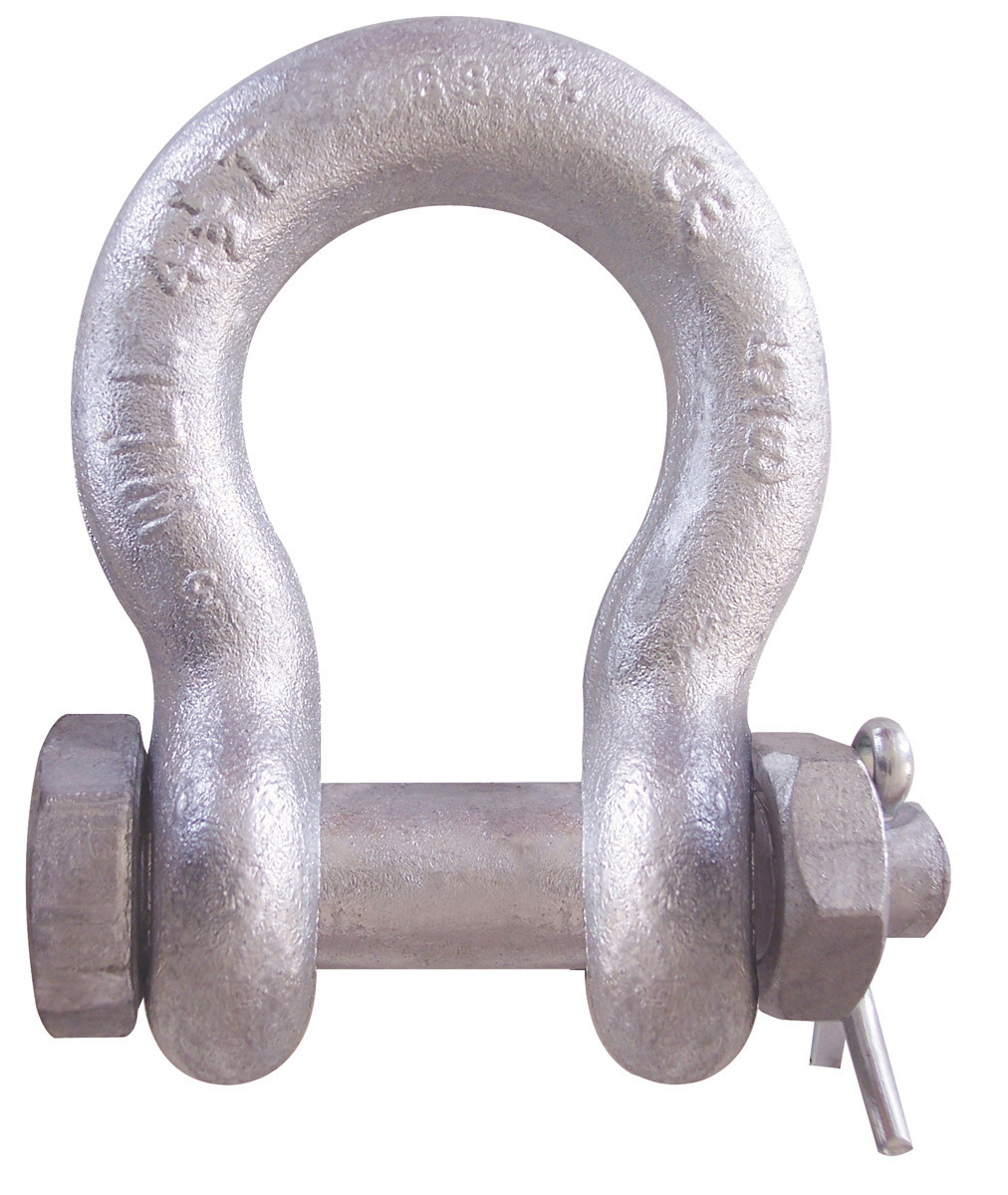

CM Bolt/Nut/Cotter Super Strong Anchor Shackle

Features & Benefits

CM Super Strong Shackles are carbon-type shackles with strength ratings that are 17 to 50% stronger than comparable-sized carbon shackles.
As a result, these shackles are designed with a 6:1 design factor. Anchor shackles can be side loaded or used for multiple connections.

Manufactured from technically advanced micro alloy steel with optimal hardness for strength and ductility.
Shackles show major deformation before failure
Working load limit and traceability codes shown as permanent markings on body
All shackles have alloy quenched and tempered pins
Available in sizes 1/4" to 2-1/2"
Galvanized
Shackles meet dimensional requirements and exceed performance requirements of RR-C-271
Special testing and certification is available upon request at the time of the order
Note: Screw pin and bolt/nut/cotter shackles have a 6:1 design factor. Round pin shackles have 5:1 design factor.
CM Smart ID RFID technology is available as an option on screw pin anchor shackles sizes 1/2" to 1-3/4" and bolt, nut & cotter shackles sizes 3/4" to 1-3/4"
FULL line of CM shackles available please call for price and availability 866-392-2829

Technical Specs

Part Number	Size D (in.)	Working Load Limit (ton)	Weight (lbs)	Dimensions (in)
P	E	W	R	L	B (min.)
M846G	1/4"	3/4	0.12	0.31	0.36	0.47	0.75	1.13	0.75
M847G	5/16"	1	0.20	0.38	0.45	0.53	0.84	1.25	0.81
M848G	3/8"	1-1/2	0.30	0.44	0.52	0.66	1.00	1.40	1.00
M849G	7/16"	2	0.50	0.50	0.58	0.72	1.15	1.69	1.19
M850G	1/2"	3	0.75	0.63	0.70	0.84	1.34	1.94	1.38
M851G	5/8"	4-1/2	1.30	0.75	0.83	1.06	1.66	2.41	1.63
M852G	3/4"	6-1/2	2.30	0.88	0.95	1.28	1.94	2.84	1.89
M853G	7/8"	8-1/2	3.50	1.00	1.09	1.44	2.14	3.31	2.06
M854G	1"	10	5.00	1.13	1.22	1.72	2.44	3.75	2.52
M855G	1-1/8"	12	7.00	1.25	1.36	1.84	2.66	4.02	2.69
M856G	1-1/4"	14	9.50	1.38	1.52	2.03	3.15	4.63	2.88
M866G	1-3/8"	17	12.50	1.50	1.65	2.25	3.25	5.19	3.25
M857G	1-1/2"	20	17.20	1.63	1.77	2.41	3.50	5.63	3.50
M885G	1-5/8"	24	23.50	1.75	1.88	2.66	3.91	6.13	4.13
M877G	1-3/4"	30	27.70	2.00	2.13	2.94	4.06	6.97	4.75
M858G	2"	35	39.00	2.25	2.38	3.28	4.51	7.44	5.50

Purchase Below

Part Number	Description	Brand	Weight	Price	Quantity	Total	Total weight
M846G	1/4" Bolt/Nut/Cotter Super Strong Anchor Shackle WLL 3/4 ton	CM	0.12	$12.27		$12.27	0.12
M847G	5/16" Bolt/Nut/Cotter Super Strong Anchor Shackle WLL 1 ton	CM	0.20	$13.16		$13.16	0.20
M848G	3/8" Bolt/Nut/Cotter Super Strong Anchor Shackle WLL 1 1/2 ton	CM	0.30	$15.68		$15.68	0.30
M849G	7/16" Bolt/Nut/Cotter Super Strong Anchor Shackle WLL 2 ton	CM	0.50	$19.10		$19.10	0.50
M850G	1/2" Bolt/Nut/Cotter Super Strong Anchor Shackle WLL 3 ton	CM	0.75	$28.67		$28.67	0.75
M851G	5/8" Bolt/Nut/Cotter Super Strong Anchor Shackle WLL 4 1/2 ton	CM	1	$40.60		$40.60	1
M852G	3/4" Bolt/Nut/Cotter Super Strong Anchor Shackle WLL 6 1/2 ton	CM	2	$58.67		$58.67	2
M853G	7/8" Bolt/Nut/Cotter Super Strong Anchor Shackle WLL 8 1/2 ton	CM	4	$81.56		$81.56	4
M854G	1" Bolt/Nut/Cotter Super Strong Anchor Shackle WLL 10 ton	CM	5	$110.05		$110.05	5
M855G	1-1/8" Bolt/Nut/Cotter Super Strong Anchor Shackle WLL 12 ton	CM	7	$143.95		$143.95	7
M856G	1-1/4" Bolt/Nut/Cotter Super Strong Anchor Shackle WLL 14 ton	CM	10	$195.22		$195.22	10
M866G	1-3/8" Bolt/Nut/Cotter Super Strong Anchor Shackle WLL 17 ton	CM	13	$260.54		$260.54	13
M857G	1-1/2" Bolt/Nut/Cotter Super Strong Anchor Shackle WLL 20 ton	CM	17	$319.20		$319.20	17
M885G	1-5/8" Bolt/Nut/Cotter Super Strong Anchor Shackle WLL 24 ton	CM	24	$405.81		$405.81	24
M877G	1-3/4" Bolt/Nut/Cotter Super Strong Anchor Shackle WLL 30 ton	CM	28	$473.14		$473.14	28
M858G	2" Bolt/Nut/Cotter Super Strong Anchor Shackle WLL 35 ton	CM	39	$679.29		$679.29	39
