Features & Benefits
- Manufactured to exceed all ASME B30.20 and OSHA regulations.
- Painted safety yellow for increased visibility.
- Do not side load above angles of 45 from vertical.
- Durable construction ideally suited to jobsite or warehouse use.
- Made in U.S.A.
- Custom designs available - call for engineering.
- ALL lifting equipment individually proof loaded per OSHA requirements.
- Refer to side loading table below for reduction factors for side loading applications.
- Clamps to be used for lifting, pulling or as an anchor point.
- Ratings apply to clamps only. User is responsible for engineering calculations for all support steelwork.
- WARNING: All clamps must be correctly applied to the beam by a competent person and fully hand tightened.

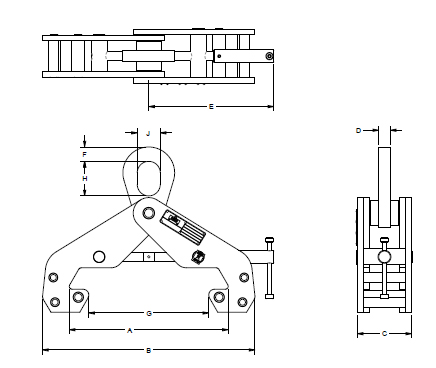

Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| 13659 | Large Frame Beam Clamp WLL 15,680 lbs. (13.38" Max Slip Over Width) | M&W | 34 | $1,001.25 | $1,001.25 | 34 | ||
| 13674 | Large Frame Beam Clamp WLL 22,400 lbs. (13.38" Max Slip Over Width) | M&W | 43 | $1,220.27 | $1,220.27 | 43 |
Purchase Below
Large Frame Beam Clamp WLL 15,680 lbs. (13.38" Max Slip Over Width)
Code:
13659
Brand:
M&W
Weight:
34
lbs
Price:
$1,001.25
Total:
$1,001.25
Total weight:
34
lbs
Large Frame Beam Clamp WLL 22,400 lbs. (13.38" Max Slip Over Width)
Code:
13674
Brand:
M&W
Weight:
43
lbs
Price:
$1,220.27
Total:
$1,220.27
Total weight:
43
lbs
