Features & Benefits
- Manufactured to exceed all ASME B30.20 and OSHA regulations.
- Painted safety yellow for increased visibility.
- ALL Lifting Beams proof loaded and shipped with certification paperwork.
- Durable construction ideally suited to jobsite or warehouse use.
- Made in U.S.A.
- Custom designs available - call for engineering.
- ALL lifting equipment individually proof loaded per OSHA requirements.
- All dimensions in inches unless otherwise noted.

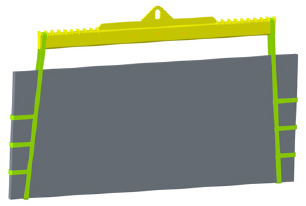

- Used to lift wood cased glass or glass panels or similar material when used with proper slings.
- Custom configurations available - call for ordering assistance

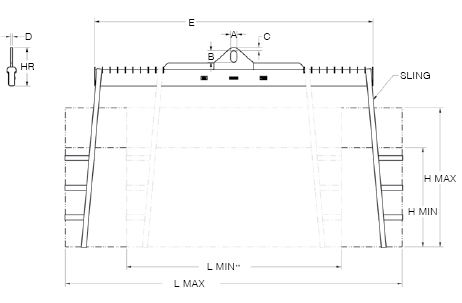

Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| 22875 | Glass Panel Lift Beam 88"-144" WLL 5,000 lbs. | M&W | 315 | $2,626.18 | $2,626.18 | 315 | ||
| 22876 | Glass Panel Lift Beam 130"-204" WLL 10,000 lbs. | M&W | 795 | $5,155.60 | $5,155.60 | 795 | ||
| 22877 | Glass Panel Lifting Sling Max / Min Height 36"-54" WLL 6,000 lbs. each | M&W | 10 | $926.07 | $926.07 | 10 | ||
| 22878 | Glass Panel Lifting Sling Max / Min Height 60"-84" WLL 6,000 lbs. each | M&W | 11 | $1,091.93 | $1,091.93 | 11 | ||
| 22879 | Glass Panel Lifting Sling Max / Min Height 72"-100" WLL 6,000 lbs. each | M&W | 12 | $1,133.40 | $1,133.40 | 12 | ||
| 22880 | Glass Panel Lifting Sling Max / Min Height 100"-130" WLL 6,000 lbs. each | M&W | 13 | $1,230.16 | $1,230.16 | 13 |
Purchase Below
Glass Panel Lift Beam 88"-144" WLL 5,000 lbs.
Code:
22875
Brand:
M&W
Weight:
315
lbs
Price:
$2,626.18
Total:
$2,626.18
Total weight:
315
lbs
Glass Panel Lift Beam 130"-204" WLL 10,000 lbs.
Code:
22876
Brand:
M&W
Weight:
795
lbs
Price:
$5,155.60
Total:
$5,155.60
Total weight:
795
lbs
Glass Panel Lifting Sling Max / Min Height 36"-54" WLL 6,000 lbs. each
Code:
22877
Brand:
M&W
Weight:
10
lbs
Price:
$926.07
Total:
$926.07
Total weight:
10
lbs
Glass Panel Lifting Sling Max / Min Height 60"-84" WLL 6,000 lbs. each
Code:
22878
Brand:
M&W
Weight:
11
lbs
Price:
$1,091.93
Total:
$1,091.93
Total weight:
11
lbs
Glass Panel Lifting Sling Max / Min Height 72"-100" WLL 6,000 lbs. each
Code:
22879
Brand:
M&W
Weight:
12
lbs
Price:
$1,133.40
Total:
$1,133.40
Total weight:
12
lbs
Glass Panel Lifting Sling Max / Min Height 100"-130" WLL 6,000 lbs. each
Code:
22880
Brand:
M&W
Weight:
13
lbs
Price:
$1,230.16
Total:
$1,230.16
Total weight:
13
lbs
