Features & Benefits
- Non-welded Construction.
- No Minimum Load
- Camming Stationary Jaw
- Camming Stationary Jaw Automatically Returns to Preload Position
- Self Locking Jaw Closed Mechanism
- Self Locking Jaw Open Mechanism
- 0 - 180 Degree Turning Permissible
- Clamp can be mounted to the work piece without the need for the operator to put hands in the fall path of the work piece
- Designed with a 5 -1 Design Factor Criteria
- ASME B30.20 Operation Compliant
- ASME B30.BTH -1 Design Compliant
- Working Load Limit (WLL) Clearly and Legibly Marked on the Clamp
- Serial Number Clearly and Legibly Marked on the Clamp
- Materials of Manufacture Remain Stable Under Load
- Clamps Can Be Used to Lift Materials with a Surface Hardness of up to 400 Brinell.
- Clamps must be used in accordance with the Instructions in the Operator Manual.
- Operating temperature -40 to 170 Fahrenheit.
Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| 21718 | Jaw 0 - 0.5 Hinged Plate Clamp (WLL 0 - 1,100 lbs) | M&W | 7 | $981.36 | $981.36 | 7 | ||
| 21719 | Jaw 0.5 - 1.0 Hinged Plate Clamp (WLL 0 - 1,100 lbs) | M&W | 7 | $1,009.00 | $1,009.00 | 7 | ||
| 21720 | Jaw 1.0 - 1.5 Hinged Plate Clamp (WLL 0 - 1,100 lbs) | M&W | 7 | $1,036.65 | $1,036.65 | 7 | ||

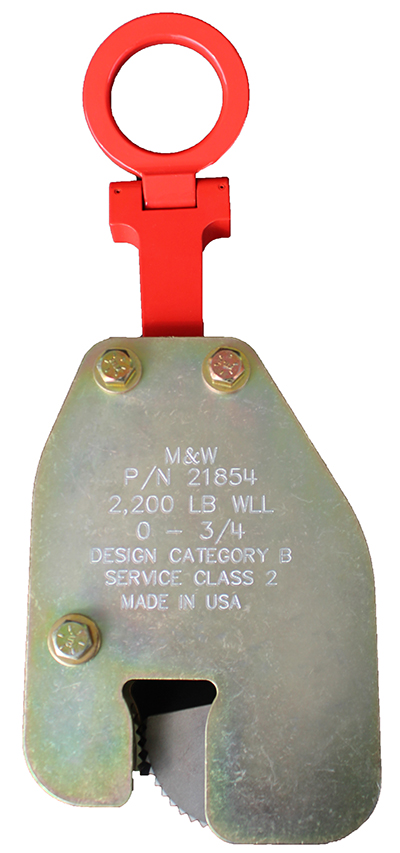

| 21854 | Jaw 0 - 0.75 Hinged Plate Clamp (WLL 0 - 2,200 lbs) | M&W | 12 | $1,313.09 | $1,313.09 | 12 | ||
| 21855 | Jaw 0.75 - 1.5 Hinged Plate Clamp (WLL 0 - 2,200 lbs) | M&W | 12 | $1,340.73 | $1,340.73 | 12 | ||
| 21856 | Jaw 1.5-2.25 Hinged Plate Clamp (WLL 0 - 2,200 lbs) | M&W | 13 | $1,368.38 | $1,368.38 | 13 | ||
| 21915 | Jaw 0 - 1.0 Hinged Plate Clamp (WLL 0 - 4,400 lbs) | M&W | 23 | $1,661.40 | $1,661.40 | 23 | ||
| 21916 | Jaw 1.0 - 2.0 Hinged Plate Clamp (WLL 0 - 4,400 lbs) | M&W | 24 | $1,735.21 | $1,735.21 | 24 | ||
| 21917 | Jaw 2.0 - 3.0 Hinged Plate Clamp (WLL 0 - 4,400 lbs) | M&W | 26 | $1,808.74 | $1,808.74 | 26 | ||
| 22688 | Jaw 0 - 1.5 Hinged Plate Clamp (WLL 0 - 11,000 lbs) | M&W | 79 | $4,054.44 | $4,054.44 | 79 | ||
| 22689 | Jaw 1.5 - 3.0 Hinged Plate Clamp (WLL 0 - 11,000 lbs) | M&W | 82 | $4,107.10 | $4,107.10 | 82 | ||
| 22690 | Jaw 3 - 4.5 Hinged Plate Clamp (WLL 0 - 11,000 lbs) | M&W | 85 | $4,159.75 | $4,159.75 | 85 |
Purchase Below
Jaw 0 - 0.5 Hinged Plate Clamp (WLL 0 - 1,100 lbs)
Code:
21718
Brand:
M&W
Weight:
7
lbs
Price:
$981.36
Total:
$981.36
Total weight:
7
lbs
Jaw 0.5 - 1.0 Hinged Plate Clamp (WLL 0 - 1,100 lbs)
Code:
21719
Brand:
M&W
Weight:
7
lbs
Price:
$1,009.00
Total:
$1,009.00
Total weight:
7
lbs
Jaw 1.0 - 1.5 Hinged Plate Clamp (WLL 0 - 1,100 lbs)
Code:
21720
Brand:
M&W
Weight:
7
lbs
Price:
$1,036.65
Total:
$1,036.65
Total weight:
7
lbs
Jaw 0 - 0.75 Hinged Plate Clamp (WLL 0 - 2,200 lbs)
Code:
21854
Brand:
M&W
Weight:
12
lbs
Price:
$1,313.09
Total:
$1,313.09
Total weight:
12
lbs
Jaw 0.75 - 1.5 Hinged Plate Clamp (WLL 0 - 2,200 lbs)
Code:
21855
Brand:
M&W
Weight:
12
lbs
Price:
$1,340.73
Total:
$1,340.73
Total weight:
12
lbs
Jaw 1.5-2.25 Hinged Plate Clamp (WLL 0 - 2,200 lbs)
Code:
21856
Brand:
M&W
Weight:
13
lbs
Price:
$1,368.38
Total:
$1,368.38
Total weight:
13
lbs
Jaw 0 - 1.0 Hinged Plate Clamp (WLL 0 - 4,400 lbs)
Code:
21915
Brand:
M&W
Weight:
23
lbs
Price:
$1,661.40
Total:
$1,661.40
Total weight:
23
lbs
Jaw 1.0 - 2.0 Hinged Plate Clamp (WLL 0 - 4,400 lbs)
Code:
21916
Brand:
M&W
Weight:
24
lbs
Price:
$1,735.21
Total:
$1,735.21
Total weight:
24
lbs
Jaw 2.0 - 3.0 Hinged Plate Clamp (WLL 0 - 4,400 lbs)
Code:
21917
Brand:
M&W
Weight:
26
lbs
Price:
$1,808.74
Total:
$1,808.74
Total weight:
26
lbs
Jaw 0 - 1.5 Hinged Plate Clamp (WLL 0 - 11,000 lbs)
Code:
22688
Brand:
M&W
Weight:
79
lbs
Price:
$4,054.44
Total:
$4,054.44
Total weight:
79
lbs
Jaw 1.5 - 3.0 Hinged Plate Clamp (WLL 0 - 11,000 lbs)
Code:
22689
Brand:
M&W
Weight:
82
lbs
Price:
$4,107.10
Total:
$4,107.10
Total weight:
82
lbs
Jaw 3 - 4.5 Hinged Plate Clamp (WLL 0 - 11,000 lbs)
Code:
22690
Brand:
M&W
Weight:
85
lbs
Price:
$4,159.75
Total:
$4,159.75
Total weight:
85
lbs
