Features & Benefits
Drop forged steel. Heat treated after forging. Available In: Self-colored, zinc plated, or hot galvanized.
Plain or shoulder type, blank or threaded. Vertical loads are based on a safety factor of 5 to 1.
Variation in quantity: on special items we reserve the right to a maximum 10% variation for allowances in manufacture.
Working load limits for eye bolts are based on a straight vertical lift in a gradually increasing manner.

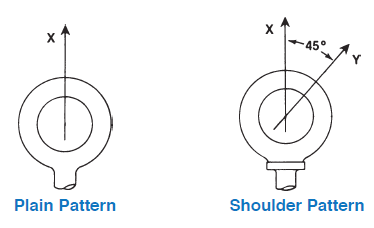

Angular lifts will significantly lower working load limits (see Shoulder Pattern) and should be avoided whenever possible.
If an angular lift is required, a properly seated Shoulder Pattern eye bolt must be used.
Loads should always be applied to eye bolts in the plane of the eye, not at an angle to this plane.
Angular lifts must never be more than a 45 pull.
Plain or shoulder type, blank or threaded. Vertical loads are based on a safety factor of 5 to 1.
Variation in quantity: on special items we reserve the right to a maximum 10% variation for allowances in manufacture.
Working load limits for eye bolts are based on a straight vertical lift in a gradually increasing manner.
Angular lifts will significantly lower working load limits (see Shoulder Pattern) and should be avoided whenever possible.
If an angular lift is required, a properly seated Shoulder Pattern eye bolt must be used.
Loads should always be applied to eye bolts in the plane of the eye, not at an angle to this plane.
Angular lifts must never be more than a 45 pull.
WARNING! ANGULAR LIFTS SHOULD BE AVOIDED WHENEVER POSSIBLE.

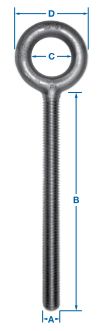

Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| K2003-B | 3/8"-16 x 2-1/2" Long Shank Eye Bolts Plain Pattern | Ken Forging | 0.20 | $6.71 | $6.71 | 0.20 | ||
| K2003-3 | 3/8"-16 x 3" Long Shank Eye Bolts Plain Pattern | Ken Forging | 0.21 | $6.85 | $6.85 | 0.21 | ||
| K2003-6 | 3/8"-16 x 6" Long Shank Eye Bolts Plain Pattern | Ken Forging | 0.24 | $7.35 | $7.35 | 0.24 | ||
| K2005-B | 1/2"-13 x 2-1/2" Long Shank Eye Bolts Plain Pattern | Ken Forging | 0.44 | $8.40 | $8.40 | 0.44 | ||
| K2005-3 | 1/2"-13 x 3" Long Shank Eye Bolts Plain Pattern | Ken Forging | 0.45 | $8.42 | $8.42 | 0.45 | ||
| K2005-6 | 1/2"-13 x 6" Long Shank Eye Bolts Plain Pattern | Ken Forging | 0.50 | $8.73 | $8.73 | 0.50 | ||
| K2007-B | 5/8"-11 x 2-1/2" Long Shank Eye Bolts Plain Pattern | Ken Forging | 0.76 | $12.17 | $12.17 | 0.76 | ||
| K2007-3 | 5/8"-11 x 3" Long Shank Eye Bolts Plain Pattern | Ken Forging | 0.81 | $12.29 | $12.29 | 0.81 | ||
| K2007-6 | 5/8"-11 x 6" Long Shank Eye Bolts Plain Pattern | Ken Forging | 0.89 | $12.89 | $12.89 | 0.89 | ||
| K2008-B | 3/4"-10 x 2-1/2" Long Shank Eye Bolts Plain Pattern | Ken Forging | 1 | $15.05 | $15.05 | 1 | ||
| K2008-3 | 3/4"-10 x 3" Long Shank Eye Bolts Plain Pattern | Ken Forging | 1 | $15.13 | $15.13 | 1 | ||
| K2008-6 | 3/4"-10 x 6" Long Shank Eye Bolts Plain Pattern | Ken Forging | 1 | $15.83 | $15.83 | 1 | ||
| K2009-6 | 7/8"-9 x 6" Long Shank Eye Bolts Plain Pattern | Ken Forging | 2 | $23.83 | $23.83 | 2 | ||
| K2021-4 | 1/4"-20 x 4" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 0.09 | $6.28 | $6.28 | 0.09 | ||
| K2022-B | 5/16"-18 x 2-1/2" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 0.13 | $6.35 | $6.35 | 0.13 | ||
| K2022-4 | 5/16"-18 x 4" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 0.16 | $6.40 | $6.40 | 0.16 | ||
| K2023-B | 3/8"-16 x 2-1/2" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 0.20 | $6.71 | $6.71 | 0.20 | ||
| K2023-3 | 3/8"-16 x 3" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 0.21 | $6.85 | $6.85 | 0.21 | ||
| K2023-4 | 3/8"-16 x 4" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 0.24 | $7.00 | $7.00 | 0.24 | ||
| K2023-6 | 3/8"-16 x 6" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 0.29 | $7.35 | $7.35 | 0.29 | ||
| K2024-6 | 7/16"-14 x 6" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 0.39 | $7.87 | $7.87 | 0.39 | ||
| K2025-B | 1/2"-13 x 2-1/2" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 0.44 | $8.40 | $8.40 | 0.44 | ||
| K2025-3 | 1/2"-13 x 3" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 0.45 | $8.42 | $8.42 | 0.45 | ||
| K2025-4 | 1/2"-13 x 4" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 0.50 | $8.45 | $8.45 | 0.50 | ||
| K2025-6 | 1/2"-13 x 6" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 0.59 | $8.73 | $8.73 | 0.59 | ||
| K2027-B | 5/8"-11 x 2-1/2" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 0.76 | $12.17 | $12.17 | 0.76 | ||
| K2027-3 | 5/8"-11 x 3" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 0.81 | $12.29 | $12.29 | 0.81 | ||
| K2027-4 | 5/8"-11 x 4" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 0.89 | $12.49 | $12.49 | 0.89 | ||
| K2027-6 | 5/8"-11 x 6" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 0.99 | $12.89 | $12.89 | 0.99 | ||
| K2028-B | 3/4"-10 x 2-1/2" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 1 | $15.05 | $15.05 | 1 | ||
| K2028-3 | 3/4"-10 x 3" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 1 | $15.13 | $15.13 | 1 | ||
| K2028-4 | 3/4"-10 x 4" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 1 | $15.38 | $15.38 | 1 | ||
| K2028-6 | 3/4"-10 x 6" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 1 | $15.83 | $15.83 | 1 | ||
| K2030-6 | 1"-8 x 6" Long Shank Eye Bolts Shoulder Pattern | Ken Forging | 3 | $35.40 | $35.40 | 3 |
Purchase Below
3/8"-16 x 2-1/2" Long Shank Eye Bolts Plain Pattern
Code:
K2003-B
Brand:
Ken Forging
Weight:
0.20
lb
Price:
$6.71
Total:
$6.71
Total weight:
0.20
lb
3/8"-16 x 3" Long Shank Eye Bolts Plain Pattern
Code:
K2003-3
Brand:
Ken Forging
Weight:
0.21
lb
Price:
$6.85
Total:
$6.85
Total weight:
0.21
lb
3/8"-16 x 6" Long Shank Eye Bolts Plain Pattern
Code:
K2003-6
Brand:
Ken Forging
Weight:
0.24
lb
Price:
$7.35
Total:
$7.35
Total weight:
0.24
lb
1/2"-13 x 2-1/2" Long Shank Eye Bolts Plain Pattern
Code:
K2005-B
Brand:
Ken Forging
Weight:
0.44
lb
Price:
$8.40
Total:
$8.40
Total weight:
0.44
lb
1/2"-13 x 3" Long Shank Eye Bolts Plain Pattern
Code:
K2005-3
Brand:
Ken Forging
Weight:
0.45
lb
Price:
$8.42
Total:
$8.42
Total weight:
0.45
lb
1/2"-13 x 6" Long Shank Eye Bolts Plain Pattern
Code:
K2005-6
Brand:
Ken Forging
Weight:
0.50
lb
Price:
$8.73
Total:
$8.73
Total weight:
0.50
lb
5/8"-11 x 2-1/2" Long Shank Eye Bolts Plain Pattern
Code:
K2007-B
Brand:
Ken Forging
Weight:
0.76
lb
Price:
$12.17
Total:
$12.17
Total weight:
0.76
lb
5/8"-11 x 3" Long Shank Eye Bolts Plain Pattern
Code:
K2007-3
Brand:
Ken Forging
Weight:
0.81
lb
Price:
$12.29
Total:
$12.29
Total weight:
0.81
lb
5/8"-11 x 6" Long Shank Eye Bolts Plain Pattern
Code:
K2007-6
Brand:
Ken Forging
Weight:
0.89
lb
Price:
$12.89
Total:
$12.89
Total weight:
0.89
lb
3/4"-10 x 2-1/2" Long Shank Eye Bolts Plain Pattern
Code:
K2008-B
Brand:
Ken Forging
Weight:
1
lb
Price:
$15.05
Total:
$15.05
Total weight:
1
lb
3/4"-10 x 3" Long Shank Eye Bolts Plain Pattern
Code:
K2008-3
Brand:
Ken Forging
Weight:
1
lb
Price:
$15.13
Total:
$15.13
Total weight:
1
lb
3/4"-10 x 6" Long Shank Eye Bolts Plain Pattern
Code:
K2008-6
Brand:
Ken Forging
Weight:
1
lb
Price:
$15.83
Total:
$15.83
Total weight:
1
lb
7/8"-9 x 6" Long Shank Eye Bolts Plain Pattern
Code:
K2009-6
Brand:
Ken Forging
Weight:
2
lbs
Price:
$23.83
Total:
$23.83
Total weight:
2
lbs
1/4"-20 x 4" Long Shank Eye Bolts Shoulder Pattern
Code:
K2021-4
Brand:
Ken Forging
Weight:
0.09
lb
Price:
$6.28
Total:
$6.28
Total weight:
0.09
lb
5/16"-18 x 2-1/2" Long Shank Eye Bolts Shoulder Pattern
Code:
K2022-B
Brand:
Ken Forging
Weight:
0.13
lb
Price:
$6.35
Total:
$6.35
Total weight:
0.13
lb
5/16"-18 x 4" Long Shank Eye Bolts Shoulder Pattern
Code:
K2022-4
Brand:
Ken Forging
Weight:
0.16
lb
Price:
$6.40
Total:
$6.40
Total weight:
0.16
lb
3/8"-16 x 2-1/2" Long Shank Eye Bolts Shoulder Pattern
Code:
K2023-B
Brand:
Ken Forging
Weight:
0.20
lb
Price:
$6.71
Total:
$6.71
Total weight:
0.20
lb
3/8"-16 x 3" Long Shank Eye Bolts Shoulder Pattern
Code:
K2023-3
Brand:
Ken Forging
Weight:
0.21
lb
Price:
$6.85
Total:
$6.85
Total weight:
0.21
lb
3/8"-16 x 4" Long Shank Eye Bolts Shoulder Pattern
Code:
K2023-4
Brand:
Ken Forging
Weight:
0.24
lb
Price:
$7.00
Total:
$7.00
Total weight:
0.24
lb
3/8"-16 x 6" Long Shank Eye Bolts Shoulder Pattern
Code:
K2023-6
Brand:
Ken Forging
Weight:
0.29
lb
Price:
$7.35
Total:
$7.35
Total weight:
0.29
lb
7/16"-14 x 6" Long Shank Eye Bolts Shoulder Pattern
Code:
K2024-6
Brand:
Ken Forging
Weight:
0.39
lb
Price:
$7.87
Total:
$7.87
Total weight:
0.39
lb
1/2"-13 x 2-1/2" Long Shank Eye Bolts Shoulder Pattern
Code:
K2025-B
Brand:
Ken Forging
Weight:
0.44
lb
Price:
$8.40
Total:
$8.40
Total weight:
0.44
lb
1/2"-13 x 3" Long Shank Eye Bolts Shoulder Pattern
Code:
K2025-3
Brand:
Ken Forging
Weight:
0.45
lb
Price:
$8.42
Total:
$8.42
Total weight:
0.45
lb
1/2"-13 x 4" Long Shank Eye Bolts Shoulder Pattern
Code:
K2025-4
Brand:
Ken Forging
Weight:
0.50
lb
Price:
$8.45
Total:
$8.45
Total weight:
0.50
lb
1/2"-13 x 6" Long Shank Eye Bolts Shoulder Pattern
Code:
K2025-6
Brand:
Ken Forging
Weight:
0.59
lb
Price:
$8.73
Total:
$8.73
Total weight:
0.59
lb
5/8"-11 x 2-1/2" Long Shank Eye Bolts Shoulder Pattern
Code:
K2027-B
Brand:
Ken Forging
Weight:
0.76
lb
Price:
$12.17
Total:
$12.17
Total weight:
0.76
lb
5/8"-11 x 3" Long Shank Eye Bolts Shoulder Pattern
Code:
K2027-3
Brand:
Ken Forging
Weight:
0.81
lb
Price:
$12.29
Total:
$12.29
Total weight:
0.81
lb
5/8"-11 x 4" Long Shank Eye Bolts Shoulder Pattern
Code:
K2027-4
Brand:
Ken Forging
Weight:
0.89
lb
Price:
$12.49
Total:
$12.49
Total weight:
0.89
lb
5/8"-11 x 6" Long Shank Eye Bolts Shoulder Pattern
Code:
K2027-6
Brand:
Ken Forging
Weight:
0.99
lb
Price:
$12.89
Total:
$12.89
Total weight:
0.99
lb
3/4"-10 x 2-1/2" Long Shank Eye Bolts Shoulder Pattern
Code:
K2028-B
Brand:
Ken Forging
Weight:
1
lb
Price:
$15.05
Total:
$15.05
Total weight:
1
lb
3/4"-10 x 3" Long Shank Eye Bolts Shoulder Pattern
Code:
K2028-3
Brand:
Ken Forging
Weight:
1
lb
Price:
$15.13
Total:
$15.13
Total weight:
1
lb
3/4"-10 x 4" Long Shank Eye Bolts Shoulder Pattern
Code:
K2028-4
Brand:
Ken Forging
Weight:
1
lb
Price:
$15.38
Total:
$15.38
Total weight:
1
lb
3/4"-10 x 6" Long Shank Eye Bolts Shoulder Pattern
Code:
K2028-6
Brand:
Ken Forging
Weight:
1
lb
Price:
$15.83
Total:
$15.83
Total weight:
1
lb
1"-8 x 6" Long Shank Eye Bolts Shoulder Pattern
Code:
K2030-6
Brand:
Ken Forging
Weight:
3
lbs
Price:
$35.40
Total:
$35.40
Total weight:
3
lbs
