ALPHA S Series 1-Phase 115V/60Hz

Features & Benefits

ALPHA S SERIES TYPE : 1 SPEED, 1 PHASE SINGLE VOLTAGE, 115V/60HZ, HOOK to HOOK


  • The aluminum die cast body is designed for environments where noise levels must be kept to a minimum
  • Compact design with low headroom, net weight of the hoists range from 32 lbs. with a standard 10 lift
  • Alpha S series has a single brake design
  • Overload and overwind safety device.  This device ensures stability when the hoist is over wound, or over lowered.
    The device also protects against an overload of the unit, helping to prevent damage to the hoist and injury to personnel.
  • A special surface treated load chain for corrosion resistance
  • The load chain is extremely durable, adhering to the strict German DIN 5684 standard
  • Upper and lower hooks with safety latches are designed to slowly stretch in the event of an overload, allowing for a visual indicator to the operator, to cease operation.
    The bottom hook has a thrust bearing to reduce stress on the lower block, while under load.
  • The pendant controls contactor is designed for frequent use, guaranteeing excellent durability, even when inching a load.
  • Rating JIS/ISO M4, FEM 1AM, ASME H3 Motor, IP54 Hoist Protection, IP65 NEMA 4X Pendant Protection
  • Temperature range -10 to 40 C,  14 to 104 F

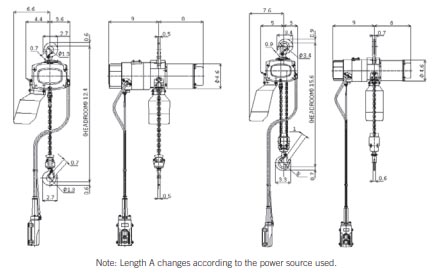

  • Click Here to view expanded specifications image
show image
select image
select image

Technical Specs

Purchase Below

Part Number Description Brand Weight Price Quantity Total Total weight
S-006x10 10' Alpha S Series Electric Chain Hoist Elephant Lifting Products 32 $2,837.46 $2,837.46 32
S-006x15 15' Alpha S Series Electric Chain Hoist Elephant Lifting Products 34 $2,969.70 $2,969.70 34
S-006x20 20' Alpha S Series Electric Chain Hoist Elephant Lifting Products 36 $3,104.22 $3,104.22 36
S-01x10 10' Alpha S Series Electric Chain Hoist Elephant Lifting Products 32 $2,834.04 $2,834.04 32
S-01x15 15' Alpha S Series Electric Chain Hoist Elephant Lifting Products 34 $2,967.42 $2,967.42 34
S-01x20 20' Alpha S Series Electric Chain Hoist Elephant Lifting Products 36 $3,100.80 $3,100.80 36
S-016x10 10' Alpha S Series Electric Chain Hoist Elephant Lifting Products 36 $3,423.42 $3,423.42 36
S-016x15 15' Alpha S Series Electric Chain Hoist Elephant Lifting Products 38 $3,565.92 $3,565.92 38
S-016x20 20' Alpha S Series Electric Chain Hoist Elephant Lifting Products 40 $3,710.70 $3,710.70 40
S-025x10 10' Alpha S Series Electric Chain Hoist Elephant Lifting Products 36 $3,541.98 $3,541.98 36
S-025x15 15' Alpha S Series Electric Chain Hoist Elephant Lifting Products 38 $3,682.20 $3,682.20 38
S-025x20 20' Alpha S Series Electric Chain Hoist Elephant Lifting Products 40 $3,824.70 $3,824.70 40
S-05x10 10' Alpha S Series Electric Chain Hoist Elephant Lifting Products 44 $4,393.56 $4,393.56 44
S-05x15 15' Alpha S Series Electric Chain Hoist Elephant Lifting Products 47 $4,632.96 $4,632.96 47
S-05x20 20' Alpha S Series Electric Chain Hoist Elephant Lifting Products 50 $4,871.22 $4,871.22 50

Purchase Below

10' Alpha S Series Electric Chain Hoist
Code: S-006x10
Brand: Elephant Lifting Products
Weight: 32 lbs
Price: $2,837.46
Total: $2,837.46
Total weight: 32 lbs
15' Alpha S Series Electric Chain Hoist
Code: S-006x15
Brand: Elephant Lifting Products
Weight: 34 lbs
Price: $2,969.70
Total: $2,969.70
Total weight: 34 lbs
20' Alpha S Series Electric Chain Hoist
Code: S-006x20
Brand: Elephant Lifting Products
Weight: 36 lbs
Price: $3,104.22
Total: $3,104.22
Total weight: 36 lbs
10' Alpha S Series Electric Chain Hoist
Code: S-01x10
Brand: Elephant Lifting Products
Weight: 32 lbs
Price: $2,834.04
Total: $2,834.04
Total weight: 32 lbs
15' Alpha S Series Electric Chain Hoist
Code: S-01x15
Brand: Elephant Lifting Products
Weight: 34 lbs
Price: $2,967.42
Total: $2,967.42
Total weight: 34 lbs
20' Alpha S Series Electric Chain Hoist
Code: S-01x20
Brand: Elephant Lifting Products
Weight: 36 lbs
Price: $3,100.80
Total: $3,100.80
Total weight: 36 lbs
10' Alpha S Series Electric Chain Hoist
Code: S-016x10
Brand: Elephant Lifting Products
Weight: 36 lbs
Price: $3,423.42
Total: $3,423.42
Total weight: 36 lbs
15' Alpha S Series Electric Chain Hoist
Code: S-016x15
Brand: Elephant Lifting Products
Weight: 38 lbs
Price: $3,565.92
Total: $3,565.92
Total weight: 38 lbs
20' Alpha S Series Electric Chain Hoist
Code: S-016x20
Brand: Elephant Lifting Products
Weight: 40 lbs
Price: $3,710.70
Total: $3,710.70
Total weight: 40 lbs
10' Alpha S Series Electric Chain Hoist
Code: S-025x10
Brand: Elephant Lifting Products
Weight: 36 lbs
Price: $3,541.98
Total: $3,541.98
Total weight: 36 lbs
15' Alpha S Series Electric Chain Hoist
Code: S-025x15
Brand: Elephant Lifting Products
Weight: 38 lbs
Price: $3,682.20
Total: $3,682.20
Total weight: 38 lbs
20' Alpha S Series Electric Chain Hoist
Code: S-025x20
Brand: Elephant Lifting Products
Weight: 40 lbs
Price: $3,824.70
Total: $3,824.70
Total weight: 40 lbs
10' Alpha S Series Electric Chain Hoist
Code: S-05x10
Brand: Elephant Lifting Products
Weight: 44 lbs
Price: $4,393.56
Total: $4,393.56
Total weight: 44 lbs
15' Alpha S Series Electric Chain Hoist
Code: S-05x15
Brand: Elephant Lifting Products
Weight: 47 lbs
Price: $4,632.96
Total: $4,632.96
Total weight: 47 lbs
20' Alpha S Series Electric Chain Hoist
Code: S-05x20
Brand: Elephant Lifting Products
Weight: 50 lbs
Price: $4,871.22
Total: $4,871.22
Total weight: 50 lbs

About



* Standard pendant hangs approximately 2 less than the lift
* For lifts or PB control lengths other than standard lift, use the base adder prices above -start at standard lift
* Contact customer service for lift and pendant length limitations
* Standard power supply cord is 16.4
* Hoist feature "plug & play" quick connect wiring
* hoist comes standard with chain container suitable for lifting length

Motor Output                     A (in.)
Single Phase 300 watts        7
Single Phase 600 watts        9
Three Phase 5500 watts       8
