Features & Benefits
FAM TYPE : SINGLE SPEED, 3 PHASE DUAL VOLTAGE, MOTORIZED TROLLEY
- Tough, Heavy-Duty Motor: Elephants unique design for a lower power consumption.
- Reliable Electro-Magnetic DC Brake: The brake safety factor is more than 3 times of the rated load. A safe electromagnetic, power off brake type.
The safe power off brake holds a load when electric power is either accidentally lost, or intentionally disconnected. - Highly durable galvanized load chain manufactured in Japan by Elephant
- Totally Enclosed Steel Plate Construction
- Motorized Trolley
- Chain Bucket Hard plastic
- Limit switch Standard feature
- Ratings JIS/ISO M4, FEM 1AM, ASME H3 Motor, IP54 Hoist Protection, IP65 NEMA 4X Pendant Protection
- Temperature Range -10 to 40 C, 14 to 104 F
- CSA Compliant Hoist available upon request, excludes motorized trolley
- Emergency Stop Button - Standard Feature on Single Phase Units

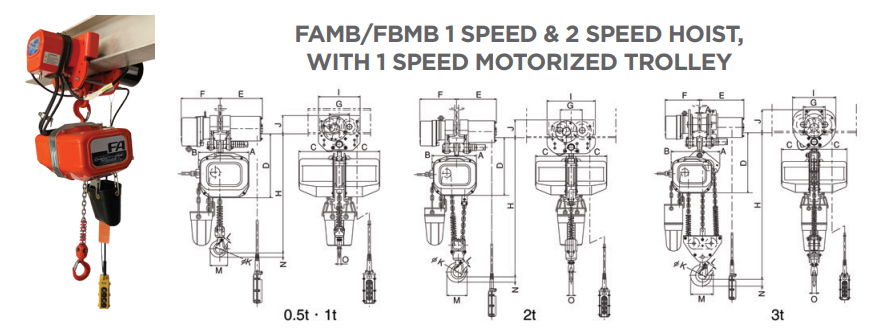

- Click Here to view expanded specifications image
Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| FAM-0-5x10 | 1/4 ton 10' FAM Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 163 | $7,537.68 | $7,537.68 | 163 | ||
| FAM-0-5x15 | 1/4 ton 15' FAM Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 168 | $8,015.34 | $8,015.34 | 168 | ||
| FAM-0-5x20 | 1/4 ton 20' FAM Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 173 | $8,171.52 | $8,171.52 | 173 | ||
| FAM-1x10 | 1 ton 10' FAM Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 192 | $8,673.12 | $8,673.12 | 192 | ||
| FAM-1x15 | 1 ton 15' FAM Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 197 | $8,845.26 | $8,845.26 | 197 | ||
| FAM-1x20 | 1 ton 20' FAM Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 202 | $9,016.26 | $9,016.26 | 202 | ||
| FAM-2x10 | 2 ton 10' FAM Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 229 | $9,268.20 | $9,268.20 | 229 | ||
| FAM-2x15 | 2 ton 15' FAM Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 238 | $9,561.18 | $9,561.18 | 238 | ||
| FAM-2x20 | 2 ton 20' FAM Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 247 | $9,855.30 | $9,855.30 | 247 | ||
| FAM-3x10 | 3 ton 10' FAM Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 324 | $11,613.18 | $11,613.18 | 324 | ||
| FAM-3x15 | 3 ton 15' FAM Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 336 | $11,858.28 | $11,858.28 | 336 | ||
| FAM-3x20 | 3 ton 20' FAM Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 348 | $12,262.98 | $12,262.98 | 348 | ||
| FAM-5x10 | 5 ton 10' FAM Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 428 | $15,034.32 | $15,034.32 | 428 | ||
| FAM-5x15 | 5 ton 15' FAM Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 448 | $15,653.34 | $15,653.34 | 448 | ||
| FAM-5x20 | 5 ton 20' FAM Series Single Speed Electric Chain Hoist | Elephant Lifting Products | 468 | $16,274.64 | $16,274.64 | 468 |
Purchase Below
1/4 ton 10' FAM Series Single Speed Electric Chain Hoist
Code:
FAM-0-5x10
Brand:
Elephant Lifting Products
Weight:
163
lbs
Price:
$7,537.68
Total:
$7,537.68
Total weight:
163
lbs
1/4 ton 15' FAM Series Single Speed Electric Chain Hoist
Code:
FAM-0-5x15
Brand:
Elephant Lifting Products
Weight:
168
lbs
Price:
$8,015.34
Total:
$8,015.34
Total weight:
168
lbs
1/4 ton 20' FAM Series Single Speed Electric Chain Hoist
Code:
FAM-0-5x20
Brand:
Elephant Lifting Products
Weight:
173
lbs
Price:
$8,171.52
Total:
$8,171.52
Total weight:
173
lbs
1 ton 10' FAM Series Single Speed Electric Chain Hoist
Code:
FAM-1x10
Brand:
Elephant Lifting Products
Weight:
192
lbs
Price:
$8,673.12
Total:
$8,673.12
Total weight:
192
lbs
1 ton 15' FAM Series Single Speed Electric Chain Hoist
Code:
FAM-1x15
Brand:
Elephant Lifting Products
Weight:
197
lbs
Price:
$8,845.26
Total:
$8,845.26
Total weight:
197
lbs
1 ton 20' FAM Series Single Speed Electric Chain Hoist
Code:
FAM-1x20
Brand:
Elephant Lifting Products
Weight:
202
lbs
Price:
$9,016.26
Total:
$9,016.26
Total weight:
202
lbs
2 ton 10' FAM Series Single Speed Electric Chain Hoist
Code:
FAM-2x10
Brand:
Elephant Lifting Products
Weight:
229
lbs
Price:
$9,268.20
Total:
$9,268.20
Total weight:
229
lbs
2 ton 15' FAM Series Single Speed Electric Chain Hoist
Code:
FAM-2x15
Brand:
Elephant Lifting Products
Weight:
238
lbs
Price:
$9,561.18
Total:
$9,561.18
Total weight:
238
lbs
2 ton 20' FAM Series Single Speed Electric Chain Hoist
Code:
FAM-2x20
Brand:
Elephant Lifting Products
Weight:
247
lbs
Price:
$9,855.30
Total:
$9,855.30
Total weight:
247
lbs
3 ton 10' FAM Series Single Speed Electric Chain Hoist
Code:
FAM-3x10
Brand:
Elephant Lifting Products
Weight:
324
lbs
Price:
$11,613.18
Total:
$11,613.18
Total weight:
324
lbs
3 ton 15' FAM Series Single Speed Electric Chain Hoist
Code:
FAM-3x15
Brand:
Elephant Lifting Products
Weight:
336
lbs
Price:
$11,858.28
Total:
$11,858.28
Total weight:
336
lbs
3 ton 20' FAM Series Single Speed Electric Chain Hoist
Code:
FAM-3x20
Brand:
Elephant Lifting Products
Weight:
348
lbs
Price:
$12,262.98
Total:
$12,262.98
Total weight:
348
lbs
5 ton 10' FAM Series Single Speed Electric Chain Hoist
Code:
FAM-5x10
Brand:
Elephant Lifting Products
Weight:
428
lbs
Price:
$15,034.32
Total:
$15,034.32
Total weight:
428
lbs
5 ton 15' FAM Series Single Speed Electric Chain Hoist
Code:
FAM-5x15
Brand:
Elephant Lifting Products
Weight:
448
lbs
Price:
$15,653.34
Total:
$15,653.34
Total weight:
448
lbs
5 ton 20' FAM Series Single Speed Electric Chain Hoist
Code:
FAM-5x20
Brand:
Elephant Lifting Products
Weight:
468
lbs
Price:
$16,274.64
Total:
$16,274.64
Total weight:
468
lbs
About
* Standard pendant hangs approximately 2 less than the lift* For lifts or PB control lengths other than standard lift,
use the base adder prices above -start at standard lift* Contact customer service for lift and pendant length limitations* Standard power supply cord is 16.4
* Standard power supply for electric trolley is 1.6"* S= single part chain* hoist comes standard with chain container suitable for lifting length
use the base adder prices above -start at standard lift* Contact customer service for lift and pendant length limitations* Standard power supply cord is 16.4
* Standard power supply for electric trolley is 1.6"* S= single part chain* hoist comes standard with chain container suitable for lifting length
