Features & Benefits
FB TYPE : DUAL SPEED, 3 PHASE DUAL VOLTAGE
- Tough, Heavy-Duty Motor: Elephants unique design for a lower power consumption.
- Reliable Electro-Magnetic DC Brake: The brake safety factor is more than 3 times of the rated load. A safe electromagnetic, power off brake type.
The safe power off brake holds a load when electric power is either accidentally lost, or intentionally disconnected. - Highly durable galvanized load chain manufactured in Japan by Elephant
- Totally Enclosed Steel Plate Construction
- Durable top and bottom hooks: Bottom hook with bearing smoothly swivels, 360. In the event of an overload, the hook gradually elongates.
This elongation serves as an indicator to the end user, making them aware of the overload. - Chain Bucket Hard plastic
- Limit switch Standard feature
- Ratings JIS/ISO M4, FEM 1AM, ASME H3 Motor, IP54 Hoist Protection, IP65 NEMA 4X Pendant Protection
- Temperature Range -10 to 40 C, 14 to 104 F
- CSA Compliant Hoist available upon request, excludes motorized trolley

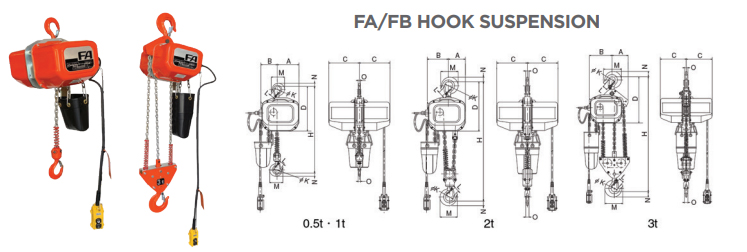

- Click Here to view expanded specifications image
Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| FB-050x10 | 1/2 ton 10' FB Series Dual Speed Electric Chain Hoist | Elephant Lifting Products | 97 | $4,813.08 | $4,813.08 | 97 | ||
| FB-050x15 | 1/2 ton 15' FB Series Dual Speed Electric Chain Hoist | Elephant Lifting Products | 103 | $4,984.08 | $4,984.08 | 103 | ||
| FB-050x20 | 1/2 ton 20' FB Series Dual Speed Electric Chain Hoist | Elephant Lifting Products | 108 | $5,174.46 | $5,174.46 | 108 | ||
| FB-1x10 | 1 ton 10' FB Series Dual Speed Electric Chain Hoist | Elephant Lifting Products | 126 | $6,111.54 | $6,111.54 | 126 | ||
| FB-1x15 | 1 ton 15' FB Series Dual Speed Electric Chain Hoist | Elephant Lifting Products | 131 | $6,300.78 | $6,300.78 | 131 | ||
| FB-1x20 | 1 ton 20' FB Series Dual Speed Electric Chain Hoist | Elephant Lifting Products | 136 | $6,512.82 | $6,512.82 | 136 | ||
| FB-2x10 | 2 ton 10' FB Series Dual Speed Electric Chain Hoist | Elephant Lifting Products | 143 | $6,567.54 | $6,567.54 | 143 | ||
| FB-2x15 | 2 ton 15' FB Series Dual Speed Electric Chain Hoist | Elephant Lifting Products | 152 | $6,883.32 | $6,883.32 | 152 | ||
| FB-2x20 | 2 ton 20' FB Series Dual Speed Electric Chain Hoist | Elephant Lifting Products | 161 | $7,192.26 | $7,192.26 | 161 | ||
| FB-3x10 | 3 ton 10' FB Series Dual Speed Electric Chain Hoist | Elephant Lifting Products | 185 | $8,123.64 | $8,123.64 | 185 | ||
| FB-3x15 | 3 ton 15' FB Series Dual Speed Electric Chain Hoist | Elephant Lifting Products | 198 | $8,537.46 | $8,537.46 | 198 | ||
| FB-3x20 | 3 ton 20' FB Series Dual Speed Electric Chain Hoist | Elephant Lifting Products | 210 | $8,950.14 | $8,950.14 | 210 |
Purchase Below
1/2 ton 10' FB Series Dual Speed Electric Chain Hoist
Code:
FB-050x10
Brand:
Elephant Lifting Products
Weight:
97
lbs
Price:
$4,813.08
Total:
$4,813.08
Total weight:
97
lbs
1/2 ton 15' FB Series Dual Speed Electric Chain Hoist
Code:
FB-050x15
Brand:
Elephant Lifting Products
Weight:
103
lbs
Price:
$4,984.08
Total:
$4,984.08
Total weight:
103
lbs
1/2 ton 20' FB Series Dual Speed Electric Chain Hoist
Code:
FB-050x20
Brand:
Elephant Lifting Products
Weight:
108
lbs
Price:
$5,174.46
Total:
$5,174.46
Total weight:
108
lbs
1 ton 10' FB Series Dual Speed Electric Chain Hoist
Code:
FB-1x10
Brand:
Elephant Lifting Products
Weight:
126
lbs
Price:
$6,111.54
Total:
$6,111.54
Total weight:
126
lbs
1 ton 15' FB Series Dual Speed Electric Chain Hoist
Code:
FB-1x15
Brand:
Elephant Lifting Products
Weight:
131
lbs
Price:
$6,300.78
Total:
$6,300.78
Total weight:
131
lbs
1 ton 20' FB Series Dual Speed Electric Chain Hoist
Code:
FB-1x20
Brand:
Elephant Lifting Products
Weight:
136
lbs
Price:
$6,512.82
Total:
$6,512.82
Total weight:
136
lbs
2 ton 10' FB Series Dual Speed Electric Chain Hoist
Code:
FB-2x10
Brand:
Elephant Lifting Products
Weight:
143
lbs
Price:
$6,567.54
Total:
$6,567.54
Total weight:
143
lbs
2 ton 15' FB Series Dual Speed Electric Chain Hoist
Code:
FB-2x15
Brand:
Elephant Lifting Products
Weight:
152
lbs
Price:
$6,883.32
Total:
$6,883.32
Total weight:
152
lbs
2 ton 20' FB Series Dual Speed Electric Chain Hoist
Code:
FB-2x20
Brand:
Elephant Lifting Products
Weight:
161
lbs
Price:
$7,192.26
Total:
$7,192.26
Total weight:
161
lbs
3 ton 10' FB Series Dual Speed Electric Chain Hoist
Code:
FB-3x10
Brand:
Elephant Lifting Products
Weight:
185
lbs
Price:
$8,123.64
Total:
$8,123.64
Total weight:
185
lbs
3 ton 15' FB Series Dual Speed Electric Chain Hoist
Code:
FB-3x15
Brand:
Elephant Lifting Products
Weight:
198
lbs
Price:
$8,537.46
Total:
$8,537.46
Total weight:
198
lbs
3 ton 20' FB Series Dual Speed Electric Chain Hoist
Code:
FB-3x20
Brand:
Elephant Lifting Products
Weight:
210
lbs
Price:
$8,950.14
Total:
$8,950.14
Total weight:
210
lbs
About
OPTIONAL OVERLOAD LIMIT DEVICE FOR THE FA AND FB HOISTS
Our new Torcon overload protection device is a slip clutch style. In the event of an overload, the device actuates and prevents the hoist from continuing to lift.
This mechanism protects the hoist from damage.
- MAS series motorized trolley, three phase, single speed, slower traversing speed, for combination with the FA series electric chain hoists
- MAF series motorized trolley, three phase, single speed, faster traversing speed, for combination with the FA series electric chain hoists
- MB series motorized trolley, three phase, dual speed, for combination with the FA series electric chain hoists
- Trolleys come with pivoting adapter for hook to hook type suspension or lug type suspension
WIRING - SIMPLE PLUG-IN TYPE CONNECTION
* For lifts or PB control lengths other than standard lift, use the base adder prices above -start at standard lift
* Contact customer service for lift and pendant length limitations
* Standard power supply cord is 16.4
