Features & Benefits
- High quality lifting clamps designed to pick and place prefabricated wall panels used in housing and building construction.
- Designed to lift panels from a horizontal to a vertical position only.
- Locking mechanism prevents the clamp from releasing while loaded.
- The 50 release rope allows the operator to release the clamp from the top of the panel once the load is set and secured.
- Lower lifting plate has an open design so it will clear nails or bolts.
- Complies with ASME standards.

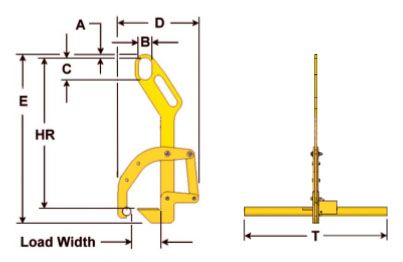

Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| WP-1.25-4/6 | 67-30 Model WP - Wall Pick (2,500 lbs. Rated Capacity) | The Caldwell Group | 53 | $2,768.00 | $2,768.00 | 53 | ||
| WP-1.25-8/12 | 67-31 Model WP - Wall Pick (2,500 lbs. Rated Capacity) | The Caldwell Group | 62 | $3,192.00 | $3,192.00 | 62 |
Purchase Below
67-30 Model WP - Wall Pick (2,500 lbs. Rated Capacity)
Code:
WP-1.25-4/6
Brand:
The Caldwell Group
Weight:
53
lbs
Price:
$2,768.00
Total:
$2,768.00
Total weight:
53
lbs
67-31 Model WP - Wall Pick (2,500 lbs. Rated Capacity)
Code:
WP-1.25-8/12
Brand:
The Caldwell Group
Weight:
62
lbs
Price:
$3,192.00
Total:
$3,192.00
Total weight:
62
lbs
About
WP-1.25-4/6 is designed for 2 x 4 or 2 x 6 wall construction.
WP-1.25-8/12 is designed for 2 x 8 to 2 x 12 wall construction.
