Features & Benefits

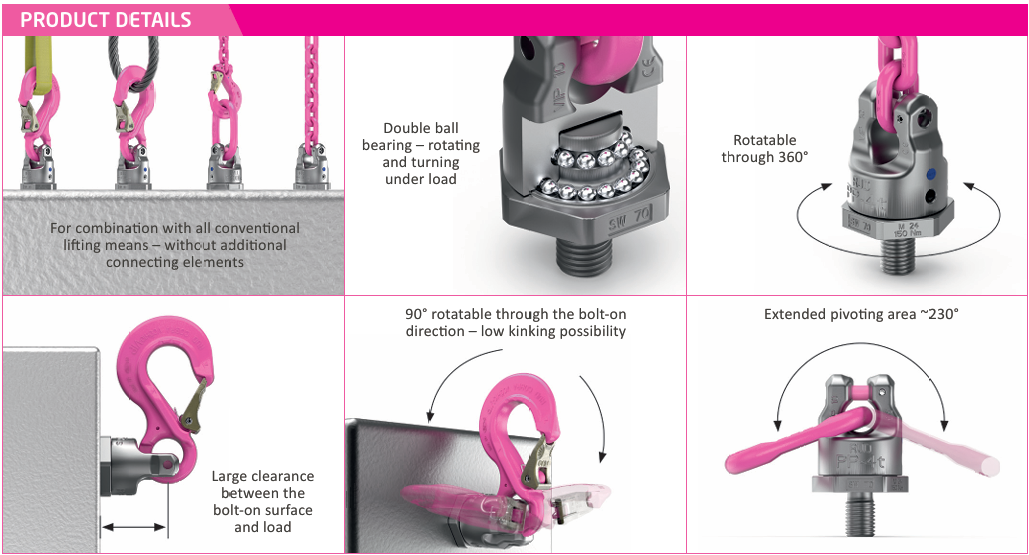

The first generation of lifting points with a double ball bearing for jerk - free turning, swiveling and tilting.
The optimised design prevents the lifting points as well as the load from being damaged.
Even under full load, can be turned in a 90 position from the bolt centre line. Not suitable for permanent swiveling under full load.
Maximum WLL with the smallest thread diameter. Thread length : 18 mm
Version PP-B: The ring connection for hook assemblies.
- Easy identification of WLL
- Loadable in any direction: Safety factor 4:1
- Double ballbearing for free turning and soft winding
- Cr, Ni, Mo-steel special quenched and tempered
- All parts 100% crack detectedl Max. load limit at smallest thread diameter
- Variable screw lengths available
- Can also be used for through holes
- Surface: pink powder coated
- Fast amortization because of easy handling
- Can be turned under full load even in a 90 position from the bolt centre line.
- Not suitable for permanent swivelling under full load
- *Not all sizes are stocked in the US.
Loadable in any direction
All RUD - CAD files available upon request.
DXF 2d CAD File
IGES 3D CAD File
STEP 3D CAD File
Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| 7989523 | PP-B-1.5t-M16 PP-B PowerPoint Ring/Eye Connection | RUD | 2 | $303.00 | $303.00 | 2 | ||
| 8600593 | PP-B-2.5t-3/4-10UNC PP-B PowerPoint Ring/Eye Connection | RUD | 2 | $369.29 | $369.29 | 2 |
Purchase Below
PP-B-1.5t-M16 PP-B PowerPoint Ring/Eye Connection
Code:
7989523
Brand:
RUD
Weight:
2
lbs
Price:
$303.00
Total:
$303.00
Total weight:
2
lbs
PP-B-2.5t-3/4-10UNC PP-B PowerPoint Ring/Eye Connection
Code:
8600593
Brand:
RUD
Weight:
2
lbs
Price:
$369.29
Total:
$369.29
Total weight:
2
lbs
