Features & Benefits
- Universal screw clamp for vertical and horizontal lifting as well as transporting a large variety of steel structures.
- The TSCC screw clamp is fitted with a moveable cam on the thread spindle which provides a powerful clamping force on the workpiece.
- Articulated lifting eye ensures an effective clamping force in every position.
- The hardness of the cam and pivot is suitable to lift material with a hardness of maximum 37 HRC/420 Brinell.
- Tightening forces (Depending on material, could vary): 0.5 TSCC - at least 10Nm (3.687 pound-foot, 44.25 pound-inch) 1 - 6 TSCC - at least 40Nm (25.815 pound-foot, 309.78 pound-inch)
- No minimum WLL

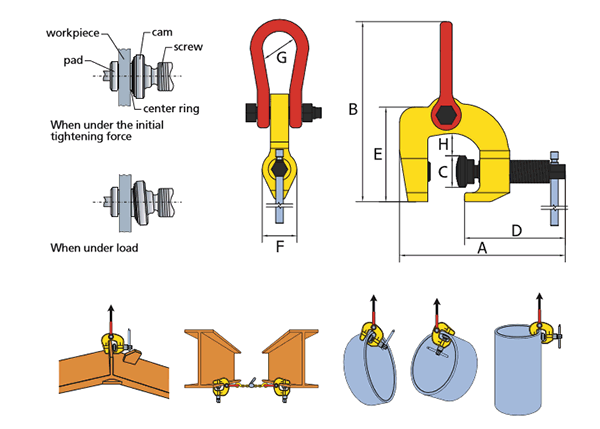

Technical Specs
Purchase Below
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| 900500 | 0.5 TSCC Screw Clamp | Terrier | 2 | $567.51 | $567.51 | 2 | ||
| 901000 | 1 TSCC Screw Clamp | Terrier | 7 | $806.92 | $806.92 | 7 | ||
| 901500 | 1.5 TSCC Screw Clamp | Terrier | 9 | $2,251.21 | $2,251.21 | 9 | ||
| 903000 | 3 TSCC Screw Clamp | Terrier | 16 | $919.85 | $919.85 | 16 | ||
| 906000 | 6 TSCC Screw Clamp | Terrier | 40 | $1,726.73 | $1,726.73 | 40 | ||
| 862711 | 1 TSCC-W Screw Clamp | Terrier | 7 | $1,874.68 | $1,874.68 | 7 | ||
| 862731 | 3 TSCC-W Screw Clamp | Terrier | 18 | $1,334.05 | $1,334.05 | 18 |
Purchase Below
0.5 TSCC Screw Clamp
Code:
900500
Brand:
Terrier
Weight:
2
lbs
Price:
$567.51
Total:
$567.51
Total weight:
2
lbs
1 TSCC Screw Clamp
Code:
901000
Brand:
Terrier
Weight:
7
lbs
Price:
$806.92
Total:
$806.92
Total weight:
7
lbs
1.5 TSCC Screw Clamp
Code:
901500
Brand:
Terrier
Weight:
9
lbs
Price:
$2,251.21
Total:
$2,251.21
Total weight:
9
lbs
3 TSCC Screw Clamp
Code:
903000
Brand:
Terrier
Weight:
16
lbs
Price:
$919.85
Total:
$919.85
Total weight:
16
lbs
6 TSCC Screw Clamp
Code:
906000
Brand:
Terrier
Weight:
40
lbs
Price:
$1,726.73
Total:
$1,726.73
Total weight:
40
lbs
1 TSCC-W Screw Clamp
Code:
862711
Brand:
Terrier
Weight:
7
lbs
Price:
$1,874.68
Total:
$1,874.68
Total weight:
7
lbs
3 TSCC-W Screw Clamp
Code:
862731
Brand:
Terrier
Weight:
18
lbs
Price:
$1,334.05
Total:
$1,334.05
Total weight:
18
lbs
