Features & Benefits
- For the horizontal lifting and transporting of steel and concrete pipes.
- Compact shape and relatively low unit weight with a high lifting capacity.
- The surface is equipped with special plastic.
- Terrier TPH clamps must be used in pairs.
- Plastic cover replacement parts are available and easy to change.

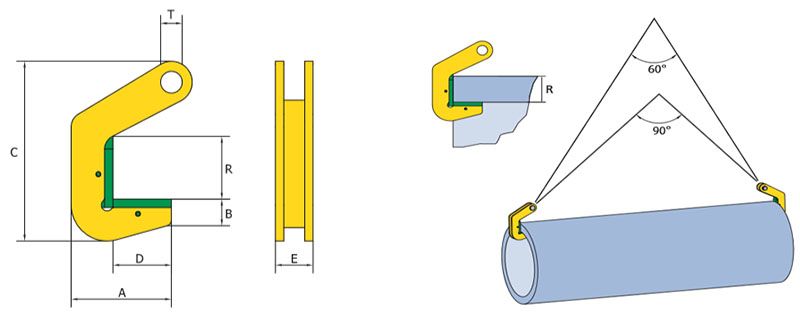

- If thickness of material to be lifted is less than R- the top angle must be between 0 - 60 maximum for a safe lift.
- If thickness of material to be lifted is equal to R- the top angle must be between 0 - 90 maximum for a safe lift.
TPH-HD Horizontal Lifting Clamps
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| 965050 | 5 TPH-HD Horizontal Lifting Clamp | Terrier | 16 | $1,637.99 | $1,637.99 | 16 | ||
| 965100 | 10 TPH-HD Horizontal Lifting Clamp | Terrier | 22 | $1,888.14 | $1,888.14 | 22 | ||
| 965200 | 20 TPH-HD Horizontal Lifting Clamp | Terrier | 31 | $2,108.67 | $2,108.67 | 31 | ||
| 965300 | 30 TPH-HD Horizontal Lifting Clamp | Terrier | 42 | $2,387.02 | $2,387.02 | 42 | ||
| 965600 | 60 TPH-HD Horizontal Lifting Clamp | Terrier | 78 | $3,152.24 | $3,152.24 | 78 |
TPH Horizontal Lifting Clamps
| Part Number | Description | Brand | Weight | Price | Quantity | Total | Total weight | |
| 960150 | 1.5 TPH Horizontal Lifting Clamp | Terrier | 4 | $276.66 | $276.66 | 4 | ||
| 960300 | 3 TPH Horizontal Lifting Clamp | Terrier | 4 | $312.28 | $312.28 | 4 | ||
| 960400 | 4 TPH Horizontal Lifting Clamp | Terrier | 7 | $397.21 | $397.21 | 7 | ||
| 960600 | 6 TPH Horizontal Lifting Clamp | Terrier | 7 | $443.76 | $443.76 | 7 | ||
| 960800 | 8 TPH Horizontal Lifting Clamp | Terrier | 8 | $578.01 | $578.01 | 8 | ||
| 960810 | 10 TPH Horizontal Lifting Clamp | Terrier | 11 | $654.72 | $654.72 | 11 | ||
| 960812 | 12 TPH Horizontal Lifting Clamp | Terrier | 14 | $732.80 | $732.80 | 14 | ||
| 960815 | 15 TPH Horizontal Lifting Clamp | Terrier | 22 | $1,271.07 | $1,271.07 | 22 | ||
| 960820 | 20 TPH Horizontal Lifting Clamp | Terrier | 36 | $1,510.76 | $1,510.76 | 36 |
TPH-HD Horizontal Lifting Clamps
Part Number |
Type |
Capacity/WLL per pair (lbs) |
Jaw-opening (R) (in.) |
Dimensions (in.) |
Weight (lbs) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|
A |
B |
C |
D |
E |
T | |||||
965050 |
5 TPH-HD |
11,00 |
2.36 |
10.67 |
3.35 |
9.06 |
3.94 |
.79 |
1.02 |
16 |
965100 |
10 TPH-HD |
22,000 |
2.36 |
10.67 |
3.35 |
9.06 |
3.94 |
1.18 |
1.02 |
22 |
965200 |
20 TPH-HD |
44,000 |
2.36 |
11.42 |
4.13 |
10.63 |
3.94 |
1.38 |
1.42 |
31 |
965300 |
30 TPH-HD |
66,000 |
2.36 |
12.20 |
4.53 |
11.54 |
3.94 |
1.57 |
1.69 |
42 |
965600 |
60 TPH-HD |
132,200 |
2.36 |
12.20 |
4.72 |
11.54 |
3.94 |
2.36 |
2.64 |
78 |
5 TPH-HD Horizontal Lifting Clamp
Code:
965050
Brand:
Terrier
Weight:
16
lbs
Price:
$1,637.99
Total:
$1,637.99
Total weight:
16
lbs
10 TPH-HD Horizontal Lifting Clamp
Code:
965100
Brand:
Terrier
Weight:
22
lbs
Price:
$1,888.14
Total:
$1,888.14
Total weight:
22
lbs
20 TPH-HD Horizontal Lifting Clamp
Code:
965200
Brand:
Terrier
Weight:
31
lbs
Price:
$2,108.67
Total:
$2,108.67
Total weight:
31
lbs
30 TPH-HD Horizontal Lifting Clamp
Code:
965300
Brand:
Terrier
Weight:
42
lbs
Price:
$2,387.02
Total:
$2,387.02
Total weight:
42
lbs
60 TPH-HD Horizontal Lifting Clamp
Code:
965600
Brand:
Terrier
Weight:
78
lbs
Price:
$3,152.24
Total:
$3,152.24
Total weight:
78
lbs
TPH Horizontal Lifting Clamps
Part Number | Type | W.L.L. per pair (lbs) | Jaw-opening (R) (inches) | Dimensions in inches | WEIGHT (lbs) pair | |||||
|---|---|---|---|---|---|---|---|---|---|---|
A | B | C | D | E | T | |||||
960150 | 1.5 TPH | 3,300 | 1.57 | 4.72 | 1.26 | 7.28 | 2.76 | 1.61 | 0.63 | 4 |
960300 | 3 TPH | 6,600 | 1.57 | 4.72 | 1.26 | 7.28 | 2.76 | 1.61 | 0.63 | 4 |
960400 | 4 TPH | 8,800 | 1.97 | 5.51 | 2.28 | 7.09 | 2.76 | 1.61 | 1.02 | 7 |
960600 | 6 TPH | 13,200 | 1.97 | 5.51 | 2.28 | 7.09 | 2.76 | 1.61 | 1.02 | 7 |
960800 | 8 TPH | 17,600 | 2.76 | 5.51 | 2.28 | 7.87 | 2.76 | 1.77 | 1.02 | 8 |
960810 | 10 TPH | 22,000 | 2.76 | 5.51 | 2.28 | 7.87 | 2.76 | 3.35 | 1.02 | 11 |
960812 | 12 TPH | 26,400 | 2.76 | 5.51 | 2.28 | 7.87 | 2.76 | 3.35 | 1.02 | 14 |
960815 | 15 TPH | 33,000 | 2.76 | 6.10 | 2.95 | 9.84 | 2.76 | 3.94 | 1.02 | 22 |
960820 | 20 TPH | 44,000 | 2.76 | 6.10 | 2.95 | 9.84 | 2.76 | 3.94 | 1.02 | 36 |
1.5 TPH Horizontal Lifting Clamp
Code:
960150
Brand:
Terrier
Weight:
4
lbs
Price:
$276.66
Total:
$276.66
Total weight:
4
lbs
3 TPH Horizontal Lifting Clamp
Code:
960300
Brand:
Terrier
Weight:
4
lbs
Price:
$312.28
Total:
$312.28
Total weight:
4
lbs
4 TPH Horizontal Lifting Clamp
Code:
960400
Brand:
Terrier
Weight:
7
lbs
Price:
$397.21
Total:
$397.21
Total weight:
7
lbs
6 TPH Horizontal Lifting Clamp
Code:
960600
Brand:
Terrier
Weight:
7
lbs
Price:
$443.76
Total:
$443.76
Total weight:
7
lbs
8 TPH Horizontal Lifting Clamp
Code:
960800
Brand:
Terrier
Weight:
8
lbs
Price:
$578.01
Total:
$578.01
Total weight:
8
lbs
10 TPH Horizontal Lifting Clamp
Code:
960810
Brand:
Terrier
Weight:
11
lbs
Price:
$654.72
Total:
$654.72
Total weight:
11
lbs
12 TPH Horizontal Lifting Clamp
Code:
960812
Brand:
Terrier
Weight:
14
lbs
Price:
$732.80
Total:
$732.80
Total weight:
14
lbs
15 TPH Horizontal Lifting Clamp
Code:
960815
Brand:
Terrier
Weight:
22
lbs
Price:
$1,271.07
Total:
$1,271.07
Total weight:
22
lbs
20 TPH Horizontal Lifting Clamp
Code:
960820
Brand:
Terrier
Weight:
36
lbs
Price:
$1,510.76
Total:
$1,510.76
Total weight:
36
lbs
